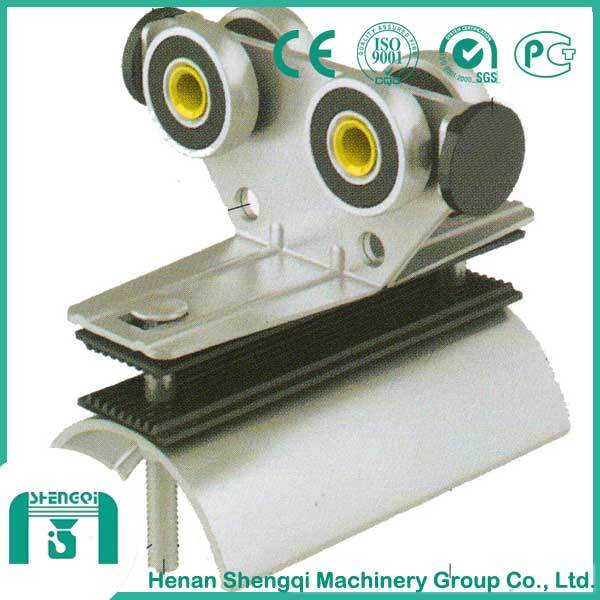

High Quality Crane Cable Trolley

High Quality Crane Cable Trolley

This series of I beam trolleys and components integrating our worldwide job proven flat cable provides a safe, efficient and maintenance free method of mobile electrification. The minimum bending radius permissible for lat cable is 5 times the thickness of the cable, thus allowing a considerably smaller bend radius compared to round cable of equal conductor size.

Application
High Quality Crane Cable Trolley
Crane manufacturing, hoist units, transport systems, special engineering, stacking systems, conveyor system, etc. C-rails are available in zinc-coated and stainless steel version (program 230 to 240). Special versions are available for explosion-proof areas.

Wheels	Ball bearings, hardened, galvanized Temperature resistance: -30C to +120C
	Travelling speed: ca. 300 m/min.
Material	Carrier body: steel, galvanized Support saddle: steel, galvanized Bumper: Neopne
	Dowel: steel, galvanized Hardware: galvanized
	Temperature resistance: -30°C to +120°C
Max. cable load	max.50KG	max.60KG	max.70KG
Dim. of Cable (mm)	max.75 Wx32δ	max.120 Wx60δ	max.150 Wx70δ
Weight(kg)	1.9	2.4	2.5
