2018 Promotional Mini Refrigerated Freezer Trucks 3tons for Transport Fresh Vegetable Fish Meat Drin

2018 promotional mini refrigerated freezer trucks 3tons for transport Fresh Vegetable fish meat drinks

A refrigerated truck is a closed box van that is used to transport frozen or fresh goods. A refrigerated truck is a refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated box.



Mini Refrigerator Trucks 3tons Technical Parameters

Cabin	Driving type LHD
	Foton cab ,with two seats, the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	4360x1600x2400
	Wheel base (mm)	2300
	Wheel track (front/rear) (mm)	1260/1340
	Approach/Departure angle(°)	12/22
Weight in KGS	Tare Weight	1800
	payload	1500~2000
	Front axles loading capacity	1x900
	Rear axles loading capacity	1x1610
Max. driving speed(km/h)		90
Engine	Brand	Quanchai
	Model	Diesel type engine
	Horse Power(HP)	68 HP
	Emission standard	Euro II
Tire	6.00-13 LT (7 pieces)
Refrigerating System	1, Box Size: 2190x1370x1270 mm2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 80mm;bottom 80 mm. 3, Working temperature is minus 15 celsius degree. Chinese famous brand refrigeration unit. 4, Rear door open

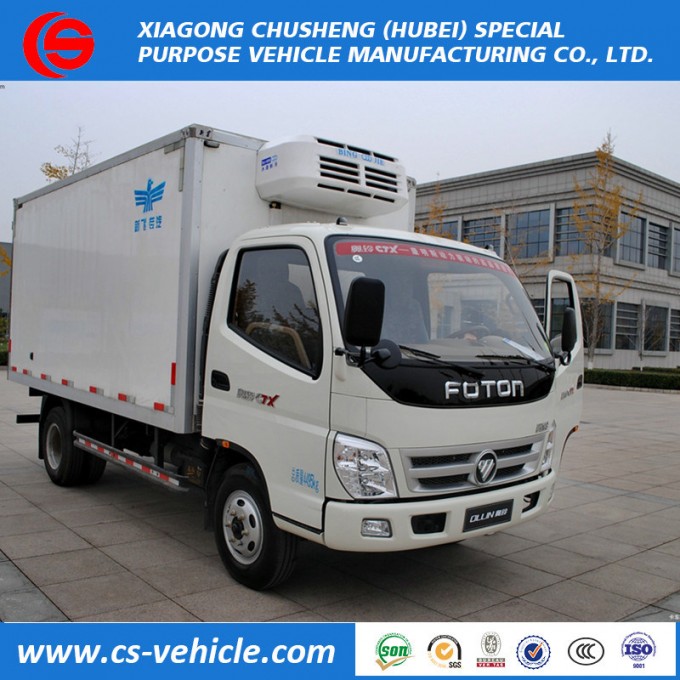

Detailed pics for mini refrigerated truck from different angle




Advantages of Insulated Freezer Van body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers avery good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat pservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

Different Payload refrigerated van truck we can do:



Relevant Products

1.Water Truck2.Insulation Truck and Milk Truck 3.Sewage Suction Truck4.Garbage Truck

5.Manlift Truck/Aerial Platform Truck6.Truck with Crane 7.Fuel Truck/8.Chemical Truck

9.Bulk Cement Truck10.Concrete Mixer Truck11.Fire Truck12.Dump Truck

13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed

16.Tractor 17.LPG Truck 18.Trailers

Company Information

1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China.

We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
