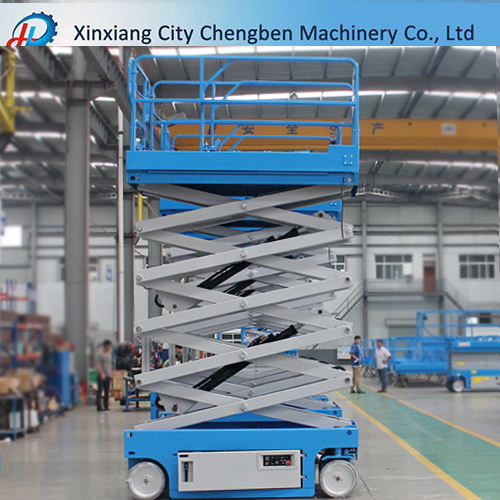

| scissor designed hydraulic lift table cart with joystick |
| product psentation |
| hydraulic lift table cart is widely used to workshop buildingsite, hotel, airport, station, dock, palaestra and so on.Mainlyused to installing, repairing and cleaning high aerial equipment,power equipments, overhead pipeline and so on.It is an ideal equipment for guaranteeing working safe,improving working efficiency . |
| Our advantages | ||
| Our products | Others' products | Our advantage |
| Hydraulic drive | Electric drive | Strengthen the step-lessspeed change capacity, improve utilization of power |
| Minimum distance control between chassis and ground | No such function | When down the platform, minimum distance between chassisand ground can reach 100mm, ensure the whole platform has strong trafficability; when up the platform, distance between chassis andground will be intelligentlycontrol to 20mm, ensurechassis safe and stable during work |
| Emergency down system | Simple assembly, low reliability | High quality emergency brake, make the platform easily and smoothly downface emergency scene, ensure workers' safety. |
| The tilt protection system | Semi automatic, mechanical or no such function | Intelligent design system, make the platform in aintelligent protection condition in face of bumpy , the uneven or sloping ground, ensure the life safety of operation personnel |
| Percentage control system | Traditional cable transmission | Less cable limitation, easy for maintenance and reduce energy loss. |
| Simple platform control panel | Traditional and complex control panel | Humanized operate panel providing easy, efficient and sensitive operation experience |
| Charging protection system | Ordinary charger | Intelligent charger, pcise control of the whole process of charging current, voltage |
| Feature Explanation | |
| Excellent mobility | Compact body can easily pass through single channel and double channel ,use non-marking solid tire Special locations |
| Special Locations | Feature of low noise is perfect suitable for the noise sensitive environment ,such as office buildings ,shopping malls ,hotels ,schools and so on. |
| Compact and flexible | Most models are equipped with zero-radius turning system ,can be easily and flexibly operated in crowed spaces ,such as cramped buildings ,elevator and narrow corridor ,etc .Up-down ,left-right ,forward-backward, turning ,movements can be easily operated by one person |
| Easy maintaining | Random fault diagnosis system can immediately detect the faults ,can be repay type battery trays make it easy to repair the power generator. |
| The min clearance control ofchassis | When lowered the platform, chassis can reach 100 mm minimum clearance from the ground,to ensure that the platform as awhole has astrong through, when the platform rises chassis ground decreased to 20 mm minimum clearance automatically by the intelligent control, to ensure the safety of the chassis while working stability. |
| Emergency descent system | High quality and high pcision pssure relief valve cylinder, under astate of emergency (such as electricity) can make the platform steady fall easily, to ensure the safety of the staff of life. |
| Proportion of intelligent control | Reduce the wiring harness, reduce energy losses, make smooth control accuracy. |
| Slope protection system | Intelligent design of the machine, the platform in potholes, the tilt or uneven ground in intelligent protection condition, ensure the life safety of the operator. |
| Simple platform control equipment | Human nature of easy to use control panel, provide efficient and sensitive operation experience. |
| security assurance |
| 1.Control voltage is DC24V.Keeping working person safe. 2.Electrical control box is water-proof design. 3.Installing Emergency button,Can keeping working person safe. 4.Self-locking funtion will work when electricity is suddenly cut off. 5.System have Emergency drop valve,which can let platform down safely. |
| Model | GTJZ06 | GTJZ08B | GTJZ10A | GTJZ10B | GTJZ12 | GTJZ14 |
| Working Height | 6.0m | 8.0m | 9.8m | 10.0m | 11.8m | 14m |
| Platform Height | 4.0m | 6.1m | 7.8m | 8.2m | 9.8m | 12m |
| Capacity | 270kg | 320kg | 320kg | 450kg | 450kg | 350kg |
| Platform dimension | 2.3*0.77m | 2.3*0.85m | 2.3*0.85m | 3.22*1.2m | 2.65*1.15m | 3.22*1.2m |
| Length | 1.88m | 2.3m | 2.3m | 2.45m | 2.56m | 2.55m |
| Height | 1.9m | 2.25m | 2.38m | 2.26m | 2.4m | 2.5m |
| Width | 0.77m | 0.85m | 0.85m | 1.2m | 1.15m | 1.2m |
| Weight | 1335kg | 2005kg | 2180kg | 2330kg | 1500kg | 3350kg |
| Grade ability | 25% | 25% | 25% | 25% | 25% | 25% |
| 1.What should Iprovide when inquiry? A: Max. platform height or working heightB: Lift capacity | Any question pls feel free to contact Ms. Julia at any time. Thanks! Office No.: +86 373 5895178 Web: www.crane-lifts.com /www.cn-cbjx.com |
| 2.Are the products customized? Yes,the lift platform can be customized according to your using condition andrequirements | |
| 3.Platform fault The accessories are free in the period of warranty if it is the quality problems | Our delivery is Efficient ,Reliable ,and prompt! Electric parts are packed by strong |
| delivery is Efficient ,Reliable ,and prompt! | |
| Packaging Detail: | .Electric parts are packed by strong plywood crate, .others packaged in polythene woven cloth. .Or according to customer's requiment |
| Delivery Detail: | · If the size is suitable for container ship, usually by container; · If the size is too big, usually by bulk ship or by container after truncation; |
