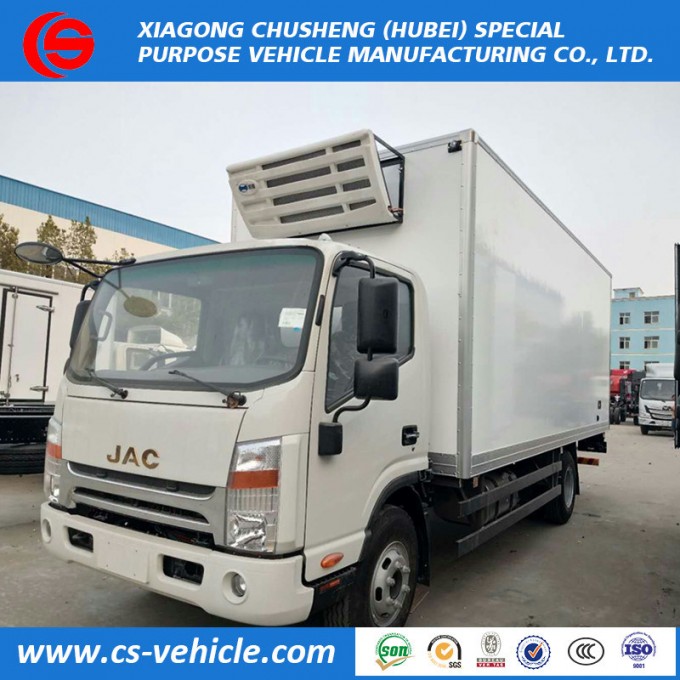

JAC Refrigerator Cooling Van, Mobile Cold Room, Refrigerated Truck 5tons for Sale

JAC Refrigerator Cooling Van, Mobile Cold Room, Refrigerated Truck 5tons For Sale

Refrigerator truck:
Refrigerated truck is a full sealed van used to transport the frozen food or fresh goods, and is also kind of special transportation vehicle equipped with refrigeration unit device and polyurethane thermal insulation box.
Transportation category:
Refrigerator truck is often used to transport frozen food, dairy products, fruits and vegetables, vaccine and drug etc.
Construction:
Refrigerator truck is mainly consists of chassis,heat insulation box body,refrigeration unit,temperature recorders in the carriage.
For special purpose,optional parts including meat hook,aluminum alloy rail,ventilation channel etc.
Refrigeration unit classification:
non independent refrigeration unit,independent unit,the domestic units and imported units.Usually using external refrigerator,
for a few mini refrigerated truck,using internal refrigerator.
Choice for insulated body:
good thermal insulation property,light weight,not easy to be damaged.
Vehicle classification:
According to the different chassis model, we have minitype,middle-sized,large-scale etc refrigerator trucks for your choise with different brands.
Vehicle steering direction:
RHD or LHD is available.



JAC Refrigerator Trucks 5tons Technical Parameters

Cabin	Driving type LHD
	Foton cab ,with two seats, the front as attached photo for ref.
Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	4360x1600x2400
	Wheel base (mm)	2300
	Wheel track (front/rear) (mm)	1260/1340
	Approach/Departure angle(°)	12/22
Weight in KGS	Tare Weight	1800
	payload	1500~2000
	Front axles loading capacity	1x900
	Rear axles loading capacity	1x1610
Max. driving speed(km/h)		90
Engine	Brand	Quanchai
	Model	Diesel type engine
	Horse Power(HP)	68 HP
	Emission standard	Euro II
Tire	6.00-13 LT (7 pieces)
Refrigerating System	1, Box Size: 2190x1370x1270 mm2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 80mm;bottom 80 mm. 3, Working temperature is minus 15 celsius degree. Chinese famous brand refrigeration unit. 4, Rear door open

Detailed pics for JAC refrigerated truck from different angle




Advantages of Insulated Freezer Van body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers avery good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat pservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

Different Payload refrigerated van truck we can do:



Cooling Van Box details


Customer reference
