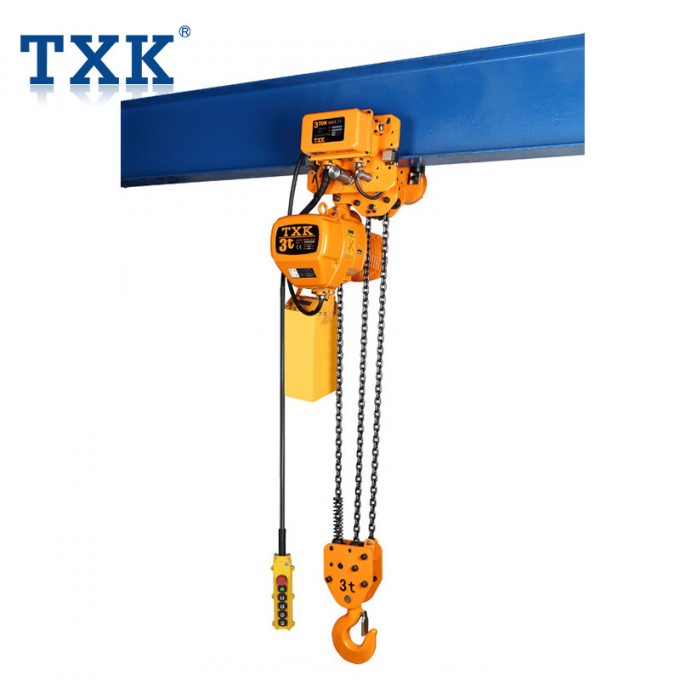

Single Speed 3 Ton Polipasto Electrico with Electric Trolley

Single speed 3 Ton polipasto electrico with electric trolley





Technical Parameters:

SIngle Speed
Model	SSDHL
	0.5-01S	01-01S	1.5-01S	02-01S	02-02S	2.5-01S	03-01S	03-02S	03-03S	05-02S
capacity(t)	0.5t	1t	1.5t	2t	2t	2.5t	3t			5t
Lifting speed(m/min)	7.2	6.6	8.8	6.6	3.3	5.4	5.4	4.4	2.2	2.7
Motor power(Kw)	0.8	1.5	3	3	1.5	3	3	3	1.5	3
Rotation speed(r/min)	1440
Insulation grade	F
Power supply	3P 220V-690V
Control voltage	24V/36V/48V
No. of chain	1	1	1	1	2	1	1	2	2	2
Spec. of load chain	Φ 6.3	Φ 7.1	Φ 10.0	Φ 10.0	Φ 7.1	Φ 11.2	Φ 11.2	Φ 10.0	Φ 7.1	Φ 11.2
Net weight(Kg)	47	61	108	115	73	115	122	131	85	151
Dual Speed
Model	SSDHL
	0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
capacity(t)	0.5t	1t	1.5t	2t	2t	2.5t	3t			5t
Lifting speed(m/min)	7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.4/1.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor power(Kw)	0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Rotation speed(r/min)	1440
Insulation grade	F
Power supply	3P 220V-690V
Control voltage	24V/36V/48V
No. of chain	1	1	1	1	2	1	1	2	2	2
Spec. of load chain	Φ 6.3	Φ 7.1	Φ 10.0	Φ 10.0	Φ 7.1	Φ 11.2	Φ 11.2	Φ 10.0	Φ 7.1	Φ 11.2
Net weight(Kg)	54	74	144	150	86	148	159	168	102	184

Workshop:



Packaging & Shipping:

Plywood casesare neatly placed in the workshop, and each plywood case comes with operating instruction, inspection report, packing order.
When you order 3 sets or more quantity,we usually use a pallet to pvent the goods from damage.This will be easy to arrange shipment.



Certifications:

We provide quality, safe and stable products to meet the highest industrial standards.We are ISO9001: 2008 and TUV certified manufacturer, our products are CE, GS, SGS certified, serving all spheres of industry in the world.



Application Places:

Our products are widely used in industry and manufacturing industry and other special purpose, such as mold, wind power, logistics, railway, shipbuilding, bridge construction, factory assembly line, mechanical maintenance platform etc.



TXK Brand:

1.Electric hoist from 0.25 tons to 50 tons,
2.Manual Chain Hoist from 0.25 tons to 20 tons,
3.Manual Lever Block from 0.25 tons to 9 tons.
4.Crane series.
5.Related Lifting Equipment(Lifting Clamp,Trolley,Hand Pully Block,Hand Winch...)
6.Pendant Control and Remote Control
