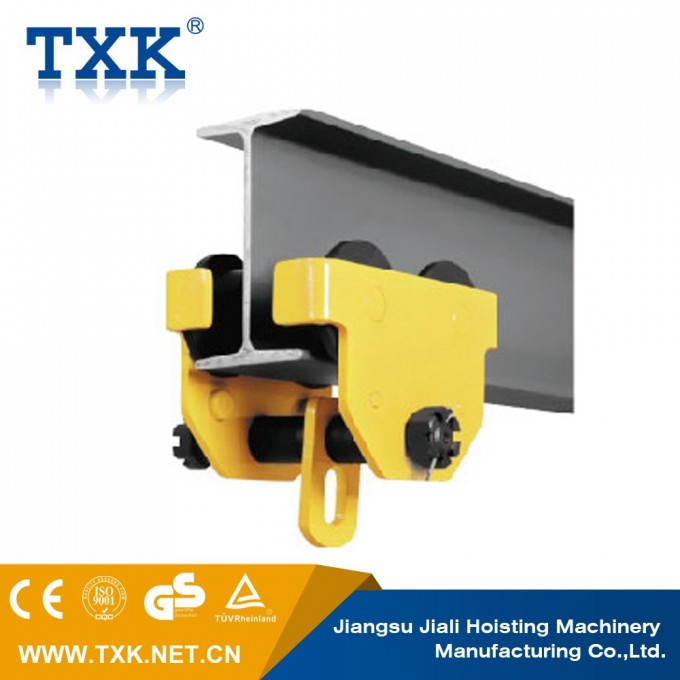

Txk Brand Plain Trolley/Manual Trolley

Manual Pulley, Plain trolley, Plain Crawl, Manual Crawl
Model: PT5
Capacity(ton):5
Minimum radius of turn(m): 5
Net Weight (kg): 24

Designed to function on both flat and minor irregular beams surface like I-beam and H-beam
Easy installation and on-site operations
Dual tread iron wheels with high quality sealed ball bearing
Heavy rolled steel side plates with a universal hanging eye, can be coupled closely to most hoists.

Manual TrolleyManual Crawl Plain trolleyspecifications and drawing:

PlainTrolley Technical Parameters
Model	Capacity	I-Beam recommended B(mm)
			N.W.(kg)
PT1	1.0	64-140	8.7
PT2	2.0	76-165	10.4
PT3	3.0	76-203	24
PT5	5.0	88-203	36
PT10	10.0	125-203	83

FAQ

Q: What is MOQ?
A: MOQ can be 1 set

Q: How about your payment terms?
A: We accept T/T and L/C at sight

Q: What is the sample policy?
A: We can send you 1pcs sample for your test, but you need to pay the fees

Q: What is your after sales service?
A: We have engineers to fix any problem about TXK Hoists sold overseas.

Q: What about warranty?
A: We supply 1 year warranty for electric part and 2 years for mechanical part.

Q: Do you support OEM service?
A: Yes
