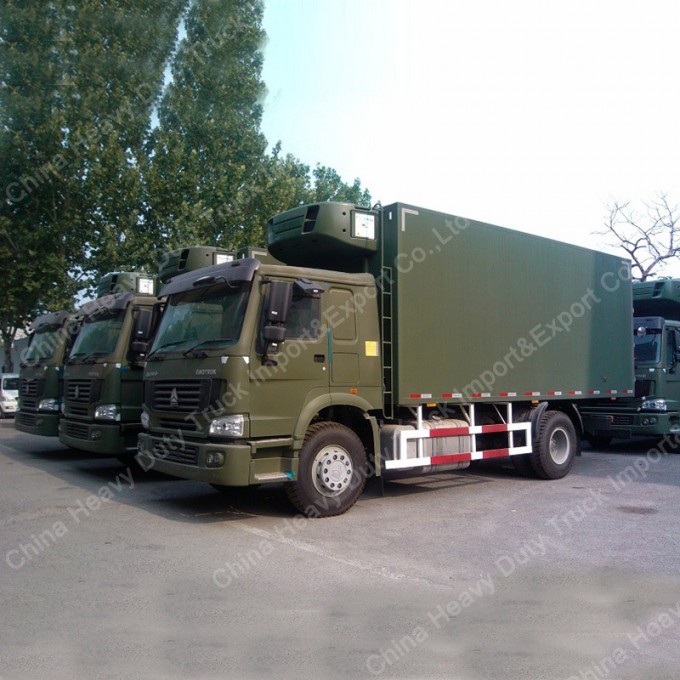

Sinotruk HOWO 4X2 Medium Refrigerated Truck

Our main Overseas Business Scope:
- All types of heavy duty truck
- Special modified vehicle
- All types of semitrailer
- Construction equipment&Machinery
- Pickup, VAN, Bus
- Spare parts- Service & Maintenance
Our complete selling system including sale, spare parts sale, after-sale service and customer service.

1. Refrigerated Truck Main Specifications:

Vehicle Main Dimensions	Overall dimensions (L x W x H)mm	8500*2500*3900
	Wheel base (mm)	4600
	Wheel track (front/rear) (mm)	2020/1830
	Approach/Departure angle(°)	16/15
Weight in KGS	Tare Weight	12500
	payload	26500
	Front axles loading capacity	1x7000
	Rear axles loading capacity	16000
Max. driving speed(km/h)		90
Engine	Brand	SINOTRUK
	Model	WD615.69
	Type	4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling
	Horse Power(HP)	336
	Emission standard	Euro 2
Gearbox	HW19710, 10-speed Forwards gear & 2 reverse gear
Tire	12R22.5 tubeless tyre with one spare
Brakes	Service brake: dual circuit compssed air brake Parking brake :(emergency brake): spring energy, compssed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
Refrigerating System	1, Box Size: 7500mm*2500mm*2500 mm, 2,Box Material, glass epoxy in the surface, foam in the middle , side ,top ,front ,rear thickness 95mm;bottom 102 mm. 3, Working temperature is minus 18 celsius degree. American brand Independent refrigeration unit. 4, Rear door open, one side door .

2. Our Factory
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.

3. Packing: Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO


4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as a manufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions

5. FAQ
Q1. : Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A: Yes, we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q 3 : How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q 4 : Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q 5 : What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles. We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.


6. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.


7. Company information
China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staff of our company can provide the trucks meeting the requirement of customers at the best price. We have many years of experience in exporting trucks. If you want to buy any truck, trailer or truck parts,please contact us!
We sincerely hope to cooperate with you to expand market in your country!
