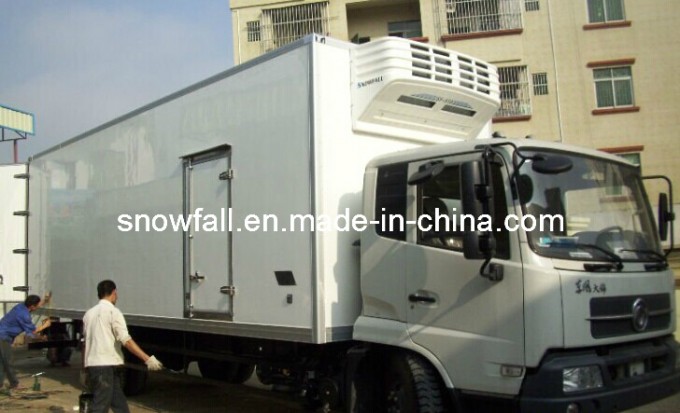

Fiberglass Refrigerated Truck Body/Freezer Truck

Refrigerated truck body



1.Material & performance


(1)New type FRP was used as outter and inner skin.


(2)The panel used for the van was constructed in type of sandwich. The middle layer of the sandwich is a

kind of new typeextruded polystyrenefoam.which offers a very good thermal insulation performance.


(3)The sandwich panel is fixed to the steel frame with high strength adhesive andrivet.





2. Construction


(1)The van is built in a full close structure. All panels are adhered with high strength structural adhesive to

achieve the most reliable conjunction, sealing and insulation properties.


(2)This structure is also easy and fast to be assembled.



3.Specification


(1)The door panel is produced by a high accuracy process with imported sealing rubber to keep good airtight and thermal insulation.


(2)The inside and outside of the van are decorated with special aluminum alloy profiles or stainless steel edge,steinless steelor FRP corner, and steinless steel or galvanized hinge/lock/hanger.


(3)There are protection guardrails in both sides and end of the van. Various lights are installed as well. The whole body is beautiful, harmony, strong, liable and durable.


(4) Reinforced floor design adopts high quality figured aluminum floor panel to ensure the loading capacity, strong and wearing resistant as well as easy to load or unload.


(5) The van can be designed according to customers requirement to select material and design the structure as well as to install refrigerators.


(6) Interior compartments can be made to meet the different requirement of temperature in the same van.




4.Main properties;


(1)Light in weight: 30-40% lighter than domestic traditional products.


(2)Thermal insulation properties: The coefficient of heat conductivity of fiberglass reinforced plastics face panel is about 0.20W/M².K, the coefficient of heat conductivity of hard polyurethane foam is 0.018-0.028W/M².K, and the K #118alue of overall coefficient of heat transference can be below 0.3W/M².K.


(4)Impermeability properties: Both sides of FRP panel possess excellent water impermeability and water resistance.



(5)Fire retardant performance: It conforms to the national standard B1 level.


(6)Service life: 4-6 times longer than domestic traditional products.

(7)Easy maintainability: There is no trace on the panel after repair, which is more competitive than steel and aluminum panels.

(8)Environmental protection properties: There is no volatile and corrodible substance on surface of fiberglass reinforced plastics. And the panels are sandwiched withextruded polystyrenefoam plastic without fluorine. It is green environmental protection product.

(9)Refrigerator groups made in USA or German or China can be adopted according to customer's selection to meet different refrigeration property requirements.
