(Wb5009) Wheel Barrow

1. PRODUCT SPECIFICATION:

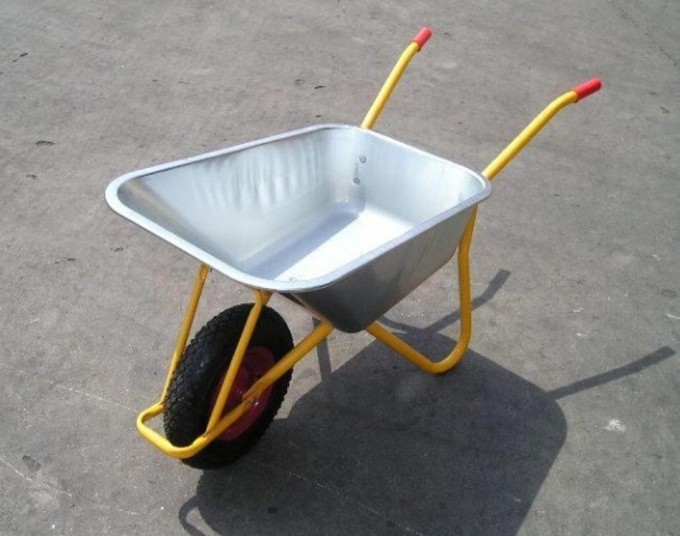

Wb5009 Galvanize Tray Wheel Barrow


Specification:

1, Model: WB5009
2, Water capacity: 72L
3, Sand capacity: 5CBF
4, Load capacity: 200kgs
5, Wheel: 16''*400-8A
6, L/H/C/A/B/h; 1390*680*583*860*595*250mm
7, Qty; 900PCS/20GP


Model: WB6001
Load: 150kg
Water Capacity: 95 L
Sand Capacity: 6 CBF
Wheel: 16x6.50-8 air
Packing: 700PCS/40' HQ

Model: WH5400
Load: 160kg
Weight: 11.7KG
Water Capacity: 78L
Sand Capacity: 5CBF
Wheel: 14"x4"A
Body Size: 1450x490x520mm
Tray Size: 895x642x298mm
Packing: 1500PCS/20'GP


Model: WB8611
Load: 150kg
Water Capacity: 100L
Sand Capatity: 7CBF
Wheel: 16"x4"
Body Size: 1500x505x565mm
Tray Size: 980x635x295mm
Packing: 900PCS/40'GP


Model: WB7808-1
Wheel barrow Load: 160kgs
Water capatity: 100L
Sand capatity: 7CBF
Wheel: 4.00-8


Model: : Wheelbarrow WB7801
1. Load Capacity: 200kg
2. Water Capacity: 100L
3. Sand Capacity: 7CBF
4. Wheel: 16''*4.00-8 Air


Model: WB7601
Load: 160kg
Water Capacity: 90L
Sand Capacity: 7CBF
Wheel: 4.00-8
Body Size: 1640x500x575mm
Tray Size: 1025x680x270mm
Packing: 600PCS/20'GP; 1200PCS/40'GP

Model: WB5600
Load: 100kg
Water Capacity: 72L
Sand Capacity: 5CBF
Wheel: 4.00-8
Body Size: 1490x585x505mm
Tray Size: 1090x600x270mm
Packing: 1600PCS/40'HQ

Model: WB6424S
Load: 150kg
Water Capacity: 85L
Sand Capacity: 5.5CBF
Wheel: 4.00-8
Body Size: 1450x585x590mm
Tray Size: 946x612x325mm
Packing: 1200PCS/40'HQ

2. about US:


1). Factory:

We one of the most professional leading factory in China of hand tool carts.

Specialized in Weelbarrow, Roll cage, Hand truck(Hand trolley), rubber wheel and so on.


2). Our market:

Russia, USA, Cananda, Brazil, South Africa, Turkey, Egyp, UAE, Indonesia, Malaysia, Spain, France, Peru, Angol, Mozambiqu, India and so on more than 50 countries.

3) Aftersale services:

We would be responsible that as long as you have any problems.


4) More specification about wheelbarrow:

A). Tray of wheel barrow:

Tray thickness: 0.5~1.0mm
Tray material: Plastic tray, steel Tray and metal tray, with the surface galvanized or powder coating.
Color: Dark green, red, blue, black, or the color you like
.
.
B). Handle pipe thickness: 1.2mm/1.5mm/1.8mm/2.0mm
...Straight and bending handle
...Material: Steel and wooden handle
...Shape: Square and cylinder handle
.
C). Leg thickness: 1.5mm/1.8mm/2.3mm

D). Wheel:
Type: Solid wheel, Pneumatic wheel and PU foaming tyre
Color: Mostly is black, also red, yellow, blue are available

E). Packing:
In bulk,
50/pallet,
1pc/carton
Or according to your request


Please tell me (Summer) your specific request, the newest offer will be followed within 2 hours during working days.

Welcome to visit our plant and office in any time! I ( Summer) will show you around our plant.


The Wheel barrow catalog we can do as bellow:
