Popular Sinotruck HOWO 4X2 Refrigerated Cold Room Van Trucks 5tons Price

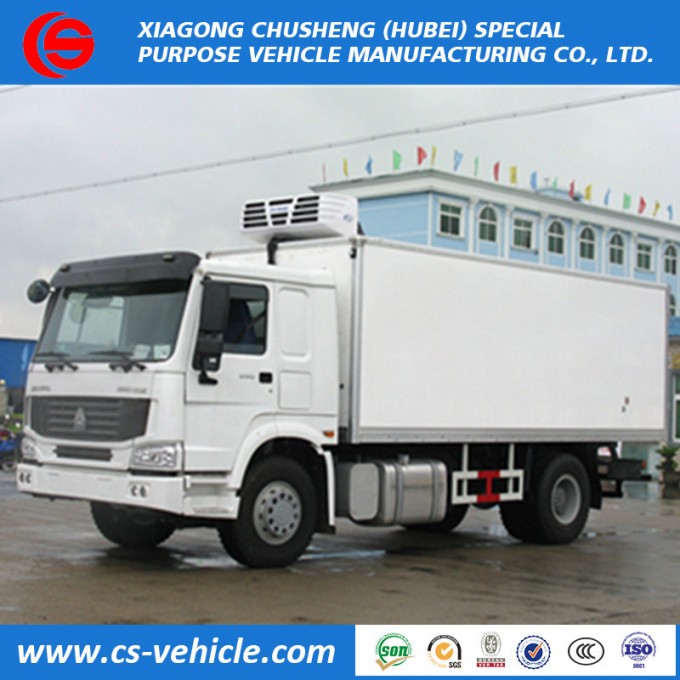

Popular Sinotruck HOWO 4X2 refrigerated cold room van trucks 5tons price

A refrigerated truck is a closed box van that is used to transport frozen or fresh goods. A refrigerated truck is a refrigerated transport vehicle equipped with a refrigeration unit and a polyurethane insulated box.



Refrigerator Van Truck Technical Parameters

Item No.	Parameters
Overall Dimension	8995×2440×3550 (mm)
Gross Vehicle Weight	15995 kg
Curb Weight	5995 kg
Loading Weight	10,000 Kg
Wheel base	5200 mm
Front/rear Tread	1240/2555mm
Approach/Departure Angle	17/20 degree
Front Axle	5355 kg
Rear Axle	10640 kg
Engine	4110 Yucai engine
Engine horsepower	160 HP EURO II
Max Driving Speed	95 km/h
Cabin	3 Passenger allowed
Tire	9.00R20 (6 pieces)
Van Box Size	6800×2300×2300
Tank Material	Strong Fiberglass Inner and Outer Wall, with 80mm Middle Polyfoam Insulation.
Refrigerator	High Quality Hanxue Refrigerator, Lowest Cooling Temperature negative 10 centi-degree

Detailed pics for refrigerated van truck from different angle



Advantages of Insulated Freezer Van body

1. It is made of GRP and PU foam with all-closed structure that the GRP (Glass Reinforced Plastic Fiber) outside and PU foam in the core.

2. Light in weight: 40% lighter than metal body.

3. Non-corrosion, non-pollution, anti-brine, acid and soda-resisting.

4. The panel used for the truck body was constructed in type of sandwich. The thermal insulation layer is 50-80mm thick, which offers avery good thermal insulation performance.

5. Length of Cargo body: 10-40 inch; Capacity of Cargo body: 5-70CBM. The material of the cargo body is optional according to which kinds of goods the truck transport, with perfect heat pservation, box open model: Rear double-open or Side-open.

6. Refrigeration unit Brand Optioanl: American CARRIER, THERMO KING. South Korea hanya. China Songhan, hanxue, etc. The Temperature range can be 0° C~ -20° C. The refrigeration units that we select have simple structure, convenient operation, reliable working, low energy consumption, large refrigerating capacity, small noise, easy installation and maintenance and other advantages.

Different Payload refrigerated van truck we can do:
