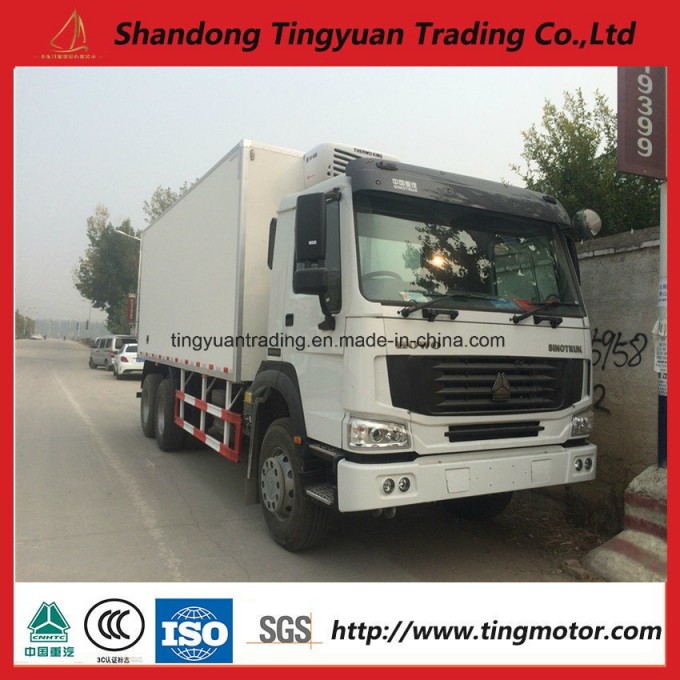

6X4 HOWO refrigerator truck | |||||||
Cabin | HOWO 76 Standard Cab (LHD or RHD) | ||||||
With two bunks, 70° hydraulically tillable to the front as attached photo for ref. | |||||||
Vehicle Main Dimensions | (L x W x H)mm | 10100x2500x3960 | |||||
Wheel base (mm) | 4600+1350 | ||||||
Wheel track (front/rear) (mm) | 2022/1830 | ||||||
Approach/ Departure angle(°) | 12/16 | ||||||
Weight in KGS | Tare Weight | 11000 | |||||
Loading Capacity | 30000 | ||||||
Front axles loading capacity | HF9 1x9000 | ||||||
Rear axles loading capacity | HC16 2x16000 | ||||||
Max. driving speed(km/h) | 102 | ||||||
Engine | Brand | Sinotruk | |||||
Model | WD615.69 | ||||||
Type | 4-stroke direct injection , 6-cylinder in-line with water cooling, turbo-charging and inter-cooling | ||||||
Horse Power(HP) | 336HP/371HP | ||||||
Emission standard | Euro II | ||||||
Gearbox | HW19710, 10 Forwards gear & 1 reverse | ||||||
Clutch | Reinforced diaphragm clutch, diameter 430mm | ||||||
Steering Gear | ZF 8098,power steering, hydraulic steering with power assistance | ||||||
Fuel tank (L) | 400 | ||||||
Tire | 12R22.5 tire , 10 pieces with one spare tire | ||||||
Brakes | Service brake: dual circuit compssed air brake | ||||||
Parking brake: (emergency brake): spring energy, compssed air operating on rear wheels | |||||||
Auxiliary brake: engine exhaust valve brake | |||||||
Refrigerator Body | |||||||
Thickness | Side | 95mm | |||||
Side door | 95mm | ||||||
Front | 95mm | ||||||
Top | 95mm | ||||||
Back door | 95mm | ||||||
Bottom | 102mm | ||||||
Size | (L x W x H) | 7300mm x 2300mm x 2300mm | |||||
Material | Glass reinforced plastic in the surface, inside foam | ||||||
Refrigerator | USA origin Thermo King independent Refrigerator T600, working together |
