10 inches Pneumatic Heavy Duty Rigid Caster
Introduction
1:Designed for low speed, manually moved applications, best suited for outdoor rough surfaces or grass
Safe on Carpet, Concrete, Tile, & Wood Surfaces
2:For Use On: Wheelbarrows, Wagons, Carts, & many other products
3:Top Mounting Plate: 4.53"x3.94" Bolt Pattern: 3.22"x2.75" Bolt Hole: 0.4275" Overall Height: 9.96"
4:Includes: (1) Pneumatic Caster, Wheel with Attachment Plate & Brake
General Features:
1. Pneumatic Caster Code: 8 inches or 10 inches
2. This caster can be used on handcart caster; Durable and economical; Rubber wheel;
8 inches to 10 inches are alternative.
Durable and recylable caster wheel for equipments and trolleys.
3. Wheel Diameter: 200mm/ 260mm
4. Wheel Width: 60mm/ 70mm
5. Load Capacity: 120kg/ 150kg
6. Over Height: 255mm/ 300mm
7. Bolt Hole Size: 51.5mm/ 57mm
8. Plate Spacing: 84× 71mm
9. Export Markets: Global
Parameter
| Model No. | 3.50-4 | Fixinghole size | 11mm |
| Wheel material | Pneumatic rubber | Bolt hole spacing | 84x71mm |
| Wheel diameter | 260mm | Plate size | 114x100x6mm |
| Wheel width | 50mm | Brake | No |
| Overall height | 255mm | Housing material | Zinc plated steel housing |
| Offset | 51.5mm | Housing thickness | 6mm |
| Load capacity | 120kg | Application | Carts, equipment |

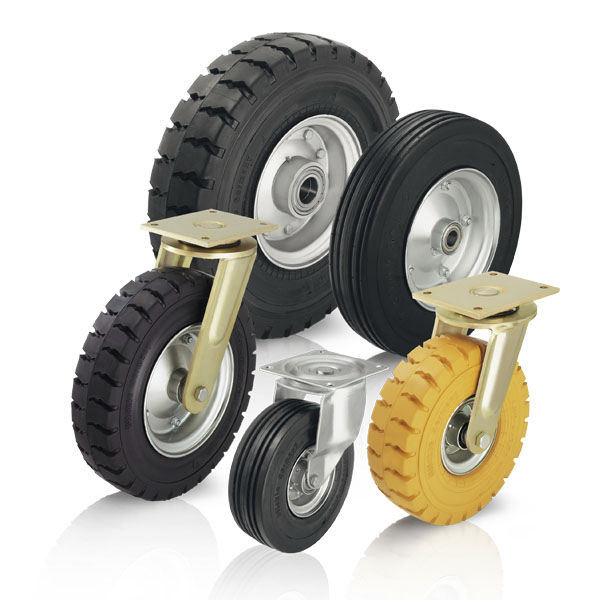

Pictures of the products
