Sludge transport truck, also known as sludge dump truck, is used for the removal of municipal sludge and a variety of scattered material loading, unloading and transport. Sludge truck is a sealed tank-type sludge collection, professional vehicles. The use of hydraulic lifting system can make the sludge and other materials automatically taken into the tank and the tank being lifted after dumping hydraulic control works, it is easy to operate and very flexible.
5 m3 to 20 m3 sewage sludge / mud /mire transport truck configurations:
1. The tank is made of Q235, 6mm high quality steel plate or 304 stainless steel plate. The head is made of 8mm steel plate. The appearance of the tank is cylindrical and the head is hemispherical.
2. The vacuum pump is imported Italy brand, with a high degree of vacuum, long life, stable quality and so on.
3. Tank type sludge truck also set up anti-overflow tank seal, to avoid other types of vehicles often occur overflow tank.
4. Complete hydraulic control and operating system, the tank can be lifted (angle ≥ 450) and the rear door is fully open to facilitate the tank sludge, make the fecal emissions more faster and more thorough, which has been conducive to the tank clean, Overhaul, and extend the life of the tank.
5. Set up a three-level protection device, one for the infrared alarm, the second for the oil and gas separator, the third for the buoyancy seal. Effectively avoid overflowing for the high vacuum or human negligence and greatly improving the life of the vacuum pump.
6. Sludge tanker and metal accessories were coated before the coating, with spraying polymer anti-corrosion primer and metal finish, has strong adhesion, corrosion resistance, uniform film, bright and lasting color characteristics. It can withstand wet, dusty, salt spray and other adverse environment so long-term use will not occur cracking, skinning, fading and other issues, not only improve the aesthetic level of the product, but also effectively pvent corrosion.

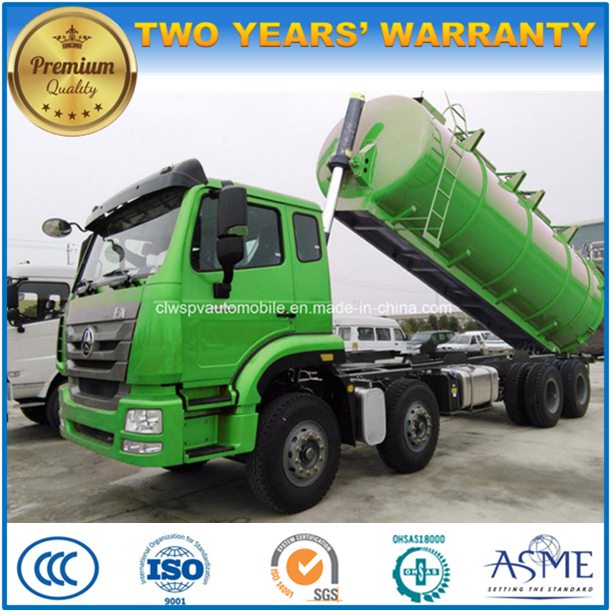

Mire transporttruck show
Specifications
| Vehicle model | ZZ1250A1333 | |
| Chassis model | DF1250AA23 | |
| Overall dimensions | 10000×2500×3350mm | |
| Tnaker volume | 16000-18000 L | |
| GVW | Appro*30000 | |
| Rated loading capacity | Appro*17000 | |
| Wheel base | 1800+38000+1350 | |
| F/R track base | 1404,1460/1458 | |
| Approach/departure angle | 20/16 | |
| Max speed | 95 km/h | |
| Tire specification | 12R22.5 | |
| Engine type | WD2320 | |
| Engine power | 255 kW | |
| Engine manufacturer | China heavy duty Group Co., Ltd | |
| Transmission | 10-speed with over drive | |
| Configuration | Special vacuum pump,power take off, transmission shaft, high pssure sewage tank | |
| Vacuum pump | Vertical suction>8m, horizontal suction>50m, rotation speed 1400r/min, minimum rotation speed 800r/min, power 5 kW, pumping speed 68L/s. | |
| Production cycle | 10-15 days | |
| Warranty | 18 month,from the date of supply | |
Q&A
| 1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China | |
| 2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation. | |
| 3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality. | |
| 4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need. | |
| 5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days. |
