Body/Superstructures:
Tank Capacity: 6-8m³, Medium Size.
Material: 5mm or 6mm high quality carbon steel
Vacuum pump: China famous vacuum pump
Vacuum rate: 99% thorically
Suction head: 6m
Rotation speed: 500 rpm, low noise, high efficiency
Basic Equipments:
----Install vacuum pumps and hydraulic systems driven by engine through PTO.
----One multi-way valve, pssure gauges, water-gas separator, oil gas separator, hydraulic oil tank, a level inspection window,
hand washing tank and a piece of 6m suction hose
----Paint Tank color is according to client's requirements.
Optional Equipments:
Italy or Spain vacuum pumps.
Stainless steel tank.
Anti-rust coating inside tank.

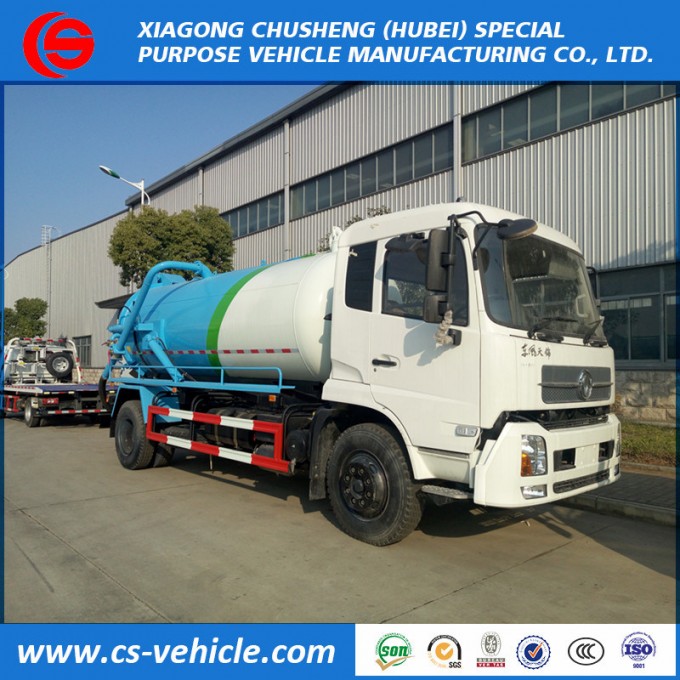

The pictures of Dongfeng 4x2 6000L 8000Liters Vacuum Sewage Suction Truck, fecal suction truck.
| Main Technical Parameters | |
| Product Name | Hot Sale Newest Model Feculence Truck, Sewage Suction Truck |
| Gross Vehicle Weight(kg) | 15790 |
| Curb Weight (kg) | 7170 |
| Overall Dimensions L*W*H(mm) | 7860x2500X3150mm |
| Engine | |
| Engine Model | ISDe190 33 |
| Engine Brand | DonGFENG CUMMINS |
| Fuel Type | Diesel |
| Power | 132kw/180HP |
| Emission Standard | Euro 3 |
| Displacement(ml) | 4500 |
| Engine Type | 4 cylinders in line,water cooling, charge inter-cooling diesel engine,electric control |
| Chassis | |
| Chassis Brand | DFAC |
| Drive Type | 4*2 |
| Front/Rear Axle Load(KG) | 5990/9800 |
| Tire No. | 6 |
| Tire Specification | 9.00-20 |
| Wheelbase (mm) | 4500 |
| Axle No. | 2 |
| Brake | Air brake |
| Front/rear suspension(mm) | 1230/2130 |
| Leaf Spring No. | 8/10+7 |
| Sucking System | |
| Tank Volume(L) | 10000 |
| Tank shape | Cylindrical |
| Tank Material | 5mm thick carbon steel |
| Vacuum Pumps | Double 5ton Weilong pumps |
| Suction Depth(m) | More than 6 meters |
Company information:
1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.
2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.
3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.
We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.
