Isuzu 4X2 8000L Vacuum Fecal Suction Truck

ISUZU 4x2 8000L/8m3/8cbmVacuum Sewage/fecal Suction Truck, fecal suction truck for sale.

. The Product Description

A sewage suction truck is atank truck with aheavy duty vacuum designed to pneumatically load fecal, solids, liquids, sludge, crude oil or slurry through suction lines in diameter with 3" being the norm. We provide various sizes of sewage suction trucks with capacities ranging from 2cbm to 18cbm.

Our factory could produce different brand like Sinotruk HOWO, FOTON, DONGFENG, FAW etc with different sizes ranged from 3000Liters to 16000Liters as well as big size sewage suction trailers.

The Parameters of ISUZU 8m3Sewage/fecal Suction Truck
Overview
Name	Sewage Suction Truck/fecal suction truck
Dimension(LxWxH)	8990x2500X3380(mm)
Total Mass	16050Kg
Rated Payload	8000Kg
Kerb Weight	8050Kg
Passenger	3
Approach/Departure Angle	19/15
The Parameters of Chassis
Manufacture/Model	ISUZU, QINGLING/QL5160CCY9QFRJ
Driving Type	4*2 left/right hand drive
Wheel base	5500 mm
Gearbox	Six speed lever with five speed forward and one reverse, manual
Front/Rear Track	1506/1466(mm)
Tyre	7.00-16
The Number of Tyre	6+1(spare tyre)
Front/ Rear Suspension	1032/1658(mm)
Leaf Spring Number	8/9+5, 6/8+4
The Paremeters of Engine
Manufacturer/Model	ISUZU/4HK1-TCG40
Rated Power	190hp/139kw
Fuel Type	Diesel oil
Displacement/Capacity	5193mL
Emission Standard	Euro4
Cylinder	510N.m
Velocity	2600rpm
The Parameters of Equipment
Tank Capacity	8 m3
Vacuum Pump Rotation Speed	800r/m-1400r/m
Max. Suction Lift	>6m
Vacuum	>500mmHg
Rotation Direction	Clockwise
Time for full sucktion	<5min
Common Accessories	Vacuum pump, ball valve, oil cylinder for rear cap, oil cylinder for dumping, pssure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator,sprinkler (optional), alarm for full suction (optional),etc.

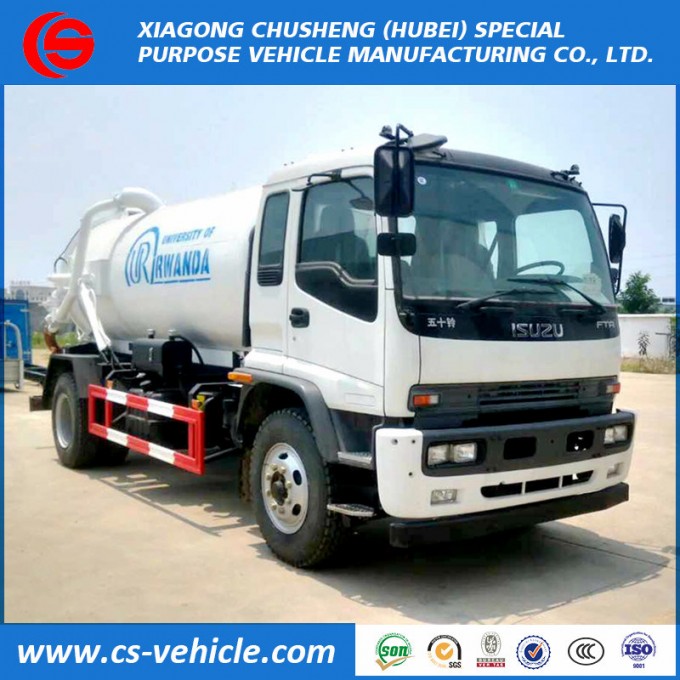

The picture ofISUZU 4x2 8000L Vacuum Sewage Suction Truck, fecal suction truck for sale


The pictures ofSinotruk HOWO 10 wheels 12000L 16000L sewage suction truck:


Company information:

1.Xiagong Chusheng (Hubei) Special-purpose Vehicle Manufacturing Co., Ltd. is afamous and the biggest manufacturer with very professional experience in special automobile field for more than 15 years in China. We have more than 3000 workers, 400 technicians, and factory scale is more than 690,000m2.

2.Our most advantage and leading products including LPG tanker series, Water Tank, Fuel tank, Refrigerated Truck, Garbage Truck, Towing/Wrecker truck, Dump Truck, Sewage Suction Truck, Concrete Mixer Truck, Bulk Cement Truck, Van Truck, Sweeper Truck, Truck with Crane, Fire fighting Truck, High-altitude Operation Truck, Chemical Liquid Truck, Milk Transport Truck, LED Display Truck, Various Semi-trailer, Spare parts etc.

3.We have successfully exported to more than 60 countries, such as Ghana, Togo, Sudan, Kuwait, Peru, Nigeria, Benin, Angola, Tajikstan, Azerbaijan, Namibia, Burma, Korea, Iran, Afghanistan, Iraq, Philippines, Vietnam, Saudi Arabia, Mexico, Chile, Bolivia, Tanzania, Zambia, Zimbabwe, Yemen etc.

We have strict quality control of raw material, professional management team and technical workers, advanced equipments, strict inspection before delivery, excellent packing and shipping team.

Factory View:

Our main products:

1.Water Truck2.Insulation Truck and Milk Truck 3.Sewage Suction Truck4.Garbage Truck

5.Manlift Truck/Aerial Platform Truck6.Truck with Crane 7.Fuel Truck/8.Chemical Truck

9.Bulk Cement Truck10.Concrete Mixer Truck11.Fire Truck12.Dump Truck

13.Van Truck/Refrigerated Truck, 14.Wrecker/Tow Truck, 15.Flatbed Truck/Low Bed

16.Tractor,17.LPG Truck; 18.Trailers
