Sewage suction truck is used to suction sewage, manure and slurry liquid and transportation, as well as for rural irrigation and drainage.
Product features
1, the use of domestic mature chassis, the use of safe and reliable;
2, the tank through the strict overall pickling, anti-corrosion treatment, and coated with a special anti-corrosion non-toxic paint, has a good rust resistance;
3,imported first-class vacuum pump, good lubrication, reliable work, low fuel consumption, coupled with a good pumping capacity, so to ensure the exhaust system is reliable;
4, with a vacuum suction, pssure discharge and self discharge of three functions, the pipeline design is novel and advanced, easy to install and maintenance, so that the operation is greatly simplified;
5, hydraulic system control valve, cylinder, connecting pipe and other key parts, advanced structure, reliable performance, simple operation, convenient maintenance;
6, the top of the tank is installed with anti liquid overflow device controller.
7, the left front of the tank is provided with an organic glass liquid level display tube, which can clearly show the inner surface height of the tank body.
Specifications
| Vehicle model | HWL5251GXW | |
| Chassis model | SHW209D1 | |
| Overall dimensions | 11000×2500×3400mm | |
| Tnaker volume | 25000L | |
| GVW | Appro*25000 | |
| Rated loading capacity | Appro*14000 | |
| Wheel base | 4750+1300 | |
| F/R track base | 1404,1460/1458 | |
| Approach/departure angle | 20/16 | |
| Max speed | 95 km/h | |
| Tire specification | 11R20 | |
| Engine type | D10.34 | |
| Engine power | 255 kW | |
| Engine manufacturer | Dongfeng Cummins Engine power Co., Ltd | |
| Transmission | 10-speed with over drive | |
| Configuration | Special vacuum pump,power take off, transmission shaft, high pssure sewage tank,pipe network, sewage pipe for observing and cleanout equipment | |
| Vacuum pump | Vertical suction>8m, horizontal suction>50m, rotation speed 1400r/min, minimum rotation speed 800r/min, power 5 kW, pumping speed 68L/s. | |
| Production cycle | 10-15 days | |
| Warranty | At least 12 month,from the date of supply | |

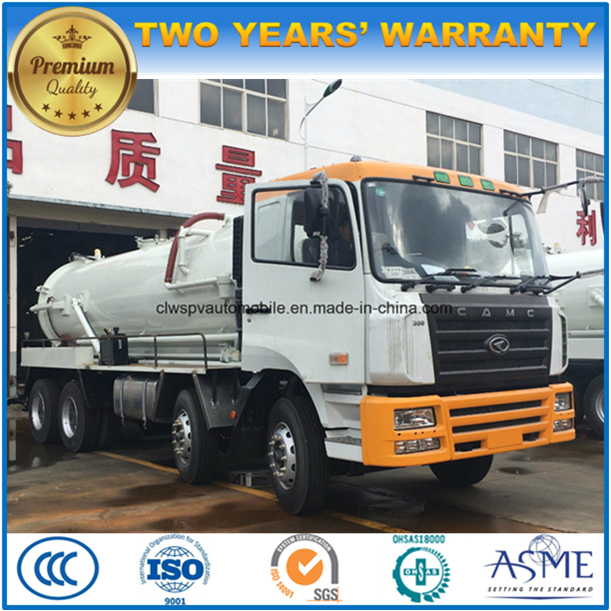

Vacuum truck show
Configurations of upper load parts:
| Item | Qty | specification |
| Sewage suction tanker | 1 | Tanker thickness: 6mm Head of plate: 7mm Q235 carbon steel Cylindrical tanker 16-18 m3 |
| Compartment | 3 | |
| Vacuum pump | 1 | Italy brand Vacuum without depssion valve fitted:-0.95 bar Vacuum with depssion valve fitted:-0.8 bar Power absorption per max vacuum:30kW Net weight:168Kg Suction height: >8m |
| PTO | 1 | Optional according to the speed transmission |
| Hydraulic system | 2 | Hydraulic opening and lifting system; Time of lifting tank body<20s |
| Oil-gas separator | 1 | |
| Water separator | 1 | |
| Pressure gauge | 1 | |
| Multi-way directional valve | 1 | |
| Rear gravity valve | 1 | |
| Observation window | 1 | On top of the tanker or rear of the door |
| Anti-flooding valve | 1 | |
| Fluid level gauge | 1 | |
| Suction hose | 1 | 5m-8m, DiameterΦ108mm |
| Tank for washing | 1 | Steel, 10L for cleaning hands |
Q&A
| 1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China | |
| 2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation. | |
| 3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality. | |
| 4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need. | |
| 5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days. |
