Prefab Shipping Modified Container House

Characteristics

1 No base work involved
2 Environment protective, no garbage caused.
3 Doors, windows, and interior partitions can be flexibly fixed.
4 Beautiful appearance, different colors for the wall and roof.
5 Cost saving and transportation convenient.
6 Anti-rust and normallymore than 15 years using life.
7 Safe and stable,can stand 8 grade earthquake.

Technicalparameters

1 Dimension: 6058*2438*2591mm
2 Mainframe: 20 feet shipping container
3 Square tube support 40*40*2mm 40*80*2mm
4 Wall /roof insulation V1150 0.4/50mm fiberglass/0.4mm
5 Floor: 18mmthick plywood boardwith1.5mm pvc flooring
6 Doors:Steelsecuritydoorandinsidesandwichpaneldoor
7 Windows: plastic steel slidingwindow
8 Electrical system ceiling lamp, switch, socket, distributor box, etc
9 Facilities:showercubicle,toilet,handbasin,mirror,waterheater,airconditioningetc.
10 Wind resistance: grade 11 (wind speed ≤111.5km/h)
11 Earthquake resistance: grade 8
12 Live loadcapacity of roofing: 0.5kN/m2
13 External and internal wall heat transmission coefficient: 0.35Kcal/m2hc

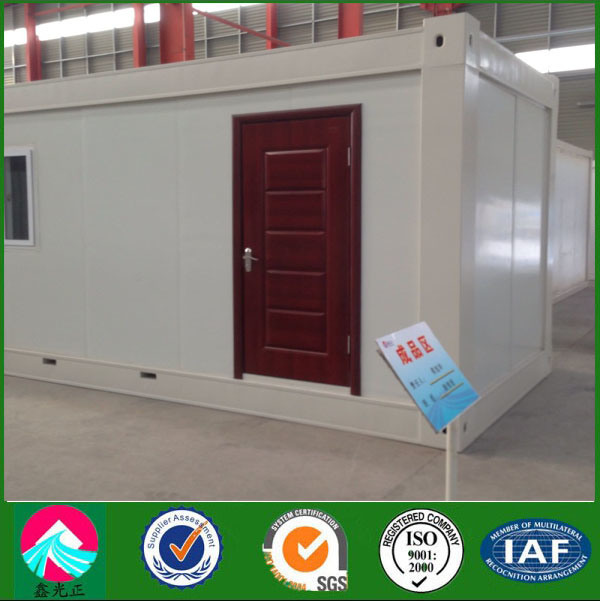

Picture show




Specifications

steel structure frame	light steel structure or shipment container
roof and wall material	EPS sandwich panel . fiberglass sandwich panel , rock wool sandwich panel
sandwich panel thickness	between 50-100mm
material of door	sandwich panel door or security door
material of window	plastic steel window or aluminum allow edge window
Packing	1.six 20ft discountable container house can be loaded into one 40ft shipment container 2.one modified container house can be loaded into one shipment container
features	1.Easy to assemble and disassemble for several times without damage 2.Cost saving and transportation convenient 3.Anti-rust and normally more than 10 years using life 4. Quick installation, easy disassembly and moving.
the difference of discountable container house and modified container house	For size, it is also flexible, smaller or bigger than standard container more or less. Assembled and welding type both are good, but assembled type could save more transportation fees.
