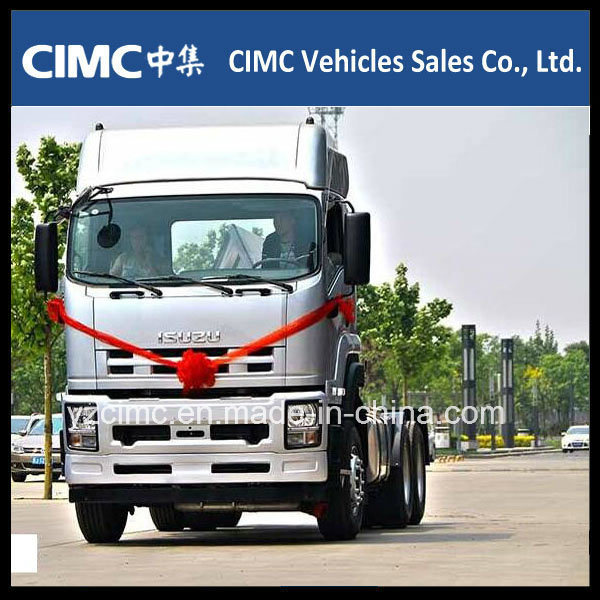

Isuzu Qingling Vc46 6X4 New Tractor Truck/Prime Mover/Tractor Head/Tow Truck

ISUZU 6x4 Tractor Truck

Model QL4251UKCZ
Driving type: 6*4 left hand driving

Engine Make: ISUZU
Diesel 4-stroke direct injection diesel engine, Electronic control
Engine model:6UZ1-TCG40 , Euro IV emission standard
6-cylinder in-line with water cooling, turbo-charging and intercooling
Maximum output: 350 hp (257 Kw) at 2000 rpm
Maximum torque: 1422 Nm 1400 r/min
Number of cylinder: 6
Displacement: 9.8 L
Specific fuel consumption: 184 g/kWh
Engine oil filling quantity: 19 l
Cooling system filling quantity (long-term filling): 40 l
Thermostat with 71ºC opening begin
Single cylinder air compssor
Rigid fan


Transmission FULLER 12JSD160(TA), 12 forwards and 2 reverse, 1600N.m, 2600rpm
Ratio: 15.53 12.08 9.39 7.33 5.73 4.46 3.48 2.71 2.1 1.64 1.28 1 14.86(R1) 3.33(R2)

Propeller Shaft Double universal joint propeller shaft with gear-shaped coupling flange

Front Axle ISUZU F075, Steering with doubleT-cross section beam, 7.5 Tons Capacity
Rear Axle ISUZU RT210, Pressed axle housing, central single reduction with hub reduction and with differential locks between wheels and axles .
18 Tons Capacity, Ratio Selective:3.9, 4.1, 4.3

Chassis frame: U-profile parallel ladder frame, and reinforced subframe 285×85×7 all cold riveted cross members, Manganese steel

Front suspension: leaf spring, hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:leaf semi-elliptic springs, bogie spring and stabilizer

Aluminium fuel tank: 400L capacity with locking fuel cap, fitted to the off side of the chassis
Brakes Service brake: dual circuit compssed air brake
Parking brake (emergency brake): spring energy, compssed air operating on front shaft and rear wheels
Auxiliary brake: engine exhaust brake

Wheels & Tyres Tire:11.00-20 18PR, all Nylon tyre

Saddle 3.5 inch

Driver's Cab Standard cab, with two seats, 1 bed, 2-arm windscreen wiper system with three speeds,
damped adjustable driver's seat, with heating and ventilating system, exterior sun visor, safety belts, adjustable steering wheel, air horn,24V USB, with transverse stabilizer,with 4-point support fully floating suspension + shock absorber

Electrics Operating voltage: 24 V, negative grounded
Starter: 24 V, 5.4 Kw
Alternator: 3-phase, 28 V, 1500 W
Batteries: 2 x 12 V, 165 Ah
Cigar-lighter, horn, headlamps, fog lights, brake lights, indicators and reverse light
Instrument Panel Active check central controllor with indicators, with this integral instrument the daily manual checks on the vehicle and combined indicators
of compssed air pssure, coolant temperature, engine oil pssure and battery charging
Dimensions mm Wheel base 3425+1300
Front wheel track 2060
Rear wheel track 1855
Front overhang 1370
Rear overhang 905
Approach angle (0) 17
Departure angle (0) 42
Overall length 7000
Overall width 2500
Overall height 3300
Weight kg Dead weight 8200
Maximum Loading Capacity 40000
Gross vehicle weight 48200
Front axle loading capacity 7500
Rear axle loading capacity 18000
Performance Maximum driving speed (km/h) 110
Maximum gradeability (%) 34
Minimum ground clearance (mm) 278
Fuel consumption (l/100 km) 29
