| The Parameters of 2/3 Axles Vacuum Suction Semi Trailer | |
| Overview | |

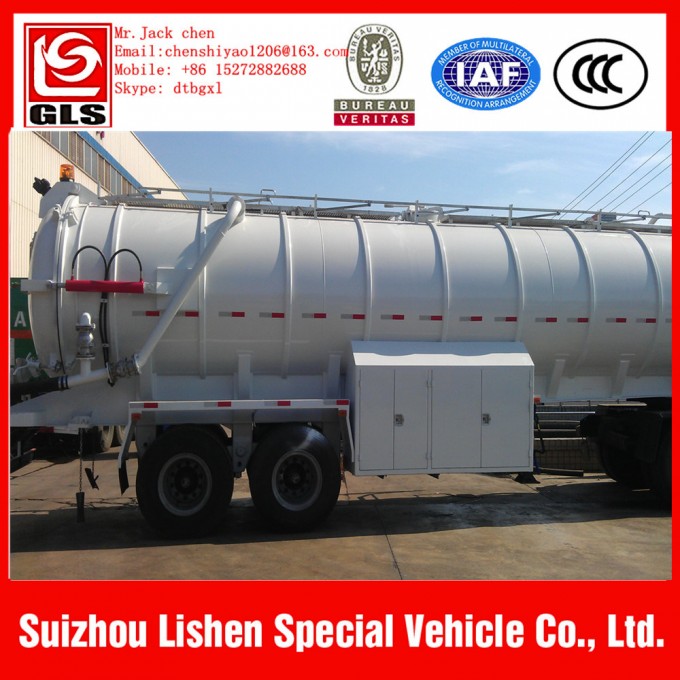

| Name | Vacuum Suction Semi Trailer |
| Dimension(LxWxH) | 10540x2490X3990 (mm) |
| Total Mass | 43000 Kg |
| The Parameters of Trailer | |
| Axle Number | 2/3 |
| Leaf Spring | 12 |
| Tire Model | 11.00R20 |
| Axles Brand | Optional: FUWA or BPW |
| Suspension | Independent stamping steel rigid suspension (or air suspension) |
| Kingpin | 50# or 90# |
| Supporting Device | linkage leg |
| Brake Chamber | ABS |
| The Parameters of Equipment | |
| Color/Logo | Customizable |
| Material | 6mm sarbon steel/stainless steel/aluminium alloy etc. |
| Tank Capacity | 20-45 m3 |
| Vacuum Pump Rotation Speed | 800r/m-1400r/m |
| Max. Suction Lift | >6m |
Vacuum | >500mmHg |
| Rotation Direction | Clockwise |
| Length of Pipe | 5-10m |
| Time for full sucktion | <5min |
| Common Accessories | Vacuum pump (imported one available), ball valve, pssure meter, window for showing liquid level,lock system for rear cap, four-way valve, moisture separator, sprinkler (optional), alarm for full suction (optional) |
| *The above parameters are only for reference. For more specific requiremets suiting your case, please contact me. Thanks! | |
