Graceful Modular Prefabricated Flat-Pack Container House for Retail Shop

Graceful Modular Prefabricated Flat-Pack Container House for Retail Shop


Description : Ready Made Sandwich 20 Feet Prefab Shipping Container House

Model	CH-E
size	5900mm*2438mm*H2790mm
Exterior steel door	890mm*2090mm
Door	exterior steel door :860mm*2050mm;Interior sandwich door size: 700mm*2000mm
Wall system	50/75 mm EPS sandwich panel
Alu single glass sliding window size	800mm*1100mm;800mm*400mm(figured glass)
Floor	bedroom---plywood + 2mm UPVC flooring; bathroom---cement fiber board + PVC floor
Electricity	1 lights, 1 switches, 2 sockets, one set of distribution boxand breaker
Material	All steel members galvanized
Electricity:	custom made
Usage	classroom, dorm, hotel, living house

d
Our advantages are:
1. Easy installation, widely used in the construction sites, temporary residence, shower room, kitchen, teaching building, office, cold storage house, switch board room, and military camouflaged house etc.
2. Apply to extreme climate area. Its wind resistance can reach 210km/h, and the seismic resistance can be more than Grade 8.

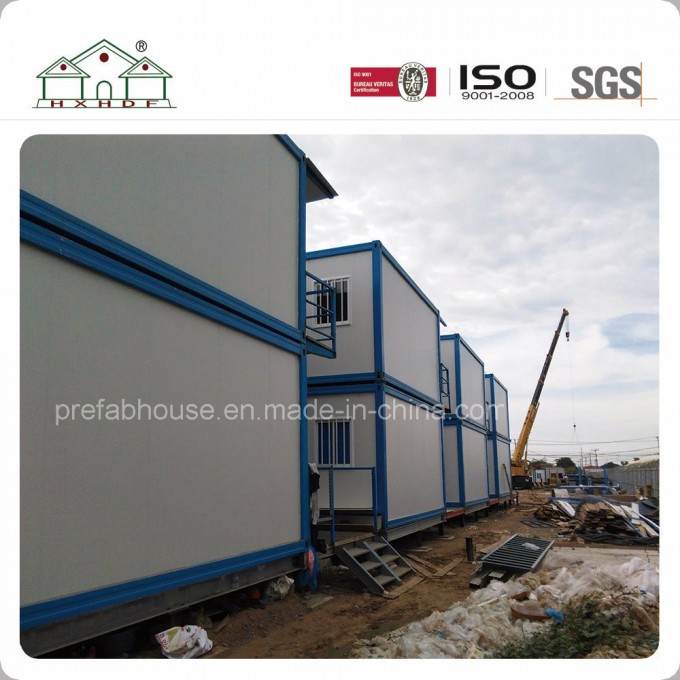

3. Various choices for clients. Besides the standard 20' container house, PTH can also offer you 10', 16', 40' container house or combined ones. It can be stacked up to 4 layers in the vertical. And it can be combined with any quantity or any position in the horizontal.



Roof and base pod :

	Roof pod	base pod
Corner part	P=3.75	Corner part	P=3.75
Main beam	P=2.75, galvanized and painted	Main beam	P=2.75, galvanized and painted
Cover skin	P=1.5 GI sheet	Floor deck	Plywood, T=16mm
Faceplate	T=0.426	Floor	T=2mm PVC
Insulation	50mm injected EPS, density=12kg/m3,optional	Insulation	EPS,optional
Electricity	6 ways Distritution box, 2 breakers, 2 lights	baseplate	T=0.42mm steel plate
Weight	465kgs	Weight	850kgs
Loading	1kN/m2	Loading	1kN/m2

Post and wall panel :

PARTS	Post	Wall Panel
Size	H=2500mm	Size	W1150*H2420*T50~100mm
Weight	96.1kgs	Insulation	EPS/PU/Minal wool, T=50~75~100mm
Packing	2pc/carton, each carton 192.2kgs	Faceplate	T=0.326~0.426~0.5mm
Bolts	M10*20 bolts for connection	Treatment	50/50g/m2Zinc-Alu. Galvanized, 20/20um PE painting
Material	Q345/Q235	Door & Window	Door: W890*H2090mm; Window: W800*H1100mm, pinstalled into the wall panels
		Cable	Preinstalled

Details :

Corner fitting	Made of Q345B/Q235 seamless welded steel tube, less solder sides, more firm; polishment makes the surface more smooth, and make it more firm; CNC drilling holes, more accurate and perfect; first galvanized, then painted with anti-corrosive paints.
Steel pillar	Made of Q345B/Q235 seamless welded steel tube, less solder sides, CNC bending; first galvanized, then painted with anti-corrosive paints.
Beam	Made of Q345B/Q235 seamless welded steel tube, less solder sides, CNC bending; first galvanized, then painted with anti-corrosive paints.
frame soldering	Sealed soldering makes the frame more firm
Painting workshop	The FC paints with good adhesive force, makes the container house bright and fresh.
Installed the wires&wipes in advance	The inner space will be more beautiful.
The roof	Integrated with EPS (steel parts+colored steel sheet on both sides+PU foaming), the water proof is well solved. Bearing capacity is 0.5t.
EPS wall panel	Using the stainless steel to protect it from rusting
Windows&doors	Fitted in the wall panel, easy to adjust
Switch	Installed the wires and slots in advance which make the inner space more safe and artistic
Laminate floor	Laminate floor make the room comfortable and artistic
PVC floor	Well water proof
PVC belt course	Make the floor more artistic
Installation of the bottom's drainage system	Its installation is according to the place of the toilet
Semi-finished product&accessories&supporting facilities
Introduction of the bottom	frame made of Q235/Q345 steel board, seamless bended, seamless welded, surface galvanized. Painted with anti-corrosive paints, laying materials: laminate board, PVC board, blockboard, cement fiber board etc.
Bottom serial	1. Standard laminate floor 2. Public Toilet bottom 3.bottom of the toilet in the middle 4.. Standard PVC bottom 5.light steel keel bottom
Introduction of the wall system	consists of 0.42mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42mm stainless sheet, integrated with PUEPSROCK WOOL etc. The size of the wall is 2310mm*1158mm. The thickness of the external wall is 75mm, and the internal wall is 50mm. The density of the EPS is 12kgm³, the density of the glass wool / rock wool is 100kgm³. And the color of the wall is as per the clients' demands.
wall system series	1. Standard wood pattern wall panel 2. Standard blue wall panel 3. Inner door standard wall panel 4. External door(steel security door)fitted with standard yellow wall panel 5. External door(steel security door)fitted with standard block pattern wall panel 6. External door(steel security door)fitted with standard blue wall panel 7. Window(PVC aluminium alloy window) fitted in the standard wall panel size:800*1,100mm 8. Window(PVC aluminium alloy window) fitted in the standard wooden pattern wall panel size:800*1,100mm 9. Bathroom ventilated window(PVC aluminium alloy window) together with exhaust fan being fitted in the wall panel. Size: 800*400mm
accessories	Decoration strip, skirting line, inner corner, inner corner pedestal, corner parts, plastic seaming rib, wall panel fixer, socket, switch(AM, AU, BR, Taiwan standard), day light lamp support, steel security door, security door lock, 1exhaust fan, stairway bracket connection, Laminate floor
Supporting facilities	1. Shower room---1. Type specification 2. Type specification 2. Cabinet------Type specification 3. pedestal pan 4. Wash basin 5. Urinal 6. squatting pot 7. Air cooler
