Sewage suction truck is used to suction sewage, manure and slurry liquid and transportation, as well as for rural irrigation and drainage.
Product features
1, the use of domestic mature chassis, the use of safe and reliable;
2, the tank through the strict overall pickling, anti-corrosion treatment, and coated with a special anti-corrosion non-toxic paint, has a good rust resistance;
3,imported first-class vacuum pump, good lubrication, reliable work, low fuel consumption, coupled with a good pumping capacity, so to ensure the exhaust system is reliable;
4, with a vacuum suction, pssure discharge and self discharge of three functions, the pipeline design is novel and advanced, easy to install and maintenance, so that the operation is greatly simplified;
5, hydraulic system control valve, cylinder, connecting pipe and other key parts, advanced structure, reliable performance, simple operation, convenient maintenance;
6, the top of the tank is installed with anti liquid overflow device controller.
7, the left front of the tank is provided with an organic glass liquid level display tube, which can clearly show the inner surface height of the tank body.
Specification of truck
| SINOTRUK sewage vacuum suction truck | |||
| Chassis Model | ZZ1165G4 | ||
| Gross weight | kg | 16000 | |
| Curb Weight | kg | 8510 | |
| Overall Dimension | mm | 7980×2500×3300 | |
| Tank body Dimension | mm | Length: 5160 Diameter:1795 | |
| Wheelbase | mm | 4700 | |
| Axle load | kg | 7000/8000 | |
| Wheel Track | Front | mm | 2020 |
| Rear | mm | 1860 | |
| Minimum Ground Clearance | mm | 550 | |
| Engine | WD612, 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||
| Power | kW | 200 | |
| Displacement | ml | 7500 | |
| Engine manufacturer | China National Heavy Duty Truck Group Co.,Ltd | ||
| Emission standard | Euro 2 | ||
| Transmission | 8 forward 1 reverse, manual | ||
| Fuel Consumption | L/100Km | 18-24 | |
| Fuel Tank Capacity | L | 200-250L, Aluminum alloy fuel tank | |
| Fuel type | Diesel | ||
| Tires | 11.00R20,6+1 | ||
| Maximum Speed | km/h | 95 | |
| Maximum Grade ability | % | 26 | |
| Minimum Turning Circle | m | 19 | |
| Max. Brake Distance(Fully laden,30km/h) | m | 9.5 | |

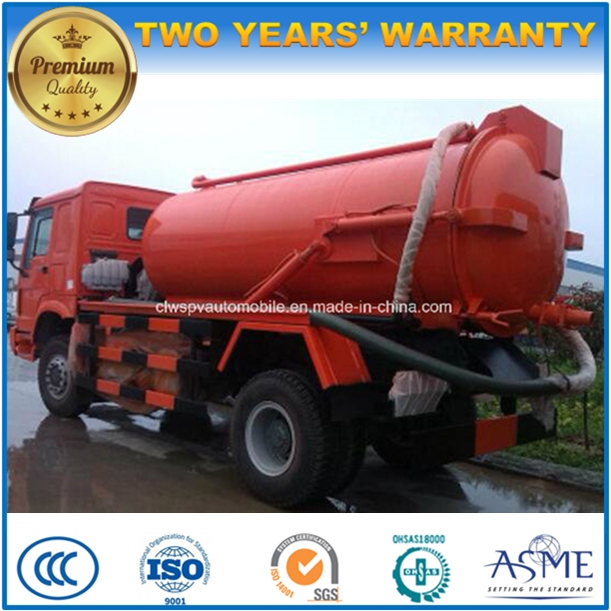

Vacuum truck show
Configurations of upper load parts:
| Item | Qty | specification |
| Sewage suction tanker | 1 | Tanker thickness: 6mm Head of plate: 7mm Q235 carbon steel Cylindrical tanker 10 m3 |
| Compartment | 3 | |
| Vacuum pump | 1 | Italy brand Vacuum without depssion valve fitted:-0.95 bar Vacuum with depssion valve fitted:-0.8 bar Power absorption per max vacuum:20kW Net weight:146Kg Suction height: >7m |
| PTO | 1 | Optional according to the speed transmission |
| Hydraulic system | 2 | Hydraulic opening and lifting system; Time of lifting tank body<20s |
| Oil-gas separator | 1 | |
| Water separator | 1 | |
| Pressure gauge | 1 | |
| Multi-way directional valve | 1 | |
| Rear gravity valve | 1 | |
| Observation window | 1 | On top of the tanker or rear of the door |
| Anti-flooding valve | 1 | |
| Fluid level gauge | 1 | |
| Suction hose | 1 | 5m-8m, DiameterΦ108mm |
| Tank for washing | 1 | Steel, 10L for cleaning hands |
Q&A
| 1.Q:Are you amanufacturer or trading company? A:We are manufacturer. You are welcomed to visit our factory. Factory Address: Chengli Automobile Industrial Park, South Suburb, Suizhou, Hubei, China | |
| 2.Q:What kind of payment do you accept? A:We accept T/T and L/C usually. If you want to use others payment, contact us for /confirm/iation. | |
| 3.Q:Can you customize trucks according to customers' need? A:Yes, product customization service is our speciality. | |
| 4.Q:What's your after-sale service? A:We provide technical support for our products. Besides, we also provide spare parts as long as customers need. | |
| 5.Q:What's your delivery time? A:It depends on the quantity, usually takes 10-15 working days. |
