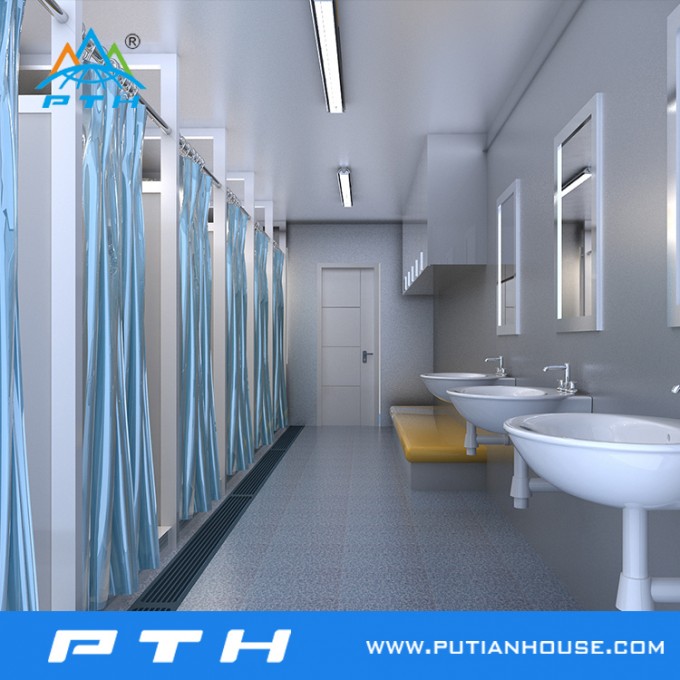

China Standard Container House as Public Toilet

Model PTJ-8*20B size 6058mm*2438mm*H2591mm Exterior steel door 860mm*2050mm Roof 70mm PU sandwich panel Door steel door or sandwich panel door Wall system 75mm EPS sandwich panel Pvc single glass sliding window 880mm*1100mm Floor bedroom---plywood + laminated floor; bathroom---cementfiberboard+ PVC floor Electricity three lights, two switches, two sockets, one set of distribution box'Onewashbasin+ one toilet+one shower room Material All steel members galvanized Electricity: custom made Usage dorms in the construction site, single department Product Details Introduction of the bottom of the container house framemadeofQ345steelboard,seamlessbended,seamlesswelded,surfacegalvanized.Paintedwith anti-corrosivepaints,layingmaterials:laminateboard,PVCboard,blockboard,cementfiberboardetc. Bottomserial 1.Standardlaminatefloor 2.PublicToiletbottom 3.bottomofthetoiletinthemiddle 4.StandardPVCbottom 5.lightsteelkeelbottom Introduction of the wall system Consists of 0.42mm colored steel sheets on both sides or one 0.42 colored sheet and one 0.42mm stainless sheet, integrated with PUEPSROCK WOOL etc. The size of the wall is 2310mm*1158mm. The thickness of the external wall is 75mm, and the internal wall is 50mm. The density of the EPS is 12kgm³, the density of the rock wool is 100kgm³. And the color of the wall is as per the clients' demands. Wall system series 1. Standard wood pattern wall panel 2. Standard blue wall panel 3. Inner door standard wall panel 4. External door(steel security door)fitted with standard yellow wall panel 5. External door(steel security door)fitted with standard block pattern wall panel 6. External door(steel security door)fitted with standard blue wall panel 7. Window(PVCaluminiumalloy window) fitted in the standard wall panel) size:800*1,100mm 8. Window(PVCaluminiumalloy window) fitted in the standard wooden pattern wall panel) size:800*1,100mm 9. Bathroom ventilated window(PVCaluminiumalloy window) together with exhaust fan being fitted in the wall panel. Size: 800*400m

Factory view

Our factory & Main Products have been verified by Bureau Veritas(BV)
Our factory is located inShaoxing, Zhejiang, China; 25minutes from the Hangzhou International Airport 790minutes from Shanghai& Ningbo City.
150 employees including 30engineers and 35 senior skilled workers
Professional frame CAD from New Zealand specializing in Light Steel Villas
45000M2 buildingarea,includes2workshops 35000M2 total
More than 100 sets advanced production lines
Capacity For Steel Structure Houses:100000M2
Capacity For Steel Container Houses:3000 units

Packaging & Shipping

Checking&Packaging

1.Checking
Carefully check the shipping list. making sure no mistake.
2.Packing
Option one: a standard container house packed in one flat pack, 4 sets combined into one package. It can be shipped on board just as one 20' shipping container, The package will be protected by plywood boards around and thin film wrapped.
Option two: mixed packaging. Roof and chassis will be packed together with bolts; all the wall panels packed together withwoodenpallet in the bottom, corrugated board on the surface, and XPS board in the interspace. It will be shipped in 40' container.

Loading&Shipment
1. Flat packs will be one package it can be shipped on board just as one 20 shipping container.
2.Mixed packaging: top and bottom packed together with bolts, all the wall panels packed together onwoodenpallet. wrapped bycorrugatedboard on the surface. and XPS board between panels. The packageitwill be then shipped in 40' shipping container
Company Information

Zhejiang Putian Integrated Housing Co.,Ltd.Established in2003, PTHis a leader in the Steel Structure industry.Certified by CE, BVIFA&ISO9001, Wecan design and manufacture all types of Steel Structure houses or buildings to suit your personal or business needs.We offer project support on any, or all phases of the steel design and detailing based on your project requirements. Providing consultation and delivery of a full range of steel structure design projects has recently opened retail showrooms inToronto, Canada&Bahrainand plan to expand intoAustralia, Europe, SouthAfrica, Russiaand the Middle East with many more countries to follow.Our 4S retail showrooms feature afull-servicenetworkincluding:p-sale consulting&design services,sales&shipmentservices, installationguidance services and most importantly after-sales customer support service.

Our advantage
1)Integrated base and roof, PU injected, excellent strength and tightness

2)0.426mm color steel sheet for sandwich wall panel, strong and beautiful

3)All electric wires, water pipes, windows, doors and floor p-setted, easy for assembling

4)Long timeoversea project experience

5) 4S sales and service network, buy a house just like to buy a car

6) Qualification: CE(DIN18800), ISO9001, BV

7)Durable, beautiful, economic and environmental

8)High Construction Efficiency (2workersin one day for one unit)

9)Longlife time(Max. 20 years)

FAQ

1. Do you provide on-site installation service?

1)only large projects provide installation services

2) General projects, we can provide Installation guide service based on customers' request.

3)Installation supervisioncharge standard: 150USD/day,customershould responsible for the travel fee, accommodation, translation fee, and ensure staff's health and safety.

2.What's your delivery time?

Salesmanwill confirm the time accordingly,largeorder should communicate withorder management department in advance. Normally, delivery time is 45days afterreceivedeposit. Large order delivery time should be arranged separately.

3.How to control the quality of your product?

a. quality of the design: think about possible problems in advance and provide ahigh-qualitydesign solution.

b. quality of the raw material: choose the qualified raw material

c. quality of the production: pcise manufacturing technique, experienced workers, strict quality inspection.

4. How to deal with quality problems?

Warranty is 3 years.Within the warranty period, PTH will responsible for all quality problems caused by production.

5. If there is a clear service life of your products?Ifhave, how long?

Underconventional climate and environment, steel structure whole building 10 years, main structure 15 years, protecting system 10 years.

6. What designs do you have in different climates (How can the productsadoptto different climates)?

Strong wind region:improvethe wind-resisting ability of the internal structure.

Cold region: increase the thickness of the wall, or use good insulation material, improveanti-pssureability of the structure.

High corrosionregion:use corrosion resistant material, or paint anticorrosive coating.
