Vacuum 16000 Liters 20ton 336HP Sinotruk HOWO 4X2 Sewage Suction Truck

Your are always welcome to visit our factory at any time.

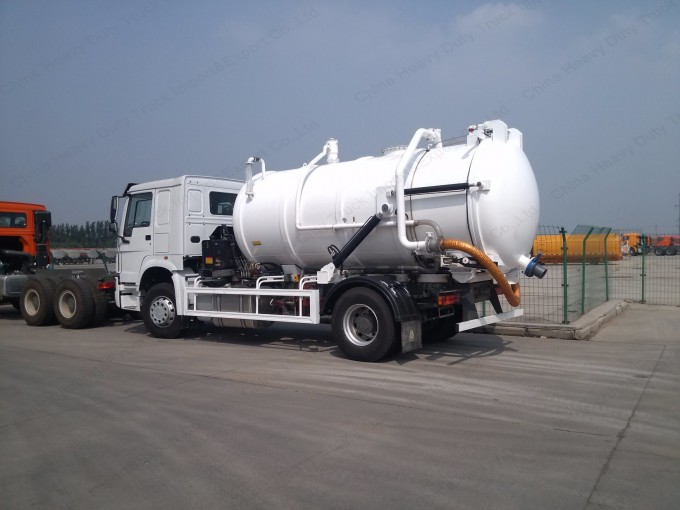

20TON Sinotruk HOWO 4X2 Sewage Suction Truck
Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck,

sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
1.Fecal Suction Truck Vacuum Tank Truck(Configuration can be changed as required)

1. vacuum tank sewage suction truck is loading and discharging quickly.
2. Fecal suction truck with 16cbm tank volume.
3. Sewage suction truck is discharged clearly.


2.Fecal Suction Truck Vacuum Tank Truck main equipment:
sewage suction tank truck cab -single and half row, optional: A/C
vacuum sewage truck Engine -sino howo, 6cylinders
vacuum truck manual gearbox -9-speed
sewage truck drive axle loading capacity- 20T
vacuum suction truck tire -10.00-R20
vacuum sewage sucking truck tank capacity -16cbm


3.Fecal Suction Truck Vacuum Tank Truckmain specification:

Sewage Suction Vacuum Truck Technical Specification
Product Name	Sino howo SEWAGE SUCTION TRUCK
Chassis Model	ZZ1250
Fuel type	Diesel
Emission Standard	Euro 2
Cabin	HW16
Whole Vehicle main dimensions (mm)	Overall dimensions (LxWxH)	9500*2400*3300
	Wheel base	optional
	Min. ground clearance	480
Weight data (kg)	G.V.W	25000
	Curb weight	1200
	Max payload	16000
Whole vehicle main performance	Max. speed (km/h)	95
	Max. slope of climb (%)	30
Engine	Model	WD615 47
	Maximum power	336HP
	Number of cylinders	6
	Displacement (ml)	9.726
Gear box	Model	9
	Number of gears	9 forward gears &1 reverse
Axle	Front Load capacity (ton)	7
	Rear Load capacity (ton)	18
Steering Wheel	left/right hand drive	LHD,RHD
Brake system	Service brake	Air braking
Electric device	Rated voltage	24V
Tyres&Quantity		10.00-20& 6+1
Sewage Suction Vacuum Truck Special Tank Description
Tank	Material:high quality carbon steel Structure:welding,vacuum tank,Cylindrical
	capacity(L)	16000
	thickness of material	6mm
pump	type	vacuum pump
	model	65QZ-40/45N
	flux(L/S)	65
	rating speed(r/min)	500
	shaft power(kw)	4
	features	Low speed,low fuel consumption,low noise,high vacuum,high efficiency
	manufacture	Hangzhou Weilong Pump Co.,Ltd,(Famous in China)
pipe	65-100mm suction and discharge pipe
special function	suction time ≤5min, effective suction range ≥8, max vacuum degree ≤15 Kpa, dump angle ≥45
equipment	Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment Time for full suction less than 5min
	hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc

4.Packing,Delivery,Main products

5.FAQ

Q1:I don't want this configuration

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1unit.

Q3: Productionperiod?

A:(Truck & trailer)Within 30days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment

Q4: Payment term?

A: (Truck & trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100%T/T should be paid before delivery

Q5: Shipping?

A:(Truck & trailer) by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.) (Parts) by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
