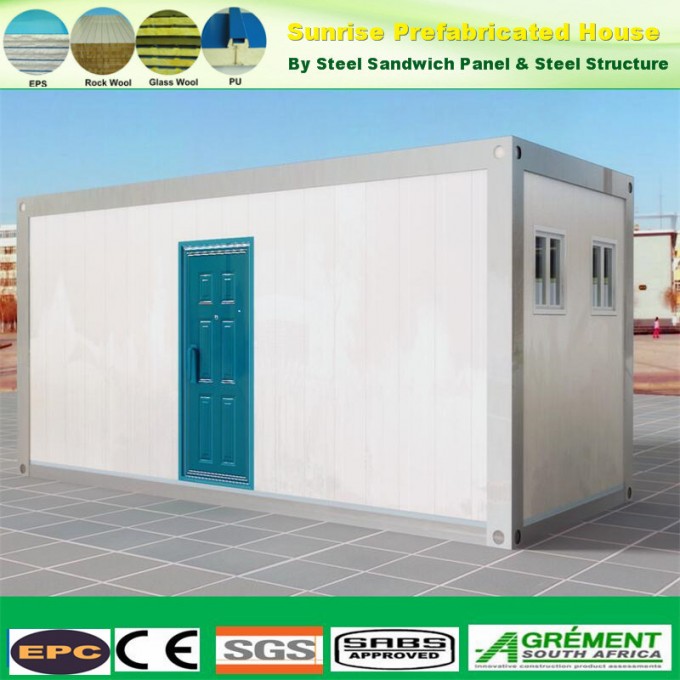

Foldable House Mobile Home Prefabricated Homes / Foldable Folding House Container

SUNRISE STEEL SANDWICH PANEL
PREFABRICATED HOUSE SYSTEM
Could be built

Prefabricated House / Prefab House / Modular House / Prefab Steel Building / Pre Engineered Building / Mobile House / Movable House / Prefabricated Home / Light Steel frame Building / Villa / Apartment / Cabin / Office / School / Hotel / Warehouse /Workshop / Plant / Carport / Restaurant / Dormitory / Temporary Living House Project


Technical Parameters

Item	Technical Parameters
Life Span	More than 20 years
Roof Bearing Capacity	50kg/m2
Second floor load capacity	150kg/m2
Corridor Bearing Capacity	2.0kg/m2
Earthquake Resistance	Richter 9
Fire Resistance	A1 level
Temperature resistant	-50°C--50°C
Snow Resistance	Snow pssure maximum 2.9KN/M2 as required
Wind Resistance	180km/h

( Special weather could do special pfab house solution to reach request)

Advantages
1. Large CapacityProduction line can produce 3000 square meters house per day
2.Advanced Technology And Customized DesignHaving four national design patents and can design as request
3.Various Choices, Beautiful Appearance New design without batter brace outer and column inner, more beautiful, easier decorated
4.Easy To Assemble And Relocatedonly need simple tools to assemble, each worker can assemble 30-40 square meters in 8 hours,wall panels are designed big panels for easier and faster installation speed,especially suitable for emergency and temporary projects

5. High Performance, Long Service Time
Material: Galvanized steel, stable and durable steel frame, good thermal insulation and noise proof steel sandwich panels, more than 20 years (Villa can reach 30 years)
6.Reused And Environment ProtectiveAll materials are green and recycled which can be recycled used for 20 times.
7.Natural Disaster ProofAll house parts jointed tight as a whole structure ,excellent performance in wind resistance(180KM/H), rain /snow / moisture /fire proof, earthquake proof(9 grade)

8. Customized drawing and production
Size, shape, room layout, room quantity, 1-2storeys for options
9.Economic House, No Building WasteAll parts made well in advance, only need to connect without cutting and weldingStructure & Material of Steel Sandwich Panel Prefab House

External Wall Panel	structure: 0.3-0.6mm (standard 0.4mm) color steel panel as face and back +EPS / Rock wool / Glass wool / PU inside + surrounded by 1.2-2.0mm hot galvanized U steel as frame for stronger and faster installationthickness: 65-260mm options considering different weather and usage request, standard 75mmheight: standard 2.6-2.65m or as house requestsize: could be produced into different size by house design requestdensity: 8kg/m3-20kg/m3
Internal Wall Panel
Roof Panel	Mainly similar as above wall panel, except the face is corrugated color steel panel for rain water easier flowing
Door and Window Panel	Structure, thickness and height same as wall panelStandard width 1200mm or different as request
Truss & Purlin	Hotgalvanizedsteelstructure
Foundation	Hotgalvanizedsteelstructure

Sunrise Prefab House Decoration Material & Facilities

House Decoration Material & Facility (easily construct same as traditional way)	External Wall	Directly using the color steel panel of wall panel, or could add PVC panel / Cement panel outside for different options
	Internal Wall	Directly using the color steel panel of wall panel, or could add Gypsum Board / Wallpaper / Wood Board for different options
	Roof	Directly use the designed well corrugated color steel roof panel
	Floor	Ceramictiles/Wooden Floor/PVC roll
	Ceiling	Gypsumboard, PVC
	Door	Security door/Wooden door/ Aluminum alloy door
	Window	PVC or Aluminum alloy sliding window with double/single glass with screen or not
	Kitchen	Kitchen cabinet, washing sink or others
	Bathroom	Shower room, toilet, glass and washing basin
Electric System	Fit by local voltage
Water System	Fit by local standard

( All the fittings and Decoration Material are fitted as request, different material for options )



Customized House Drawing & Special Production




Installation, Production, Packing & Delivery




FAQ

How long is your delivery time?Generally in 15-25days, variable by house design and quantity.

How about shipping?We ship the goods by 20' and 40HQ container Usually one 20 feet container can load about 50-60 square meters' house, 40HQ container can load about 120-140 square meters' house

What's your Payment term?50% deposit by TT in advance, 50% TT balance before loading; or 100% LC at sight

Would you send engineer to help us to install the houses?We will send our engineer to the construction site to help you to install the houses and train well your staffs.

Would you help us to buy the facilities such asdecoration material, water, electric & roof system material?Yes, it is our pleasure, we will help you to buy all of them to finish a complete house installation and could live in directly.

How fast to install a house? 90% house main body material are finished well at factory in advance, so it would savetime and labor cost largely. 1 Labor could finish 30-40m2 house installation in 8 hours. Our engineer wouldhelp you to train your workers to install better and faster to save your cost.
==================================================================
Except the above Temporary Living Prefabricated Steel Sandwich Panel House, we also could produce the followingPermanent Living EPS Cement Sandwich Panel Prefabricated House, please check its details from the product groups at our " Made-in-China" website. Both of the two different house systems would satisfy your different house living purposes.


Warmly welcome to contact us to get more information and visit our factory to talk the details face to face!"GIVE PEOPLE A NEW HOME"
