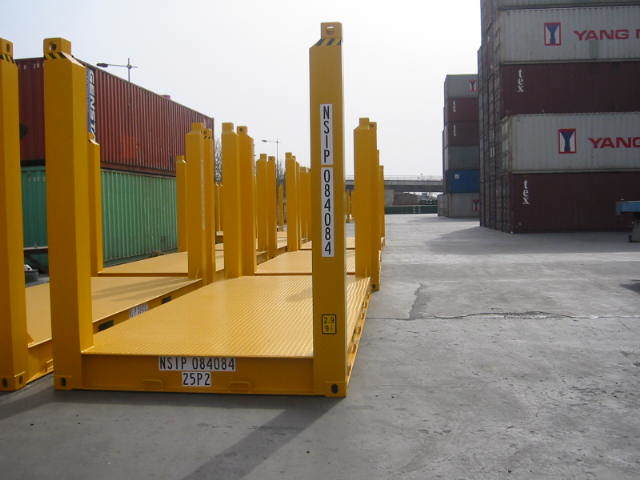

Flat Rack Containers (20&40FT)

Flat Rack Containers are designed to transport cargo larger than the dimensions available in General Purpose and Open Top Containers. They consist of a flat bed with fixed or collapsible ends. If you are in need of a flat rack shipping container then give us a call. Our Flat Rack Containers are a pmium product and sell at a competitive price. We have 20ft flatrack containers and 40ft flat rack containers available, so give us a call or fill in the instant flat rack shipping container quote below. <o&colon; P>

Flat Rack Container Specifications<o&colon; P>
We have a range of new and used flat racks available in 20-foot and 40-foot sizes in both fixed-end and collapsible configurations. <o&colon; P>
Flatracks are ideal for shipping oversized items such as&colon; <o&colon; P>
· Vehicles & Heavy machinery<o&colon; P>
· Large industrial parts<o&colon; P>
· Construction materials<o&colon; P>
· Large Water Tanks<o&colon; P>
Flat rack container types include&colon; <o&colon; P>
· 20' Collapsible-End Flat Rack Containers<o&colon; P>
· 20' Fixed-End Flat Rack Containers<o&colon; P>
· 20' Platform Flat Rack Containers<o&colon; P>
· 40' Collapsible-End Flat Rack Containers<o&colon; P>
· 40' Fixed-End Flat Rack Containers<o&colon; P>
· 40' Platform Flat Rack Container<o&colon; P>

tank containe
ISO Type	22T8		IMDG Type				UNT50
trait			Complies with the standards					ISO668 , ISO1496 , ISO1161 , GB150
Overall dimensions			length ( mm )					6058
			Width ( mm )					2438
			Height ( mm )					2591
frame materials			Q345D
weight			Curb weight ( kg )					7800
			Total weight ( kg )					18000
tank
Tanks size		length ( mm )				5940
		Inside diameter ( mm )				φ2400
		Wall thickness (cylinder/sealing head) ( mm )				14.82/14.78
materials		cylinder /sealing head				16MnDR/Q345D
Total volume ( L )		24000
tank container is suitable for		Transportation LPG				Unit volume filling weightKG/L				0.42
Maximum load (kg)		10000
Design pssure ( MPa )		1.8			Design temperature ( °C)					-40~55
Maximum allowable work pssure ( MPa )		1.89			hydrostatic test pssure (Mpa)					2 .6
Tanks inside counter-measures liquid fluctuation plate number		3			Manhole diameter (mm)					500
Main configuration
Loading and unloading gas-liquid valve		1Set		Valve control agencies					1Set
liquidometer		1unit		Relief valve					2Set
Pressure instructions thermometer		1Set		Fire extinguisher					2unit
Pressure gauge		1Set		Valve box					1unit
release valve		3unit		Tank sunshade heat insulation cover					1Set
