Detailed Description
The Vacuum sewage suction truck series of our company are mainly on the pumping and transporting manure, mud, gravel and other debris mixed with a liquid suspension for the urban and rural sanitation sector. They are particularly suitable for pumping, shipping and disposing of the sewage sludge within, especially the sucked sewer stones, bricks and other large objects. The two ways of emission are pssure discharge and self-discharge. With high efficiency of pumping, self-absorption, self-discharge and direct irrigation, easy operation, etc. It is really a good choice for all kinds of municipal department and town sanitation.
Our factory has passed ISO9001-2000 internatio
nal quality system certification. Besides, the product of us all has passed the certification of 3C and is a well-known brand in China.
The specfic parameters will be shown in the following table.
| items | units | parameters |
| product name | | DongfengDLKsuction sewage truck |
| chassis type | | EQ1081TJA |
| The actual volume | T | 4 |
| The total mass | kg | 7800 |
| Curb weight | 4625 |
| Ratedcontained mass | 2980 |
| Vehicle LWH | mm | 5970×2140×2550 |
| Wheelbase | 3100 |
| tread | Front wheel | 1750 |
| Reer wheel | 1586 |
| approach/Departure angle | ° | 18/14 |
| Number of tires/specification | | 6 / 7.00-16 PR |
| Displacement/power | L/ps | 3856 /120 |
| The maximum speed | km/h | 3856 /120 |
| Engine | Chaoyang Environmental protection CY4102BZLQ, 120 HP
|
| Special performance | The biggest distance for pumping≥6meters
time for full pumping≤5min |
Special section:the power take off, transmission shaft, special vacuum sewage pumps, high pssure molding fecal tank, pipe network system components, windows and hand-washing device.
Vacuum pump:Using the advanced technology sewage suction pump with high efficiency |

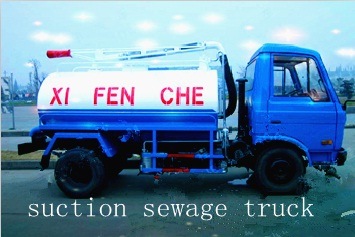

Product Image
