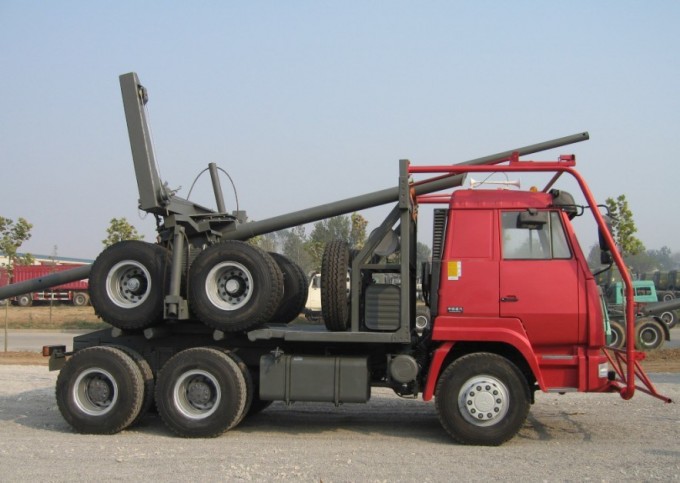

Sinotruk Timber Hauling Truck
This timber hauling truck is used to transport log, It can transport 16m log at most
Its advantages are as follows:
1: Cab defence is for choice to avoid touching tree branches
2: Equipped with CNHTC 336HP and 371HP engine as well as HW19710 transmission
3: Ratchet wire rope log lock system and 10m adjustable can be used for logs of any length.
4: Both main body and trailer of the truck are equipped with log carrier turntable
5: Strong frame is solid and durable
6: Trailer can be fixed to main body while the empty truck is working. The transport efficiency can be uplifted and its cost performance is better than the similar products home and abroad.

Cabin	L2000 cabin with one bed, 70° hydraulically tillable to the front. as attached photo for ref only
Vehicle Main Dimensions	(L x W x H)mm		8400x2495x3250
	Wheel base (mm)		4700
	Wheel track (front/rear) (mm)		2020/1850
	Approach/Departure angle(°)		17/16
Weight in KGS	Tare Weight			7500
	Front axles loading capacity			1x6000
	Rear axles loading capacity			1x10000
Engine		Brand		YC
		Model		6J190-33
		Type		4-stroke direct injection , 6-cylinder in-line with water cooling, displacement: 6.494L
		Horse Power(HP)		150HP
		Emission standard		EURO III
Gearbox		HW90710C with 10 forwards and 2 reverses
Tire		10.00R20 All steel radial tire is available
