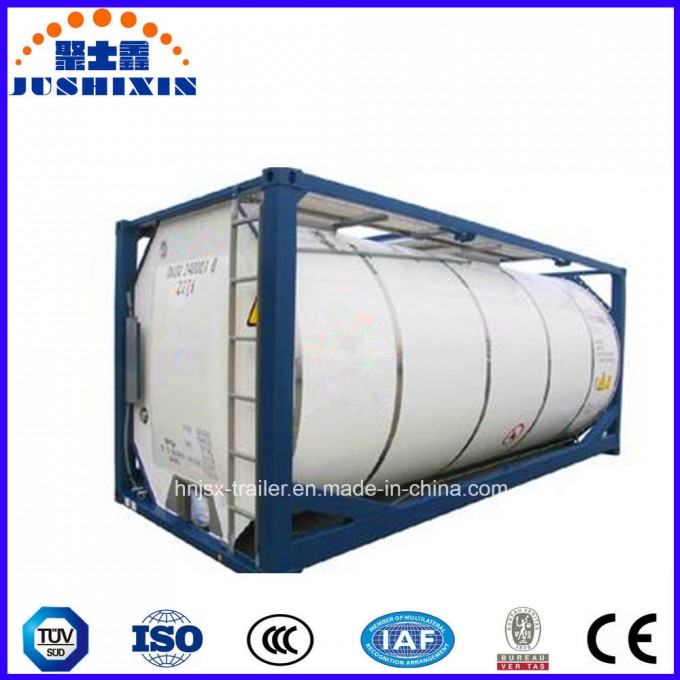

20feet 24cbm Emulsion T11 Tank Container with Csc, , Lr or BV Certificates

20Feet 24CBM Emulsion T11 Tank Container with CSC,,LR or BV Certificates

Specification for 20Feet 24CBM Emulsion Tank Container:

20Feet24CBMEmulsionT11TankContainerwithCSC,,LRorBVCertificates
OuterDimension		6058x2438x2591mm(adjustable size as clients' requirement)
							Transportation/Storagematerial				Emulsion
							Maxgrossweight				36000kg
Tareweight				3.6tons(±3%)
Typeapprovals				UNportabletankT11,IMDG,ADR/RID,TIR,CSC,UIC,TC,UKDfT,US-DOTCFR49
NominalCapacity				24000L(±0.75%)
PortableTankinstruction				T11
Designcode				VIIIDIV1
Designtemperature				-40~+130ºC
Desginpssure				4bar
Externaldesginpssure				0.41bar
Material
frame				SPA-Horequivalent
TankShell				SANS50028-7Type1.4402/1.4404(C<=0.3%),ASTMA240316L
Finish				ColdRolled2B
TankHeads				SANS50028-7Type1.4402/1.4404(C<=0.3%),ASTMA240316L
Finish				ColdRolledandpolishedwith180grits
Maximumallowableworkingpssure				4bar
Testpssure				6bar
24000LTank
Externaldesginpssure				0.41bar
ShellNominal				4.40mmMinimum:4.2mm
HeadNominal				4.70mmMinimum:4.50mm
Manhole		500mm,8mm×90mmNeckProfiledandCompensated,FortValepartNo.E4D/8518025BT.8pointfixingwithSuperTanktytLidsealforcorrosivecargo
SafetyReliefAssembly		1×2½"BSPSupermaxiHighflowreliefvalve,pssureonlymodelsetat+4.4bar(63.8psi),FortValePartNo.010/16300.1×provisionforasecondvalve.
Airlinevalve		DN40ballvalveterminatingwith1½"BSPconnectionandcap,FortValepartNo.530/0000G.
Topoutlet		Provisiononly,DN80tankpad,FortValepartNo.368/0800,fittedwithPTFEgasket&blindflange.
BottomDischargeProv.		45°Hi-LiftFootvalvefittedwithaclampedbutterflyvalveterminatingwitha3"BSPspigotwithcapandchain,FortValepartNo.804/0010A.
Spillbox		Middlespillboxfittedaroundmanlidandsafetyreliefvalve;rearspillboxfittedaroundairlinevalveandtopoutletprovision.Eachboxequippedwith2PVCdraintubes.
SteamHeatingSystem		8longitudinalheatingchannelsprovided,givingatotaleffectiveheatingarea10squaremeters.Workingpssure4bar,testpssure6bar.Inlet3/4"BSP,outlet3/4"BSP,dustcapfitted.Adrainageprovisionwith3/8"BSPisfittedtotheoutletpipe.
RemoteControlsystem		3mmstainlesssteelcablecoatedwithplasticisfittedtothebottomrailofrightside.Andanemergencydecalisfittedabovethecable.
Fusiblelink		Provision
Dipstick		Provision,dipstickbracketisfittedtotheneckringofthemanlid,
Thermometer		Dualscalethermometer,-40~160˚C(-40~320˚F),fittedonrearendtolowerleftside.
documentholder		Φ80mmplasticdocumentholderisfittedtotherearrighthandsidebeam.Adrainholeisprovidedatthelowestpoint.
Insulation&cladding
Insulation		50mmthickRockwool(50kg/m³)wherepossible
Cladding		Shell	1.8mmthickwhiteGRP(RAL9010)withbuttjoints.With6-offstainlesssteelstrip(0.8*60*C).Sealedbysiliconesealant.Φ10mmdrainholeperpanelonbottom.
		Ends	2mmthickmouldGRPend
frameDetails
Type		FullframebeamdesignISO1496/3(1CC)withhollowsectionbottomrails.
Cornercastings		ISO11618-offintotal
Ladder(s)		Non-slipstainless(304S/S)atrearrighthandside
Walkway		Ftype475mmwidenon-slipaluminium
Earthinglug		stainless(304S/S),fittedtorearbottommember
Painting		CarbonsteelshotblastedtoSa2½profile.
COATING/INSULATION
Tests				36000kg
Stackingat				192000kgs
TransverseRackingtest				150000Newtons
Impacttestat				SRSMethoda/atR=36000kg
SUBSTANCESSUITABLEFORTRANSPORT:Inaccordancewiththerequirementsoftheapplicableregulationsandtheconstructionofthetankanditsequipment.(Substancesnotcompatiblewiththetankand/oritsaccessoriesareexcludedfortransport)

1. The functions of this series container tanker:
***This series tank semi trailers aresuitableforthetransportationoftransport Chemical liquid like HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClO,Alcohol Acid,Emulsionetc.,internal strengthen lozenge expanded metal mesh transition,Plastic-lining thickness 16mm anti corrosion.
*** The volume varies widely from 20 cube meters to 52 cube meters, we can manufacture it according to your needs.

2. More photos for the tank containers:





Everything ready for this Tank container to shipping:




3.Design proposal of 20 feet tank container

---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mmbaffle;
---Two feed inlets,bigger manhole covers, 2 NOS. pssure vent valves( breather valve) , at the end ofthe bottom , DN80dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
---framework is made of High quality steel, each one ladder atback and forth.With twoacid resistanttube,two 4kg fire extinguishers.

4.Optional parts for the tanker container:
Volume: 20 cube meters to 52 cube meters
Material: Carbon steel/aluminum/stainless steel material
Medidum:HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClOetc. Chemical Liquid.

5.BRIEFINTRODUCTIONTOOURFACTORY:
He Nan Ju Shi Xin,aspecialvehiclemanufacturingcorporation
withtheprofessionalexperiencemorethan 30 years,certifiedbytheChinese
governmentmanufacture,Majoredinsemitrailer,specialvehiclemanufacturing,our
productsaremainlyexportedtoPhilippine, Ethiopia, Thailand,Myanmar,Vietnam,Congo,Kenya,Tanzania,etc...Morethan20countries.

6.FlEXIBLE SERVICEWEPROMISEDFOREACHITEMFROMOURFACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible"Entire Journey" service;
>>>CCC&ISOAgreement,1YearGuaranteeTerm,Main-beamLifetimePromise;
>>>SmallOrderCanBeAccepted;
>>>AnyColor&LogoAvailable;
>>>TheProductDimension+SpecificationsCanBeDesignedAsYourNeeds.

7.Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data → sign contract (P/I) → 30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news → completing production;
**Balance payment → ex works → shipment → custom clearance → A/S service for 1 year.
