ISO Chemical Corrosive Poisonous Transport Tank Container with Competitive Price

ISO Chemical Corrosive Poisonous Transport Tank Container with Competitive Price




Specification for 20Feet 24CBM HCL Acid Tank Container:

Dimension of the 20Feet 24CBM HCL Acid Tank Container
Main Specificaion
Length:		6,058mm
Width:		2,438mm
Height:		2,591mm
frame Material		Q345B square steel tube
No. of frame lock		4
Top Walkway		Anti-skid net spad on both side
Ladder		Two units(on the front and rear cover)
Tank Specification
Tank Shape		Cylindrical
Tank Material		Carbon Steel
Tank Inside		Plastic-lining thickness 16mm
Thickness of Tank body		5mm
Thickness of Tank Cover		6mm
Thickness of the battle		3mm
Tank Capacity		24000L
Manhole		Dia. 20inch seal plastic-lined steel tank cover
Valve		2pcs 3inch steel lined fluororubber ball valve,brave valve
Pipeline		3inch*4Meters
Painted		Inner Tank			Origin white plastic
		Face Painted			To the order of customer
Design Code		JB/T4782-2007 and GB18464.1-2006
Note: All the details not mentioned above should comply with Chinese regulations. If any component or structure changed, the price shall be modified accordingly.

1. The functions of this series container tanker:
***This series tank semi trailers aresuitable for the transportation oftransport Chemical liquid like HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClOetc.,internal strengthen lozenge expanded metal mesh transition,Plastic-lining thickness 16mm anti corrosion.
*** The volume varies widely from 20 cube meters to 52 cube meters, we can manufacture it according to your needs.

2. Manufacturing process for Carbon Steel tank container:
Cutting,forming,Welding for the carbon steel Tank Container:

Polishing,Painting:

Everything ready for this Tank container to shipping:

Detailed photos for the Tank container:

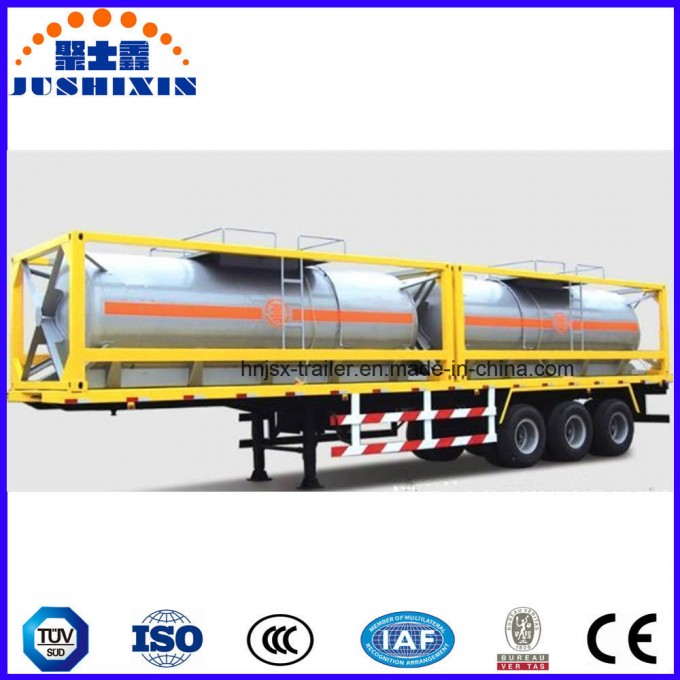

3.More Styles for the ISO tanker container:





4.Design proposal for the 20feet ISO tank container:
---Net capacity: not less than 20cubic; Shell of tank container Materials using Wisco Q235 High quality carbon steel 6mmbaffle;
---Two feed inlets,bigger manhole covers, 2NOS. pssure vent valves( breather valve) ,at the end of the bottom ,DN80 dump valve(discharge valve). Screw of Openings and valves adopt stainless steel screws, single coaming board on the top of tank Molybdenum red reflective tape;
---framework is made of High quality steel, each one ladder atback and forth. With two acid resistant tube, two 4kg fire extinguishers.

5.Optional parts for the tanker container:
Volume: 20 cube meters to 52 cube meters
Material: Carbon steel/aluminum/stainless steel material
Medidum:HYDROFLUDRIC ACID HCI 32%,CAUSTIC SODA NaOH 32%,NaCl. NaClOetc. Chemical Liquid.

6.BRIEF INTRODUCTION TO OUR FACTORY:
He Nan Ju Shi Xin, aspecial vehicle manufacturing corporation
with the professional experience more than 30 years, certified by the Chinese
government manufacture,Majored in semi trailer, special vehicle manufacturing, our
products are mainly exported to Philippine, Ethiopia, Thailand, Myanmar, Vietnam,Congo, Kenya, Tanzania, etc...More than 20 countries.

7.FlEXIBLE SERVICE WE PROMISED FOR EACH ITEM FROM OUR FACTORY:
>>>Offering the one-stop full lifecycle services;
>>>Our vehicle users will receive 24-hour uninterruptible "Entire Journey" service;
>>>CCC&ISO Agreement, 1Year Guarantee Term, Main-beam Lifetime Promise;
>>>Small Order Can Be Accepted;
>>>Any Color &Logo Available;
>>>The Product Dimension +Specifications Can Be Designed As Your Needs.

8.Buying Guides
**You please send us your enquiry;
**We shall reply you with the quotation within 12 hours;
**We negotiate on the configuration that you need;
**Confirmation of the tech data →sign contract (P/I) →30% deposit (or L/C issuing)→ production;
**Manufacturing process updated news →completing production;
**Balance payment →ex works →shipment →custom clearance →A/S service for 1year.
