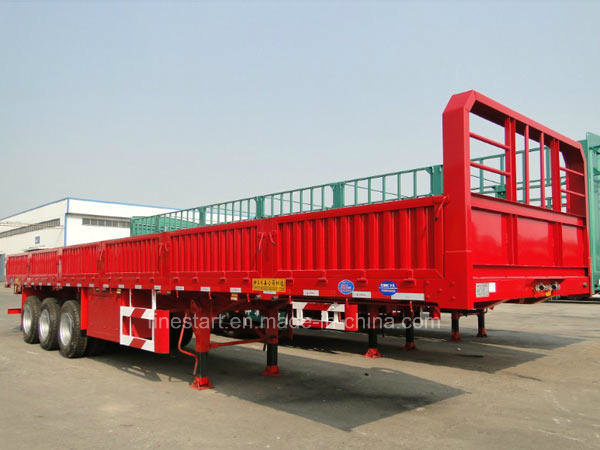

Side Wall Cargo Semi Trailer or Truck Trailer of 40FT

Side Wall Cargo Semi Trailer of 40FT

Cargo Semi-trailer 40FT
Item	40FT Cargo Semi-trailer-40T
Tare Weight	7500kg
Pay load	40000kg
Overall dimension(mm)	12500mm×2500mm×3000mm
Chassis Specification
Chassis frame	I beam,Q345, high tensile steel
Sidewall	600mm height,1.5mm thickness
Flat bed thickness	3mm
Axles	FUWA brand 13 T/PER ,3 AXLES
Tire	12R22.5,radial tubeless tyre, 12pieces
Spare tyre	One set tyre,including one carrier
Rim	8.5 12pieces
Suspension	Germany design mechanical suspension
Spring leaf	11 pieces
King pin	JOST 2"
Landing gear	JOST brand,two speed, manual
Brake system	WABCO RE6 relay valve ;T30/30 spring brake chamber;40L air tank
Lock sets	12 sets standard
Accessories	One piece tool box
Painting	Complete chassis sand blasting to clean rust ,1coat of anticorrosive prime,2coats of final paint

Different types semi-trailers of our factory!Box or Van Semi trailers are the most common type. Standard lengths are 28ft /32ft /34ft/36ft /40ft /45ft/48ft /53ft /57ft,etc.Flatbed Semi-trailersconsist of just a load floor and removable side rails and a bulkhead in front to protect the tractor in the event of a load shift. They can haul almost anything that can be stacked on and strapped down.Car Carrier Semi-trailerscarry multiple cars, usually new cars from the manufacturer. Sometimes,car carriers often carry used vehicles as well. Similar variants can carry fork lift trucks, light commercial vehicles and agricultural tractors.Dump Semi-trailers (Tippers)are trailers in which one end can be raised to allow the cargo (often building materials or Agricultural produce) to slide out the other end. Commonly, they are hinged at the rear and raised at the front, but side-unloading dump trailers also are used.Dry Bulk (Powder tankers)Semi-trailersresemble big tankers, whichare used for cement, sand,barite, flour, and other dry powder materials.Curtain SidersSemi-trailers are similar to box trailers except the sides are movable curtains made of reinforced fabric coated with a waterproof coating. The purpose of a curtain sider is to combine the security and weather resistance of a box trailer with the ease of loading of a flatbed.Livestock Semi-trailersare used to haul livestock such as cattle, horses, pigs, sheep, etc. Commonly, they have two levels (or three for hogs) to maximize capacity.Lowboy(Low-loader) Semi-trailers are a type of flatbed in which the load floor is as close to the ground as possible, most commonly used to haul heavy equipment, cranes, bulldozers, etc.Refrigerator Box Semi-trailersare box trailers with a heating/cooling unit (reefer) attached, used for hauling produce, frozen foods, meat, flowers, etc.Refrigerator tank Semi-trailersare well insulated or refrigerated to haul bulk liquid foods, such as liquid sugar, water, wine, milk or juices.SidelifterSemi-trailers have hydraulic cranes mounted at both ends of the chassis allowing for the loading and unloading of shipping containers without the need of a forklift or other container-handling equipment.Tank chassisSemi-trailers are used for hauling liquids such asgasolineandalcohol. some are designed with a lowered centre of gravity to ensure greater stability. Generally bottom loaded with the ability to recover any waste vapor for safety reasons.Sincerely look forward to your cooperation !

Payment Terms:
Payment Conditions:30% down payment by T/T and the balance payment should be T/T or irrevocable L/C at sight.
Delivery time:30 days from the date of receiving down payment. All payment should be received before delivery in China.

Any questions and requirments,contact us now!
Mobile:+86 15063352256
