Detailed Description

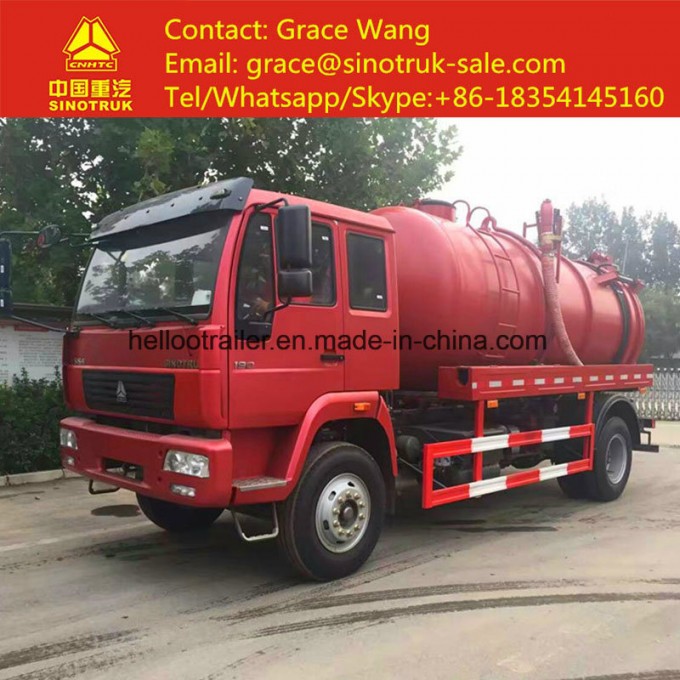

2017 sinotruk New co
nditionsewage suction truck with top quality 4x2 10 cubic meters fecal :
| Truck Model | ZZ1167M4617CLeft hand drive |
| TotalSize | 8300*2496*3633mm |
| Cubic meter of Tanker | 8 M3 tanker body |
| Power Take off | HW70 |
| vacuumpump | import from Italian |
| Approaching angle/Departure angle(°) | 16/18 |
| Overhang(front/rear) (mm) | 1500/2200 |
| Wheel base (mm) | 4600 |
| Max speed(km/h) | 90km |
| Curb weight(kg) | 16580 |
Engine
(Steyr technology, made in China) | Model | WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
| Fuel type | Diesel |
| Horse Power, max(kw/rpm) | 266HP |
| Emission | EURO2 |
| Fuel tanker capacity(L) | 300 |
| Transmission | Model | HW13710CL |
Brake system
| Service brake | Dual circuit compssed air brake |
| Parking brake | spring energy, compssed air operating on rear wheels |
| Steering system | Model | ZF8098 |
| Front axle | HF7Drum, Steering with double T-cross section beam,
|
| Rear axle | ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels
2*16000KG capacity |
| Tyre | 295/80R22.57 pcs with one spare |
Electrical system
| Battery | 2X12V/165Ah |
| Alternator | 28V-1500kw |
| Starter | 7.5Kw/24V |
| Cab | HOWO76cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver's seat and rigid adjustable co-driver's seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
Detail images:
Our Services:
1. Reply your inquiry in 12 working hours;
2. Experienced staffs answer all your questions;
3. Customer's design is available for certain products(OEM);
4. Spare parts for all types of engine machinery with reasonable price;
5. Different brand of trucks can be provided with competitive price.
After-Sales Service :
1.12months for 3key parts (engine, transmission, axle).
2.Tracking service time: lifelong.
3.Third-party service for overseas client.
4.Use the steps Description
5.Parts supply on time
Authorized Certificate:
CCC(China Compulsory Certification)
BV (Bureau Veritas)
ISO9001
Related products:
FAQ:
1. Q: Are you amanufacturer or trading company?
A: We are trailer manufacturer.
2. Q: What's you delivery time?
A:25-30days after advance deposit.
3.Q:What payment do you accept?
A: we accept T/T and L/C at most ;other payment is negotiable
4.Q:What is warranty time?
A:Main frame,one year; vulnerable parts, three month; other parts,half year.
5.Q:What's your after sale service?
A:We provide technical support for our products and whole life parts supply.
Welcome you and your friends to visit our factory at any time !!!
