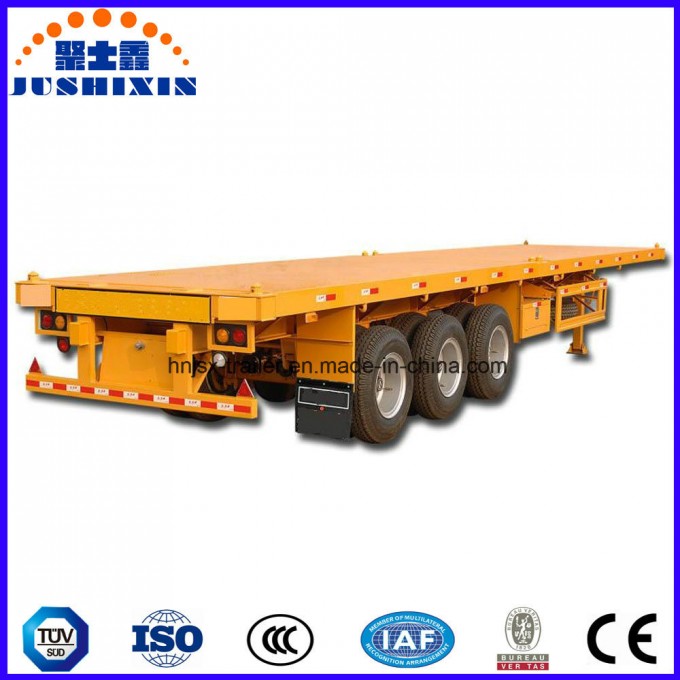

[3axles Shipping 40feet Flatbed Co
ntainer Trailer Truck/Semi Trailer]
| ProductFeatureforTruckTrailer |
1.It is specially used for the transportation of Truck Trailers. Can be used over and over again, with sufficient strength for Truck Trailers.
2.Using co
ntainer transhipment cargo, the goods can be loaded directly in the warehouse of the co
nsignor and delivered to the warehouse of the consignee. When
changing the vehicle or ship, the goods need not be removed from the box for replac
ement.
3.Quick loading and unloading can be carried out, and the Truck Trailer can be co
nveniently changed from one means of transportation to another transportation tool.
4.Easy to fill and unload the goods and meet the perso
nalized needs of customers. According to the customer needs tooling guarantee, the quality is stable, the
performance is reliable,for the Truck Trailer.
5.This series Truck Trailer are mainly suitable for the MID/Long distance transportation of containers,this series Truck Trailer divides the flatbed co
ntainer type.
6.The capacity for Truck Trailer is 50tons, we can manufacture it according to your needs a
bout the Truck Trailer.
7.The axles can be Fuwa /BPW a
bout Truck Trailer with different to
nnages by your need with price differences.
8.The suspensions can be: Air suspension, mechanic (leaf spring suspension), bogie suspension, for the TrcukTrailer.
9.The loading deck can be co
ncave beams, tire appeared cover, totally flatbed, or extendable,for Truck Trailer.
| ProductParameterforTruckTrailer |
| Parametersof Truck Trailer |
| TareWeight | 6000kg | LoadingCapacity | 50T |
| OutsideDimension | 12450*2500*1580mm | Wheelbase | 6800+1310+1310mm |
| AxleAmount | 3 | Piecesofleaf-spring | 10 |
| Suspension | HeavyDutyLeafSpring | ColorandLogo | Optionalandcustomized |
| TyreAmount | 12+1(SpareTyre) | TyreSpecifications | 12.00R20 |
| MainBeams | Q345B/ST52-3 | CrossBeams | Q235 |
| MainBeamsHeight | 500mm | UpperFlange | 14mm |
| Midweb | 6mm | LowerFlange | 12mm |
| SideBeam | 160mm | BrakeSystem | Dual-pipesbrakingsystem/ABS |
| rakeChamber | Fronttwoaxleis30airchamber | ElectricalSystem | 24V,7coresocket |
| ToolBox | Optional | SpareTyreCarrier | 2 |
| Sidebeam | Channelsteel | KingPin | 50#or90# |
| TIP: The above parameters are just general configuration about the Truck Trailer.If you have specific requirements, such as truck trailer style, total load, axle structure, and even important parts, we can customize it for you about this Truck Trailer. |
| StructureandPrincipleforTruckTrailer |
1.Compared with "monomer" cars, Truc Trailer can improve the comphensive economic benefits of road transportation.The transportation efficiency can be increased
by 30-50%, the cost is reduced by 30-40%, and the oil consumption decreases by 20-30%.
2.The frame is the beam type structure, the longitudinal beam adopts flat or gooseneck.The height of the web is from 400mm to 550mm, the longitudinal beam adopts
automatic submerged arc welding, the frame adopts the shot blasting treatment, the beam is put into the longitudinal beam and welding the whole.
3.The structure is reasonable by using the tandem type dry plate spring and suspension support.It has strong rigidity and strength, which is used to support load buffer.
4.The Truck Trailer walking structure uses high strength international steel, the vehicle is light weight, and guarantees the anti-distortion, anti-seismic and anti-turbulence
ability, and meets different pavement and carrying capacity.
| ProductDetailsforTruckTrailer |
about the detailsforTruck Trailer:
In order to produce a high quality product, the details are very important.The important parts we use, such as,car axle, brake system, shock absorber system, even steel plate.are well-known brands in China and even the world. |
| ShippingandPackingforTruckTrailer |
about the packing for TruckTrailer:
We'll try to help you save transportation costs.We have been in contact with many customers, so we have a very good ways for product transportation. |
