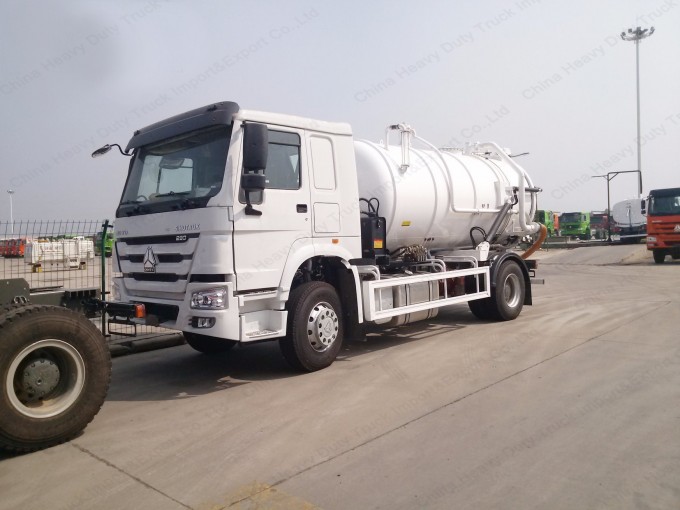

| Sewage Suction Vacuum Truck Technical Specification | ||
| Product Name | Sino howo SEWAGE SUCTION TRUCK | |
| Chassis Model | ZZ4257S3241W | |
| Fuel type | Diesel | |
| Emission Standard | Euro 2 | |
| Cabin | HW16 | |
| Whole Vehicle main dimensions (mm) | Overall dimensions (LxWxH) | 9500*2400*3300 |
| Wheel base | optional | |
| Min. ground clearance | 480 | |
| Weight data (kg) | G.V.W | 25000 |
| Curb weight | 1200 | |
| Max payload | 16000 | |
| Whole vehicle main performance | Max. speed (km/h) | 95 |
| Max. slope of climb (%) | 30 | |
| Engine | Model | WD615 47 |
| Maximum power | 336HP | |
| Number of cylinders | 6 | |
| Displacement (ml) | 9.726 | |
| Gear box | Model | 9 |
| Number of gears | 9 forward gears &1 reverse | |
| Axle | Front Load capacity (ton) | 7 |
| Rear Load capacity (ton) | 18 | |
| Steering Wheel | left/right hand drive | LHD,RHD |
| Brake system | Service brake | Air braking |
| Electric device | Rated voltage | 24V |
| Tyres&Quantity | 10.00-20& 6+1 | |
| Sewage Suction Vacuum Truck Special Tank Description | ||
| Tank | Material:high quality carbon steel Structure:welding,vacuum tank,Cylindrical | |
| capacity(L) | 6000 | |
| thickness of material | 6mm | |
| pump | type | vacuum pump |
| model | 65QZ-40/45N | |
| flux(L/S) | 65 | |
| rating speed(r/min) | 500 | |
| shaft power(kw) | 4 | |
| features | Low speed,low fuel consumption,low noise,high vacuum,high efficiency | |
| manufacture | Hangzhou Weilong Pump Co.,Ltd,(Famous in China) | |
| pipe | 65-100mm suction and discharge pipe | |
| special function | suction time ≤5min, effective suction range ≥8, max vacuum degree ≤15 Kpa, dump angle ≥45 | |
| equipment | Equipped with power take off,transmission shaft,fecal tank, pipe network,fecal pipe for observing and cleanout equipment Time for full suction less than 5min | |
| hydraulic lift and lock discharge cover. sewage tube,vacuum pump,recovery,etc | ||
| Q1:I don't want this configuration |
| A: The configuration can be changed according to your needs |
| Q2: Minimum order quantity? |
| A: MOQ is 1unit. |
| Q3: Productionperiod? |
| A:(Truck & trailer)Within 30days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment |
| Q4: Payment term? |
| A: (Truck & trailer) 30%T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100%T/T should be paid before delivery |
| Q5: Shipping? |
| A:(Truck & trailer) by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.) (Parts) by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea |
| Q6: Can you supply some quick-wear truck or semi trailer parts ? |
| A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc. |
