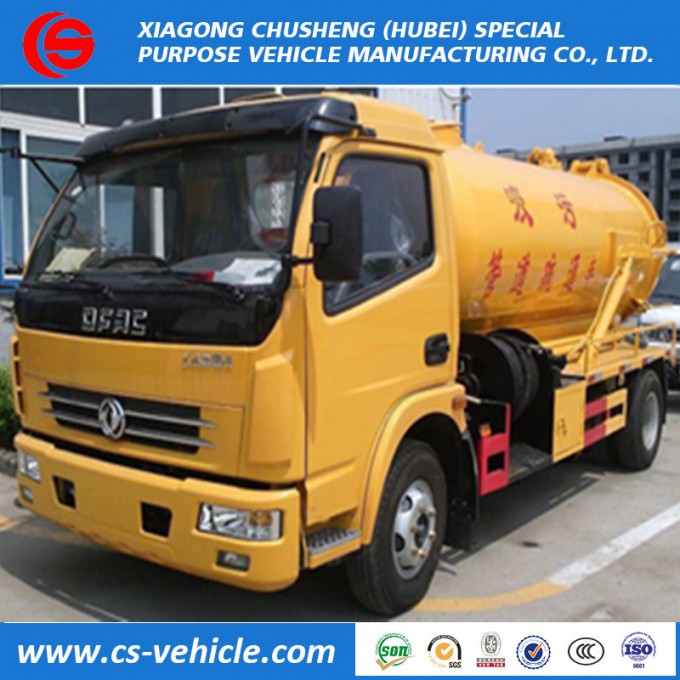

Cheap Price Dongfeng 4X2 8m3 Vacuum Sewage Suction Tanker Trucks

Cheap price Dongfeng 4X2 8m3 Vacuum Sewage Suction tanker Trucks

Features
A vacuum truck is atank truck with aheavy duty vacuum designed to pneumatically load solids, liquids, sludge or slurry through suction lines typically 2-4" in diameter with 3" being the norm. The typical pump used in the industry is the rotary vane vacuum pump. The truck can be configured to be adirect PTO/belt or aPTO/hydraulic drive system. There are two different ways to mount the pump either directly on the truck with PTO drive or on the trailer with apony motor. Each application has different handling characteristics.

The trucks are often used by towns and municipalities for street cleanup, sewers, individual septic systems and can also be used for cleanup of contaminated soil.The trucks are used in the cleaning of sanitary sewer lift stations and in the pump out of grease interceptors that are required at many restaurants. The trucks are mostly used in the petroleum industry, for cleaning of storage tanks and spills. They are also an important part of drilling oil and natural gas wells, as they are located at the drilling site. Vacuum trucks are used to remove drilling mud, drilling cuttings, cement, spills, and for removal of brine water from production tanks. They dispose of this in sump pits, treatment plants or if within safe levels may be spad out in afarmer's field.

Technical parameter for Sewer cleaning trucks

Condition	New condition/Left hand drive/4x2
Chassis	Brand		Dongfeng
	Curb weight(kg)		9450 kg
	Wheelbase(mm)		3800 mm
	Dimensions(mm)		8200*2500*3200 mm
	Front/Rear Axle loading(kg)		6300/13000 kg
	Wheel track (front/rear) (mm)		1960/1855 mm
	Front/Rear overhang(mm)		1335/1880 mm
	Approach/Departure angle(°)		26/20
	Max. driving speed(km/h)		95 km/h
	Battery		12V*2 115Ah*2
	Clutch		Reinforced diaphragm clutch
	Brakes		Service brake: dual circuit compssed air brake Parking brake:(emergency brake): spring energy, compssed air operating on rear wheels Auxiliary brake: engine exhaust valve brake
	Steering Gear		Power steering, hydraulic steering with power assistance
	Tire	Quantity	6 pcs with one spare tire
		Specifications	10.00R20
Transmission	Manual type, 6 Forwards and 1 reverse
Cab	It can accommodate three people. With Air Conditioner
Engine	Brand		Chaochai
	Model		CY4102
	Fuel type		Diesel
	Displacement(ml)		5193 ml
	Power(kw)		88 kw
	Horsepower(HP)		120 HP
	Cylinder number		4
	Emission standard		Euro 2
Sewage Suction & Cleaning System
Sewage tank	Capacity(cbm/liters)		8.0 cbm/8,000 liters
	Tank material		Q235 carbon steel
	Thickness(mm)		6.0 mm
Vacuum pump	Absolute working pssure(Pa)		400 Pa(99.6%vacuum degree)
	Academic suction speed(L/s)		45 L/s
	Rotation speed(rpm)		500 rpm
Inlet and Outlet pipe	Diameter(mm)		108 mm
	Length(m)		5.0 m
	Quantity(pcs)		1 pc
Main parts	1. Water-gas separator 2. Oil-gas separator 3. Four way valve 4. Safety valve 5. Anti overflow valve 6. Anti overflow warning device 7. Hydraulic control rear cover 8. Tipping sewage tank body

More detailed pics for Sewer cleaning trucks




Main Parts on Sewer cleaning trucks
