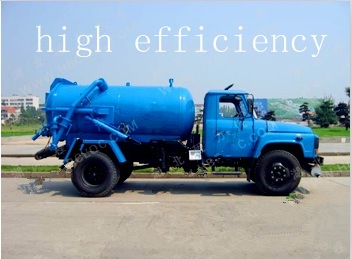

Dongfeng 140 Suction Sewage Truck

The Vacuum sewage suction truck series of our company are mainly on the pumping and transporting manure, mud, gravel and other debris mixed with a liquid suspension for the urban and rural sanitation sector. They are particularly suitable for pumping, shipping and disposing of the sewage sludge within, especially the sucked sewer stones, bricks and other large objects. The two ways of emission are pssure discharge and self-discharge. With high efficiency of pumping, self-absorption, self-discharge and direct irrigation, easy operation, etc. It is really a good choice for all kinds of municipal department and town sanitation.
Our factory has passed ISO9001-2000 international quality system certification. Besides, the product of us all has passed the certification of 3C and is a well-known brand in China.

The specific parameters will be shown in the following table.

items			units	parameters
product name				Dongfeng140 suction sewage truck
chassis type				EQ1092F19DJ
The actual volume			T	6
	The total mass		kg	9760
	Curb weight			5565
	Ratedcontained mass			4000
	Vehicle LWH		mm	6965×2470×2850
	Wheelbase			3950
	tread	Front wheel		1810
		Reer wheel		1800
	approach/Departure angle		°	34/15
Number of tires/specification				6 pieces/ 9.00-16 PR
Displacement/power			L/ps	4257 / 143
The maximum speed			km/h	85
Engine			Yuchai Environmental protection YC4E140-20 EuroIIemission standards
Special performance			The biggest distance for pumping≥6meters time for full pumping≤5min
			Special section:the power take off, transmission shaft, special vacuum sewage pumps, high pssure molding fecal tank, pipe network system components, windows and hand-washing device. Vacuum pump:Using the advanced technology sewage suction pump with high efficiency
