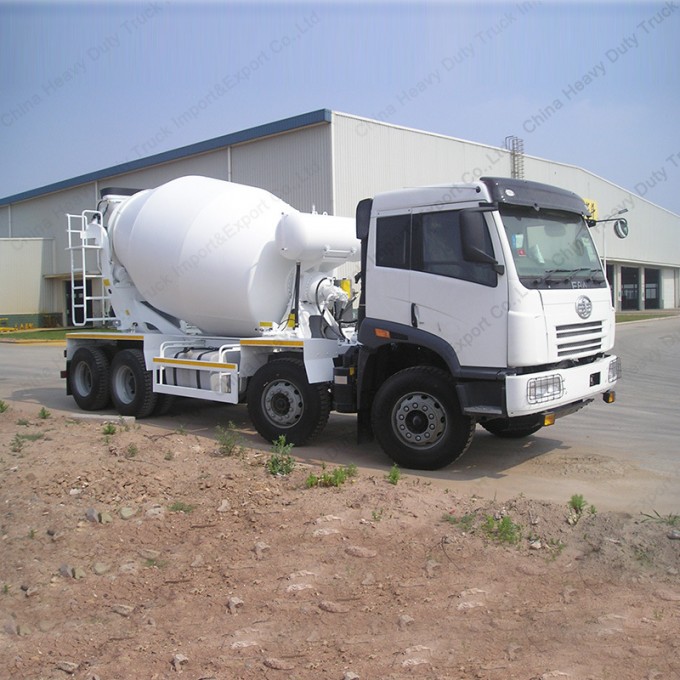

FAW 8X4 Cement Mixer Concrete Mixing Truck

1.Description:
This series has different capacity from 8-12m³ .As to the whole truck, we use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc.
Chassis has such merits: High-power, Lighten weight, Nice performance.
The tank body is designed by means of three-dimensional aid design method with the characteristics of reasonable structure, large effective capacity.
We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
Other key parts of this transit concrete mixer include hydraulic system and mixing system.
Hydraulic system can be equipped with oil pump and motor from either German Rexroth or Italy ARK, thus offering reliable performance. The decelerator acquired from Italy PMP or Italy TOPUNIOn offers ahigh
Reduction ration of 100-130. The mixer is able to offer aminimum charging speed of 3m³ /min, and aminimum discharging speed of 2m³ /min. This ensures high mixing efficiency.

2.Merits:
1. Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75° ,and reducing to 60° Upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio,
Almost zero. Inclination is between 12-15° ,improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
2.350L large capacity water tank, compssed air form, high pssure and strong impulse to meet almost cleaning conditions.

3.Detailed Parameters:
Product Model: HZZ5250GJBJF
Chassis Model: CA1252P2K2T1S2E
Kerb Weight: 11320kgs
Max. Wheelbase: 3600+1350mm
Tire: 11.00-20 16PR
Mixing Volume: 8/9/10cbm
Geometric volume: 14.6/15.1/16.2cbm
Padding rate: 63%
Charging Speed: 3m³ /min
Discharging Speed: 2m³ /min
Residual Rate: 1%
Speed of agitator: 0-12 r/min
Gradient: 13-15 °
Concrete slump: 70-260mm
Water supply: Air compssed air

Yourarealwayswelcometovisitourfactoryatanytime




5.FAQ

Q1:I don't want this configuration

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1unit.

Q3: Productionperiod?

A:(Truck & trailer)Within 30days since the moment we got your down payment (Parts) Within 7 days since the moment we got your down payment

Q4: Payment term?

A: (Truck & trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C (Parts) 100%T/T should be paid before delivery

Q5: Shipping?

A:(Truck & trailer) by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.) (Parts) by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
