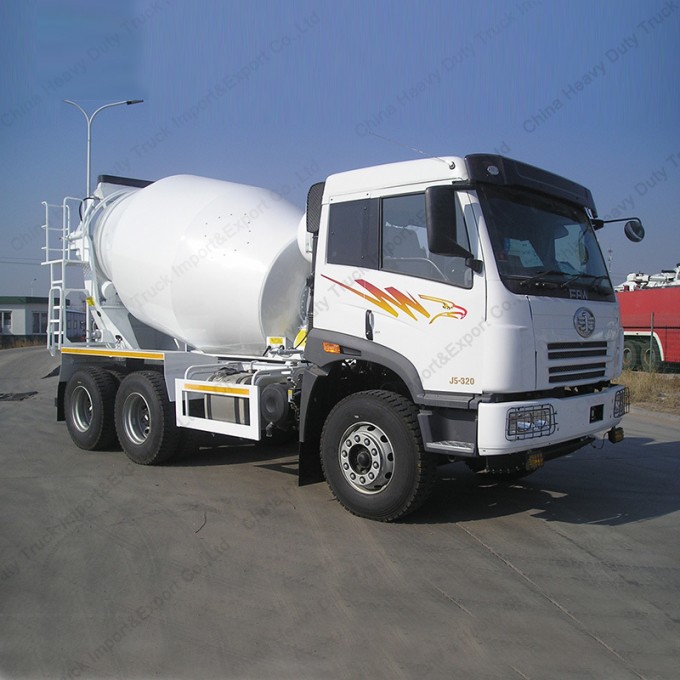

20 Years Export Experience Supply 3 Axles 6X4 7cbm Concrete Mixer Truck

1.Product Description
1).Description:
This series has different capacity from 8-12m³ .As to the whole truck, we use second-class Chinese and international chassis to refit, such as Faw Group, Dongfeng, Sino Truck, UD Nissan, Auman, Isuzu etc.
Chassis has such merits: High-power, Lighten weight, Nice performance.
The tank body is designed by means of three-dimensional aid design method with the characteristics of reasonable structure, large effective capacity.
We use OEM fittings, makes the tanker solid and durable, and reduce the cost to operate and maintain.
Other key parts of this transit concrete mixer include hydraulic system and mixing system.
Hydraulic system can be equipped with oil pump and motor from either German Rexroth or Italy ARK, thus offering reliable performance. The decelerator acquired from Italy PMP or Italy TOPUNIOn offers ahighReduction ration of 100-130. The mixer is able to offer aminimum charging speed of 3m³ /min, and aminimum discharging speed of 2m³ /min. This ensures high mixing efficiency.

2).Merits:
1. Drum use two cove floating type spiral blades, the discharging spiral angle rotates 75° ,and reducing to 60° Upto the pyramis at bottom of drum. This unique design greatly reducing the residual discharging ratio,Almost zero. Inclination is between 12-15° ,improving the high mixing efficiency. Also reduce the concrete impact which offers more resistance to extend the service life. The scraper plate which fitted at rear of the spiral blade ensure an assistance movement for better mixing.
2.350L large capacity water tank, compssed air form, high pssure and strong impulse to meet almost cleaning conditions.

2.Detailed Parameters:
Product Model: HZZ5250GJBJF
Chassis Model: CA1252P2K2T1S2E
Kerb Weight: 11320kgs
Max. Wheelbase: 3600+1350mm
Tire: 11.00-20 16PR
Mixing Volume: 8/9/10cbm
Geometric volume: 14.6/15.1/16.2cbm
Padding rate: 63%
Charging Speed: 3m³ /min
Discharging Speed: 2m³ /min
Residual Rate: 1%
Speed of agitator: 0-12 r/min
Gradient: 13-15 °
Concrete slump: 70-260mm
Water supply: Air compssed air

3. Our Factory




4. Packing and Shipping
Packing : Nude packing after painting wax or according to your requirement.
Shipping:By bulk cargo carrier, RORO


5. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 50 countries and regions

6. Main products


7. FAQ

Q1: I want the front two tires are bias tires and the rear 9 tires are radial tires, is it ok ?

A: We can make the tires as your requirement to suit your country's need.

Q2: What about your products quality ?

A: Quality is our culture! "Our factory has advanced production technology and management team! We always attach great importance to quality controlling from the very beginning!

Q 3: Can i have samples of this type of flatbed semi trailer to test the quality ?

A: Yes, you can buy any samples to test the quality,our MOQ is 1 unit.

Q 4: What others we can do ?

A: According to your order, we will provide the best price and quality trucks and trailers. And we are well capable in offering overseas after-sales service. Besides, we also provide rational packing and shipping program,let shipment save money and security.

Q 5: How to guarantee customers get the goods smoothly after they pay ?

A: Don't worry, dear. We have been in this field for 10 years, we will send you production photos once in a while, and we will help you to book the latest ship.

Q 6: What's the delivery time ?

A: The delivery time is within 15 working days after receiving your advance payment.

Q 7: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balancebeam andsemi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads,brake pan, bearings etc.

Q 8: Do you have any used truck and semi trailer for sale ?

A: We have some trucks and trailers in stock for choice, from 2010-2016 year, the price are favorable. We'll showyou our stock if you need.

Q 9:Which INCOTERMS 2010 TERMS can we work ?

MAOWO is a professional and sophisticated international player, can handle all INCOTERMS 2010terms, and we normally work on FOB, CFR, CIF, CIP, EXW.

Q 10:What logistics ways we can work for shipment?

A: We can ship construction machinery by various transportation tools. (1) For 80% of our shipment, we will go by sea, to all main continents such as South America, Middle East, Africa, Oceania etc. Either by container or RoRo/Bulk shipment. (2) For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laosetc.,wecan ship construction machinery by road or railway. (3) For light spare parts in urgent demand, we can ship it by international courier service, such as DHL,TNT, UPS, or Fedex.

8. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.
