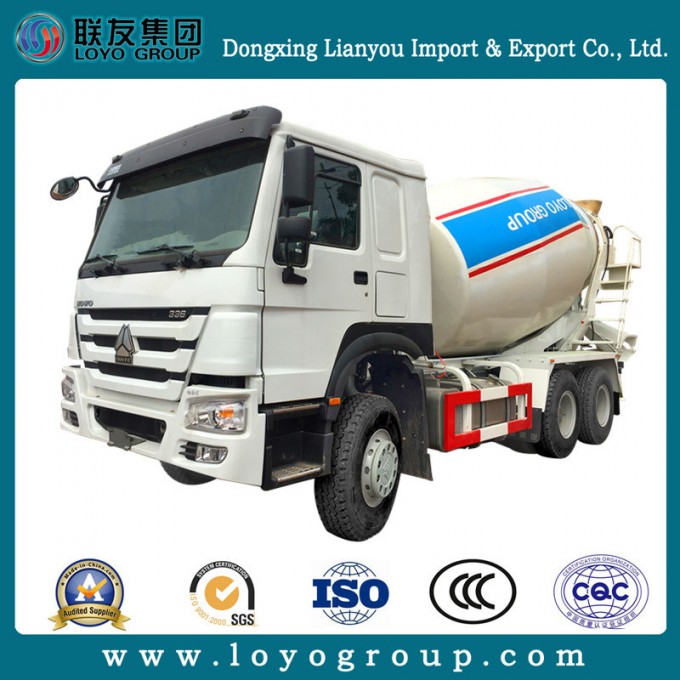

| SINOTRUK HOWO Concrete Mixer Truck |
| GVW25000kg | Driving Type 6x4 |
| Model | ZZ5257N3841W |
| Mixer Tank | Cubage(m3) | 10m3 |
| Hydrolic system, motor | euqipped with PMH/M90 motor and PMH/P90 hydrolic pump,PMB6.5 reducer |
| Engine | Model | WD615.69 |
| Horsepower | 336 |
| Maximum output Kw/r/min | 247/2200 |
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged &inter-cooled, direct injection |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard |
| Cab | SINOTRUK HW76 Lengthen cab,left hand driving ,with air conditioner,single bunk,new type seat,adjustable steering wheel,EURO new type heating &ventilating system, |
| German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving |
| Option:color; Wind guide cover |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Transmission | SINOTRUKHW15710transmission ,10 forward and 2reverse |
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brake |
| Steering | German ZF8098 Steering Gear Box ,hydraulic steering with power assistance |
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STRaxle,ratio:5.73 |
|
| Brake System | Service brake:dual circuit compssed air brake |
| Parking brake (emergency brake):spring energy,compssed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Tyres | Rims:8.5-20,10 hole-steel ;Tyres: 12.00R20radial tyrewith 1Spare tire |
| Electrics | Operating voltage:24V,negative grounded |
| Starter:24V,7.5 Kw |
| Alternator:3-phase,28V,1500 W |
| Batteries:2x12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-300Lfuel tank |
| Dimensions | Overall length xwidth xheight8560x2496x3048(mm) |
| Wheel base3825+1350 |
| Weight (kg) | Kerb weight13220 |
| Gross vehicle weight25000 |
| Performance | Maximum drving speed (km/h)90 |
| Packing | Nude Pack.The packing of the commodity shall be in accordance with the export standard packing of the manufacturer |
| be suitable for long distance transportation of ocean and inland. |
