Concrete 1.7m3 Mini Self Loading Concrete Mixer Truck with Front Loading Shovel (SL1.7R)

Silon Concrte Feeding mixter Truck Features

1.Mixingvolume:1.7cbm
2.Engine:48KW EU-III
3.Chassis:Silon 4x4 WD
4.Dischargespeed:4.8cbm/h
5.Rotationalspeed:0~14r/min
6.Feedrate:≥3m³/min
7.Restrate:<0.7%
8. imported Hydraulic Systerm/Reducer motor
9. Low Oil Consumption with good economice
10. Concrte Mixter truck: SILON 1.2M3 /1.7M3 /2.0M3 /2.6M3 /4.0M3


Techncial Parameters

Drum Capacity	1.7m3
Discharing Height	1.5m
Production Capacity	1.2m3 /cans 4.8m3/h
Engine	Chinese Sida / Chinese Yunnei
Transmmsion	Turquo Converter, 4WD
Walking Speed	Low Speed :2km/h High Speed: 20km/h
Cabin	Lef-Hand Drive ,Rops, Front Loading Shovle
Hydraulic System	Chinese Hydrulic System
Discharing Direction	180 Degree Rotation (90 Degree Each)
Operation Lever	Electrionilly Control Four-Speed Joystick
Bucket Capacity	270L
Chute	Hydraulic adjustable angle, in order to increase Discharing Length
Water Supplyer System	Hydraulic DriveN Auto-Priming Pump, washing vehicel with high pssure water pump,Electrionilly Control Auto-Priming Pump, Sprinker 100L/min
Brakes	Air Brake Dual Independence Circurs
Tyre	12-16.5
Power System	24V
Fuel Tanker	35L
Hydraulic Oil Tanker	120L
Weight	3200kg
Dimension	5000x1900X2600mm

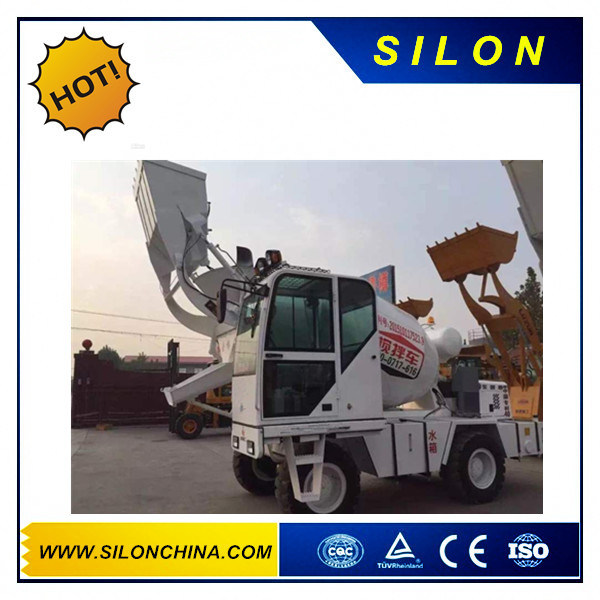

Detailes Photo of the mini Concrete Feeding Mixer Truck ( SL1.7R)
