Selective Type Warehouse Push Back Racking System

Push Back Racking systemsallow you to eliminate aisles and gain pallet storage in your warehouse. Is your current racking system costing you money due to high labor costs from loading and unloading? Are you experiencing costly maintenance due to rack damage from driving in and out of the rack system? Do you have alot of the same SKU mixed? Do you need to store awide variety of different size pallets? Let Sunshine design aPush Back Racking system for your warehouse!

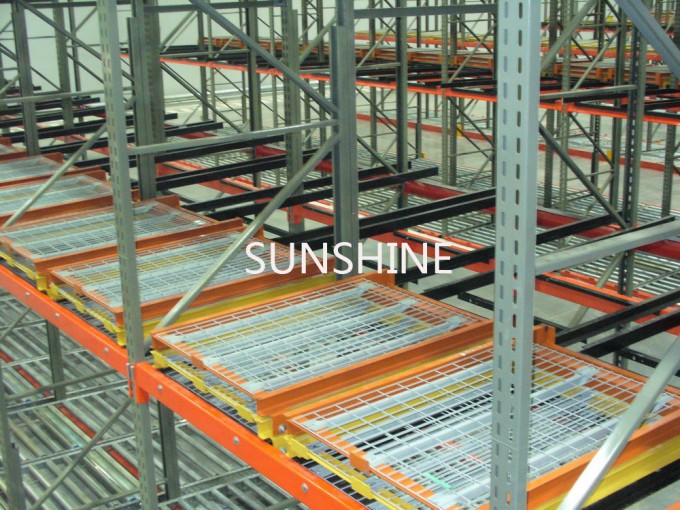

Push Back Rack systems utilize gravity-fed telescoping carts to provide the densest storage. In most cases, Push Back Racks can double your storage capacity and allow for more picking faces. Push Back lanes can be designed to accommodate all different or unique pallet sizes. Pallets are fed and retrieved from one aisle, which makes Push Back Racking easy to operate. You simply load the first pallet onto the top cart, and then as you load the second pallet it pushes the first pallet back, which can be continued up to 6pallets deep. To remove pallets, simply lift the pallet and back out slowly until the next pallet is in the front position.

ush Back Racking Advantages:

Exceptional use of space, as eliminates unnecessary aisles

Allows for both selectivity and dense storage

More picking face locations

Color-coded carts make it easier for forklift driver to position the pallets during loading and unloading process

Carts can be low-profile design, which helps in areas with height restrictions

Flexibility to store multiple SKUs on each level

Minimizes honeycombing

No special fork trucks required

Few moving mechanical parts

Fully operational in freezers, coolers, or high temperature environments

Floor-mounted Push Back available

Push Back carts designed to accommodate any and all pallet sizes

Available in roll-formed or structural materialsPush Back Rack Applications:

Having inventory with multiple SKUs

Wide variety of different size pallets

LIFO storage (last in, first out) rotation

Configurations from 2to 6pallets deep

Storing up to 6pallets of each SKU while maintaining the ability to select one pallet of each SKUPush Back Pallet Racking Considerations:

The impact of time-sensitive or dated inventory

The depth of system is based upon available space and the average quantity of pallets

The height of system is dictated by the pallet height, building clear height, and the maximum lift of the fork truck

The load on the pallets must be firmly secured to the pallet by stretch wrapping or otherwise, in order to safeguard against shifting or spillagePush Back Racking systems can enhance your throughput of storing and retrieving product pallets, which amounts to impssive dollar savings! Let 1Stop Rack Services lend ahand in designing, installing, and supplying your Push Back Rack System. Don't wait, contact us today so you can get the "pallet" rolling and enhance your storage and picking process to help push profits higher!
