Warehouse Storage Selective Heavy Duty Pallet Racking
Warehouse Storage Selective Heavy Duty Pallet Racking

Warehouse Storage Selective Heavy Duty Pallet Racking

Categories: other , Cargo & Storage , Storage Racks , Selective Pallet Rack
FOB Price:0.00 USD /Unit
Minimum Order Quantity:1 Unit(s)
Supply Ability:38 Unit(s)
Payment Terms:L/C, T/T, D/P, Western
Company Profile
Contact:MrGaryDuan
E-mail:
Fax:
Capital:US$ 0 Million
Employees: 1-49人 People
Detailed Description
Warehouse Storage Selec<em></em>tive Heavy Duty Pallet Racking
The structure of URGO heavy duty pallet rack includes uprights and beams, According to the customer's actual pallet load capacity and warehouse size, select the column and beam specifications, as well as increasing racking accessories.

Warehouse Rack Use and customized Width drive in pallet racking
Features1. 90% picking efficiency, and appropriate for picking heavy goods by pallet.
2. Surface finishing with araldite static powder coating.
3. High Strength and durability, easy for complete installation.
4. Pallets can be located, accessed and moved individually.
5. Rapid handling of almost all types of palletised goods.
6. Bottom level of pallets can be stored on the floor, lowering structure costs.
7. Strength and rigidity pvents compssion damage to goods.
8. Infinitely adjustable and offering a wide range of options and components to accommodate specialized needs.
9. Maximizes space use in any warehouse configuration while retaining optimum product accessibility.
Beam & frame1. frame depth normally from 800-1000mm, height is limited by handling equipment of approximate 11mm.
2. Beam length from 1000-3300mm depends on requirement or design.
3. Operation aisle is from 2200-3800mm depends on operating truck
Main Parts Specs1. Upright section: 80*60*2.0, 90*70*2.0, 100*70*2.0, 120*95*2.0-2.5mm, etc.
2. Box beams section: 80*50*1.5, 100*50*1.5, 110*50*1.5, 120*50*1.5-2.0, 140*50*1.5-2.0, 160*50*1.5-2.0, 180*50*2.0mm, etc.,
3. Horizontal & diagonal braces, upright footplates, safety locking pins, bolts & nuts, anchors and all necessary components.
Load Capacity & Dimension1. Loading capacity: 500-4,000 kgs UDL/beam level.
2. Height: 1,000-11,000mm
3. Depth: 400-1,500mm
4. Length: 1,500-3,300mm
5. Specail sizes also avaiable to specific storage needs.
Delivery TimeWithin 25 days for ordinary order quantity. Big production capacity allows us in a position to make quick delivery.

Upright:
1. High load capacity up to 21000kg.
2. frames include all the elements needed for assembly: bracing, feet and nuts & bolts.
3. Blue epoxy coated (RAL 5012/5015/5017).
4. Standard heights : From 2 to 11.5m.
5. Adjusted by 50/75mm pitch.

ColumnProfiles:

Column Specification (mm)Thickness (mm) Upright Loading (kg)
W80 x D601.8-2.04000-6000 KG
W85 x D671.8-2.37500-12500 KG
W90 x D601.8-2.58000-10000 KG
W90 x D701.8-2.510000-12000 KG
W100 x D702.0-2.511000-14000 KG
W120 x D952.3-3.017000-21000KG

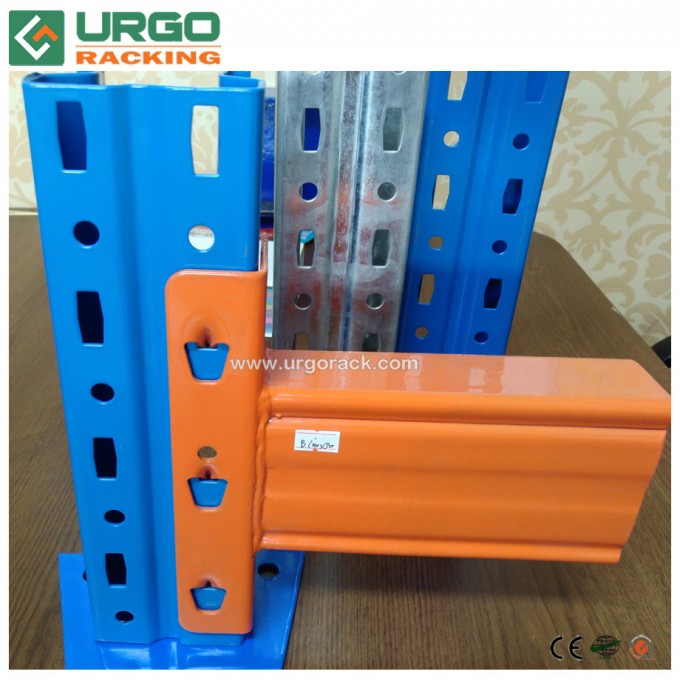

Beam:

1. High load capacity up to 5000kg.

2 .Manufactured with the highest quality steel Q235.

3. Orange epoxy coated (RAL 2004).

4. Lengths available: 1500/2000/2300/2700/3000/3300/3600/3900mm

5. Boltless connection with 3/ 4/ 5 connector hooks.

6. A security pins per beam to pvent accidental dislodgement.

7. Powder coating finish

Beam Profiles:

Loading (kg)

Specification (mm)

The Length of Box Beam (mm)
150020002300250027003000330036003900
80 x 50 x 1.530001740134011601010
90 x 50 x 1.5408023501800164513451010850
100 x 50 1.5296022601930168013801040
110 x 50 x 1.5264022501950160013401140
120 x 50 x 1.5320027302358193015181379
140 x 50 x 1.538683330272023702020
160 x 50 x 1.542203690297026002340
160 x 50 x 1.8440034203020

2590

160 x 50 x 2.0413041703320

2840

Loading (kg)

Specification (mm)

The Length of P Box Beam (mm)
150020002300250027003000330036003900
100 x 50 x 1.5447025121900161013801120920
110 x 50 x 1.55484308523321974169313711133952
120 x 50 x 1.539102957250321461738143612071030
140 x 50 x 1.557224330366231402543210217661505

Main Spare Parts Profiles:

Optional Accessries

Urgo heavy weight pallet rack conventional accessories include: cross beam, back brake beam, back mesh, side mesh, steel plate, grid plate, wood plate, column protector, guard bar etc.

Warehouse Storage Selective Heavy Duty Pallet Racking
Warehouse Storage Selective Heavy Duty Pallet Racking
Warehouse Storage Selective Heavy Duty Pallet Racking

Product Image
Warehouse Storage Selective Heavy Duty Pallet Racking Image1
