Detailed Description
Pallet Racking
The Sin-Sino Pallet Racking system, one of the most widely used pallet racking systems available today, has evolved through our knowledge of storage and handling techniques gained during 30 years experience in the industry.
Design for strength, durability and ease of assembly,the system comprises a comphensive choice of frames and pallet support beams which are pcisely selected and combined to meet the load requirements of any storage application, safely, efficiently and cost-effectivedly.
DESIGN STANDARDS
SIN-SINO Pallet Rack has been designed using the Australian Standard AS4084 Supp1 1993.This standard is pdominantly based on the American Rack Manufacture Institute Specification (RMI) when used at its lower tier, although it also takes information from the British Storage Equipment Manufactures Association(SEMA) and the European Racking Code FEM 10.2.02 for the higher tiers of the standard.
The Storage arrangement enables First-In-First-Out access to all goods.
Detail:
| Load Capacity: | 1000-4000Kg/Lever | Surface Treatment: | Powder Coating |
| Color: | Customizable | Hieghth/Depth: | Customizable |
| Dimensions: | Customizable | metal: | High Quality Cold Rolled Steel |
Package & Delivery:
Delivery:15-20 days after receive the advance.
Packing:Standard Export Seaworthy Packing.
Certificates: ISO & AS4084
Specification:
| Specifications of Beam |
| Type | | Item | Height(mm) | Width(mm) | Thickness(mm) |
| P style Pipe(Step Beam) | | 1 | 50 | 30 | 1.5 |
| 2 | 60 | 40 | 1.5 |
| 3 | 80 | 50 | 1.5 |
| 4 | 110 | 70 | 1.5 |
| 5 | 140 | 70 | 1.5 |
| 6 | 160 | 70 | 1.5 |
| Box Beam | | 7 | 80 | 50 | 1.5 |
| 8 | 100 | 50 | 1.5 |
| 9 | 110 | 50 | 1.5 |
| 10 | 120 | 50 | 1.5 |
| 11 | 140 | 50 | 1.8 |
| 12 | 160 | 50 | 2.0 |
| Specifications of Upright |
| Item | Width(mm) | Depth(mm) | Thickness(mm) | Loading Capacity(kg) |
| 1 | 85 | 67 | 1.6 | 7000 |
| 2 | 85 | 67 | 1.8 | 8500 |
| 3 | 85 | 67 | 2.0 | 10000 |
| 4 | 85 | 67 | 2.3 | 12500 |
| 5 | 100 | 67 | 1.8 | 10500 |
| 6 | 100 | 67 | 2.0 | 12000 |
| 7 | 100 | 67 | 2.3 | 13800 |
| 8 | 100 | 95 | 2.0 | 12000 |
| 9 | 100 | 95 | 2.3 | 14500 |
| 10 | 100 | 95 | 2.5 | 16000 |
| 11 | 100 | 95 | 2.75 | 18000 |
| 12 | 100 | 95 | 3.0 | 20000 |
| 13 | 120 | 95 | 2.5 | 17000 |
| 14 | 120 | 95 | 2.75 | 19000 |
| 15 | 120 | 95 | 3.0 | 21000 |
about SIN-SINO
Sin-Sino United was incorporated inTai Cang, Jiangsu province RPC in 2011. Sin-Sino United State-of-the-art factory is locted at Tai Cang New Industrial park, site area 63,000 sq meter with a total invesment of USD100 million.
Our principal activity is surrounding the value chain of procurement, manufacturing and marketing of storage, distribution and material handling systems and products. We investigate, analyse, design, manufacture supply and implement solutions.
Sin-Sino United employs top industry sales consultants, engineers, specialised designers, project managers and installers to enable supply of effective systems that satify end user and distirbutor needs. Our continuous inprovement programmes ensure that the most up-yo-date products and systems are available for supply to distributors and end users. We provide a 24 hours per day, 365 days per year, on site service to ensure to customer and material handling system down time is minimised and their invesment are protected and cost minimised.
Our Mission
To strive for innovation and serive leadership and exceed our customer expectations by being a learning organization that is self critical and is never satified with yesterdays Innovation and service.To develop better products and systems, whilst increasing quality and performance and reducing costs.
Sin-Sino United looks forwards to being part of your success

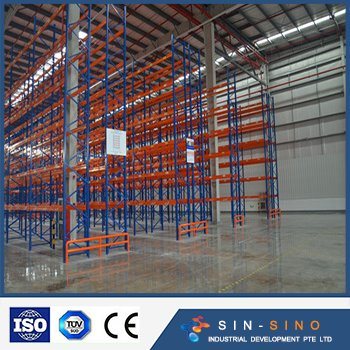

Product Image
