12cbm HOWO Sinotruk 8X4 Concrete Mixer Truck/Cement Mixer Truck

12cbm HOWO Sinotruk 8X4 Concrete Mixer Truck/Cement Mixer Truck

Our main products include full series products of CNHTC(HOWO, STR, Golden Prince, etc. ), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck. etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.
1. Basic technical data:(Configurations can be changed)

Model		8x4 12m3 concrete mixer truck
Whole Vehicle Performance &Parameters	Chassis	Sinotruk
	Curb Weight (Kg)	16550
	Total Vehicle Weight (Kg)	31000
	Outline Dimension(L*B*H) (mm)	10820x2496x3980
	Wheelbase (mm)	1800+3600+1350mm
	Front Overhang (mm)	1410
	Rear Overhang (mm)	2640
	Max Traveling speed	80
Vehicle Configuration	Clutch	Dry Single Disc Clutch (φ430)
	Gear Box	HW19710
	Driving Type	8x4
	Steering Mechanism	ZF8118
	Service Brake	Dual-circuit Air Brake
	Parking Braking	Spring-powered Air-cut-off Brake
	Auxiliary Brake	Engine Exhaust Brake
	Tyre	12.00R20 radial tyre
Engine Parameters	Model	WD615.69/47, D12.42
	Type	Diesel 4-stoke Direct injection, 6-cylinder in line, Turbo-charging, Inner cooling.
	Emission Standard	Euro 2
	Max Power (KW)	336HP/371HP, 420HP
	Max Torque	1500 N. m
Mixing Drum Parameters	Max Mixing Cubage (m3)	12-16
	Feeding Speed (m3)	≥3.5
	Discharging Speed (≥m3)	≥3
	Leftover Rate	Nearly Zero
	Max Rotating Speed (r/min)	14---16
	Mixing Drum Obliquity (°)	10
	Max Mixing Drum Diameter (mm)	φ2412
Driving System	Hydraulic Pump	TOP089
	Hydraulic Motor	TOP 089
	Speed reducer	TOP P68
	Water supply mode	Water pump; pneumatic pump

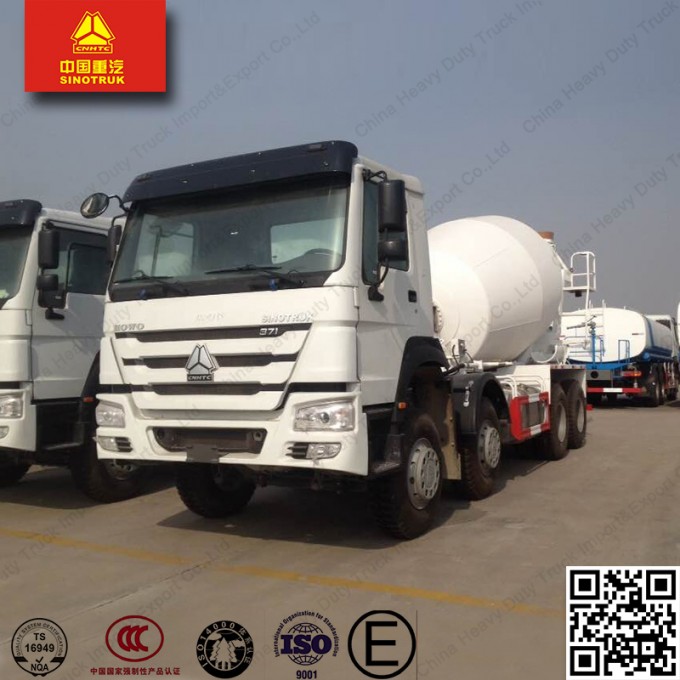

2. Photos

3. Our Factory




4. Our Advantages
(1)Competitive Factory Price and Excellent Quality
(2)More than 20 years' experience as amanufacturer
(3)Products Quality Certification SGS CCC ISO
(4)Perfect after-sale service
(5)Customized products available with us
(6)Export to more than 90 countries and regions


5. Packing &Delivery &Main products &Our Service




6. FAQ

Q1:I don't want this configuration

A: The configuration can be changed according to your needs

Q2: Minimum order quantity?

A: MOQ is 1unit.

Q3:Productionperiod?

A:(Truck &trailer)Within 30days since the moment we got your down payment (Parts)Within 7days since the moment we got your down payment

Q4: Payment term?

A:(Truck &trailer)30%T/T as deposit, the balance should be paid before delivery. or L/C (Parts)100%T/T should be paid before delivery

Q5: Shipping?

A:(Truck &trailer) by container or RoRo/Bulk shipment. (South America,Middle East, Africa, Oceania etc.) by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan ,Vietnam, Laos etc.) (Parts) by international courier service, such asDHL, TNT, UPS, or Fedex.The goods above $1000 can be shipped by sea

Q6: Can you supply some quick-wear truck or semi trailer parts ?

A: Yes, we can supply truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.

7. Warranty
(1) One year quality guarantee or within 100000km, which comes the first.
(2) Other spare part could be supplied by OEM at cost prices.
(3) Regularly callback to know the vehicle's working status.
(4) The overseas engineers are always ready to deal with unexpected needs.

8. Company information
China Heavy Duty Truck import&Export Co., Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce Staff of our company can provide the trucks meeting the requirement of customers at the best price.
We have 20 years of experience in exporting trucks.
We sincerely hope to cooperate with you to expand market in your country!
