92" X 40" Truck Tire Stackable Storage Rack for TBR

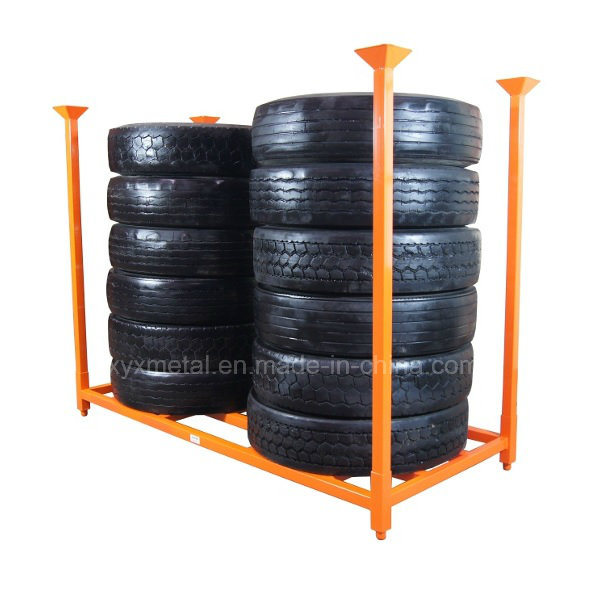

The TCR truck tire stacking storage racks are used for stacked storage of tires for heavy trucks, buses and farm machinery. This versatile and economic modular warehousing solution is very popular. The pallet base is optimized to hold 2 stacks of 6 or 7 tires depending on their width. The truck tire stacking rack has the same features as the TR-01. It is equipped with four removable corner posts to reduce shipping costs and save space in the tire warehouse during slower periods. When removed, the posts are stowed flat between stacked pallet frames. A forklift with clamps is needed to work with this rack.

Product Advantage:
A. Welded metal structure, strong and durable
B. Demountable, easy to assemble
C. Can be stacking 5high, folded to store and save space
D. Load capacity up to 1000kg
E. Improve product visibility
F. Four removable upright to save space

Specification:
Size: W92" XD40" XH72"
W2438 X D1118 X H1803 mm
Loading Capcity: 1000KG, 2200lbs.
Unit G.W.: 70KG, 153lbs.
Loading tire numbers: 12-14 peices
Stacking Capacity: 4-5 Layers
Folding and stacking design
Powder coating finishing
Optional: Forklift pocket
Optioanl: Wire mesh bottom
Optional color: Blue, Orange, red, yellow.

Feature of Tire racking
Meterial		High quality hot rolled steel. Q235b (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M)
Surface treatmet:		Powder coated.
Size(LxWxH)		92" x 40" x 72
Thickness		2.0mm
Loading capibility (per layer)		1000kg (2200lb)
Stacked capacity		5 layers
Packing detial:		Bundled tightenly with plastic belts.
Delivery detial:		20 workdays after received the deposits.
