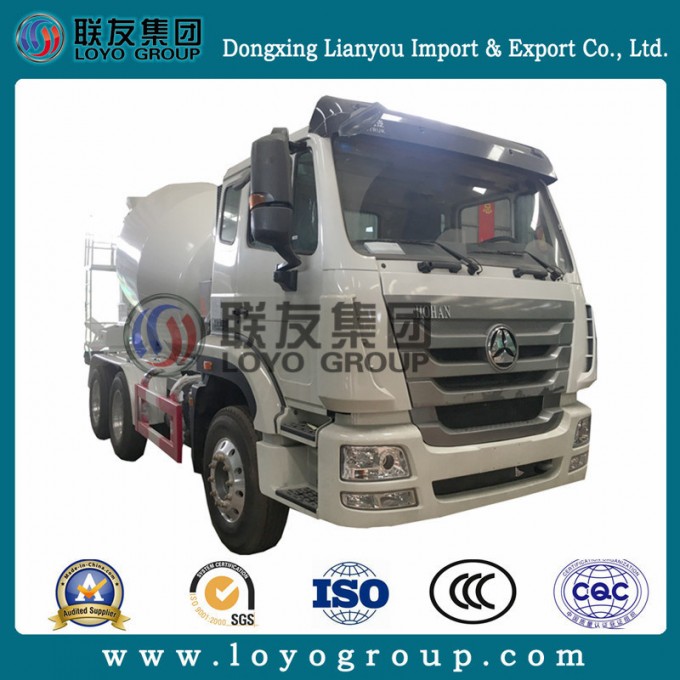

| SINOTRUK HOHAN 6X4 336HP 6cubic Concrete Mixer Truck |
| Mixing volume |
| Mixing volume | 6 m3 |
| Pump | INTERPUMP 56 |
| Motor | INTERPUMP 56 |
| Decelerator | LEAD 374 |
| discharging the residual rate:<1% |
| Drum working speed :0-18r /min |
| Filling rate64.5% |
| GVW25000kg | Driving Type 6x4 |
| Model | ZZ1255N3646B1 |
| Engine | Chasiss number | WD615.69 |
| Horsepower | 336hp |
| Type | 6-cylinder in line, 4-stroke,
water-cooled,
turbo-charged &inter-cooled,
direct injection |
| Displacement | 9.726L |
| Make SINOTRUCK (CNHTC), Euro II emission standard |
| Cab | SINOTRUK H16,left hand driving ,with air conditioner, single bunk |
| Option:color; |
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance |
| Transmission | SINOTRUKHW13710Ltransmission ,10 forward and 2reverse |
| Front Axle | VGD060QB Front Axle |
| Steering | Sinotruk D50 steering |
| Rear Axles | 435 drive axle |
| Brake System | Service brake:dual circuit compssed air brake |
| Parking brake (emergency brake):spring energy,compssed air operating on rear wheels |
| Auxiliary brake:engine exhaust valve brake |
| Tyres | Tyres: 12R22.5 Tubless tyrewith 1Spare tire |
| Electrics | Operating voltage:24V,negative grounded |
| Starter:24V,7.5 Kw |
| Alternator:3-phase,28V,1500 W |
| Batteries:2x12 V,165 Ah |
| horn,headlamps,fog lights,brake lights,indicators and reverse light |
| Oil Tank | Square type-300Lfuel tank |
| Dimensions | Overall length xwidth xheight 7.825×2.496×3.13mm |
| Wheel base 3625+1350mm |
| Weight (kg) | Kerb weight 10900kg |
| Gross vehicle weight 25000kg |
| Performance | Maximum drving speed (km/h) 90 |
| Packing | Nude Pack.The packing of the commodity shall be in accordance
with the export standard packing of the manufacturer |
| be suitable for long distance transportation of ocean and inland. |
1 YRS
