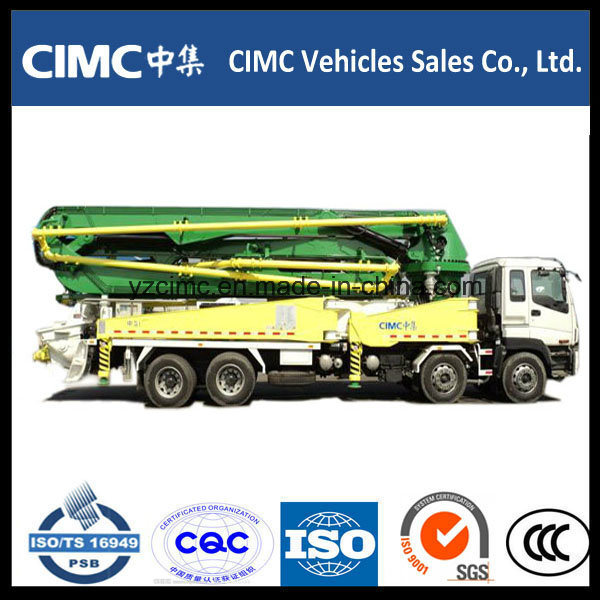

Cimc 45m Concrete Pump Truck with Isuzu Chassis

China 24m to 52m Boom Concrete Pump Truck:
All Sizes:24m, 37m, 39m, 42m 45m, 48m 52m

45m parameter is as followings:
Model: CIMC
Chassis: ISUZU OR HOWO OR BENZ
Total Weight: 38000kg
Driving model of chassis: 8*4
Max driving speed: 85km/h

45MPUMPTRAILERTECHNICALDATA
Item				Maintechnicaldata
Model				CIMC5381THB		CIMC5391THB
ChassisData	Chassismodel			ISUZUCYH51Y		MercedesActros4141(8X4)
	Chassisdrivemode			8X4		8X4
	Wheelbace			1850+4605+1310(mm		1700+4600+1350(mm)
	Track(front/rear)			2065mm		2034mm
				1850mm		1804mm
	Maxspeed			85km/h		85km/h
	Minimumturningdiameter			11.9m		12.95m
	Minimumgroundclearance			240mm		240mm
	Tyremodel			295/80R22.5		315/80R22.5
	Brakingdistance			10m/30km/h		10m/30km/h
	Enginemodel			ISUZU6WF1D		MercedesOM501LA.III/17
	Engineoutpower			287kw		300kw
	displacement			14.256L		11.946L
	Maximumgradability			44%		53.10%
	Approaching/Departureangle			21 °/11°		19 °/10.2°
	Numberofthecylinder(includingdiameterandstroke)			Inline6cylinder(147X140mm)		V6turbocharging(130x150mm)
	Maximumtorque			90kg-m(1,863Nm)/1,100round(ISO)		204kg-m(2,000Nm)/1,080round(ISO)
	Battery			2x12V/165Ah		2x12V/150Ah
	Emissionstandard			EUROIII
Pumpingsystem	Cylinderinnerdiam&traveldistance			Φ140mmX2000mm
	Conveyingcylinderinnerdiam&traveldistance			Φ230mmX2000mm
	Theorypumppssurehigh/low			11.8MPa;6.5MPa
	Theorypumpdisplacementhigh/low			120m3/h;70m3/h
	Theoryoutputfrequencyhigh/low			24times/min;14times/min
	Highpssurepumphorizontaldistance≥		850m
	Highpssurepumpverticalheight≥		250m
	Maximumflow		440L/min
	Ratedworkingpssure		32MPa
	Hopperfrequency		600L
	Maxmediumsize		40mm
	Loadingheight		1540mm
	Vavletype		SVavle
	Falldowndegree		14~~23cm
	Hydraulicoilcooling		Aircooling
	Cleaning		Absorbcleaninganddischargecleaning,watercleaning
Watersystem	Pumpflow		20
	Maximumpssure		2MPa
	Watertankcapacity		420L
	Oiltankcapacity		630L
Boomsystemdata	Structuralstyle		SectionfiveRZmodelfullhydraulic
	1st	length	9100mm
		articulation	90°
	2st	length	8000mm
		articulation	180°
	3st	length	8000mm
		articulation	180°
	4st	length	8000mm
		articulation	180°
	5st	length	7900mm
		articulation	270°
	Transmitpipediam		125mm
	Endhoselength		3000mm
	Rotationangle		±270 °
	Boomhorizontallength		41m
	Boomverticalheight		45m
	Placingboomturningradius		41m
	Ratedworkingpssure		34MPa
	Placingdepth		31.9m
Outrigger	Frontoutriggerspan		9153mm
	Rearoutriggerspan		9250mm
	Front&rearoutriggerspan		8990mm
Truck	Lubricatetype		Automaticlubrication
	Control		Manual+remotecontrol
	Dimension(lengthxwidthxheight)		12600x2500X3970(mm)		12580×2500×3960(mm)
	Grossweight		38000kg		39490kg
