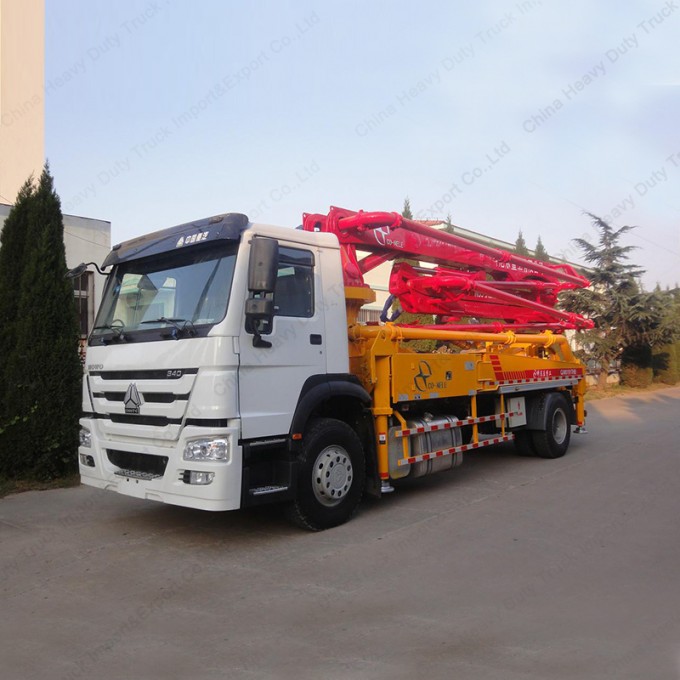

80m3/H Output 33m Pumping Height Concrete Pump Truck for Sale

Our mainOverseasBusinessScope:
-Alltypesofheavydutytruck
-Specialmodifiedvehicle
-Alltypesofsemitrailer
-Constructionequipment&Machinery
-Pickup,VAN,Bus
-Spareparts-Service&Maintenance
Ourcompletesellingsystemincludingsale,sparepartssale,after-saleserviceandcustomerservice.

1.Basic technical data:

Pumping system	(/)Max. Theor. output(high/low pssure)	m3/h	55/80
	(/)Max. Theor. concrete output Pressure(high/low pssure)	MPa	13/7.5
	Rated working pssure	MPa	32
	(/) Pumping frequency(high/low pssure)	min-1	18/30
	Hopper capacity	L	450
	Filling height	mm	1450
	Hydraulic system type		Open loop
	Distribution valve		SS valve
	× Oil cylinder dia.×stroke	mm	φ100×1650/1400
	×Concrete cylinder dia.×stroke	mm	φ200×1650/1400
	Hydraulic oil cooling		Air cooling
	Recommended concrete slump	cm	12~23
	Max. aggregate dimension	mm	40
Placing boom	Structure type		33-4M
	Placing depth	m	33
	Horizontal distance	m	33
	Placing depth	m	22.4
	Slewing angle		365°
	Pipe diameter	mm	125
	End hose length	mm	3000
	Min. height of opening placing boom	mm	11900
	(××)Outriggers span (front×rear×side)	mm	6140×7098×6706
Chassis and the whole machine	Chassis model		ZZ5207N5617D1
	Wheelbase	mm	5600
	Engine type		D10.34-40
	Engine power	kW	249kw
	Oil tank cubage	L	400
	Tail gas exhaust standard		IV
	(××) Overall dimensions	mm	10750x2480x3648

2. Our Factory
SINOTRUK has an annual output of 180,000 vehicles and 200,000 engines capacity.

3. Packing:Nude packing after paintingwax oraccordingtoyourrequirement.
Shipping:By bulk cargo carrier, RORO

4.OurAdvantages
(1)CompetitiveFactoryPriceandExcellentQuality
(2)Morethan20years'experienceasamanufacturer
(3)ProductsQualityCertificationSGSCCCISO
(4)Perfectafter-saleservice
(5)Customizedproductsavailablewithus
(6)Exporttomorethan90countriesandregions

5. FAQ
Q1.: Are your manufacturer ?
A : Yes! We can totally manufacture the trucks as you required.
Q2. Do you have a good orgonization of shipping vessle ?
A: Yes, we have a good and long term cooperation with the world first class famous shipping company line,like MSK,PIL,SUNSHINE SHIPPING,ETC.The order over 500 units of vehicle,we will lease a vessel.
Q 3: How about your warranty items?
A : We supply original spare parts of our vehicles, if you need, we will show you spare parts list for your choosing to make sure daily maintain of your vehicles.
Q 4: Can I be your agent in my country?
A : It is Ok if the order is appropriate, we looks forward to long-term cooperation with you.
Q 5: What is the delivery time and payment term?
A : Our common products delivery time is 10-35 working days except some definitely special vehicles. We accept 30% T/T deposit and 70% balance T/T or 100% L/C. More details, please contact with our salesman.


6. Warranty
(1) oneyearqualityguarantee orwithin100000km,whichcomesthefirst.
(2) OthersparepartcouldbesuppliedbyOEMatcostprices.
(3) Regularlycallbacktoknowthevehicle'sworkingstatus.
(4) Theoverseasengineersarealwaysreadytodealwithunexpectedneeds.


7. Company information
China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce
Staffofourcompanycanprovidethetrucksmeetingtherequirementofcustomersatthebestprice.Wehavemanyyearsofexperienceinexportingtrucks.Ifyouwanttobuyanytruck, trailer or truck parts,pleasecontactus!
Wesincerelyhopetocooperatewithyoutoexpandmarketinyourcountry!

China Heavy Duty Truck import&Export Co.,Ltd is one of the main exporters of Chinese trucks which is authorized by Ministry of Commerce.
Staffofourcompanycanprovidethetrucksmeetingtherequirementofcustomersatthebestprice.Wehavemanyyearsofexperienceinexportingtrucks.
Ifyouwanttobuyanytruck, trailer or truck parts,pleasecontactus!
Wesincerelyhopetocooperatewithyoutoexpandmarketinyourcountry!
