Detailed Description
Product Des
cription

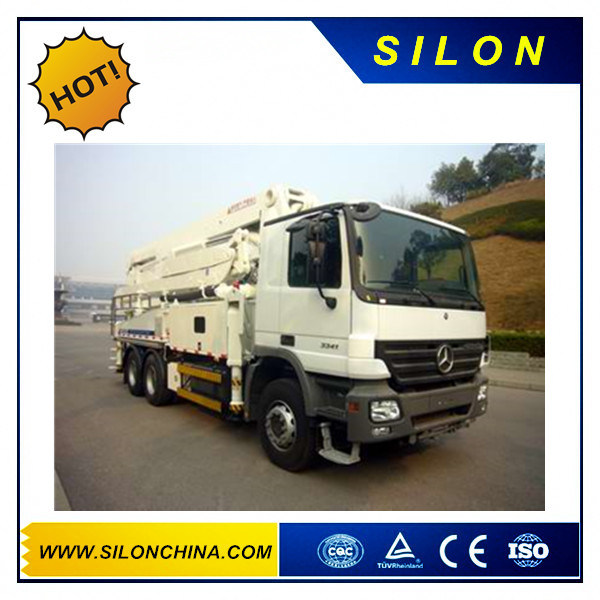

1)Compactindesign,33mpumpmountedon3-axletruck,totalweightislessthan24.5tons.
2)Efficientpumpunit,idealformediumjobs.
3)Agileplacingboomwith4armsandunfoldingheight7.9monly,which work innarrowjobsite.
4)Controllerisdesignedforheavydutyuse,withamonitor,itmonitorsthepumpintelligentlyonworkingdatamanagement,real-timediagnostics,alarmlogging,andserviceintervalnotice.
5)Richinconfigurationsandhighqualitycomponents.
Technical Parameters
| TransferSystem | S-valve |
| Max.ConcreteOutput | m3/h | 120/70 |
| Max.ConcretePressure | bar | 70/110 |
| DeliveryCylinder | mm | 230 |
| StrokeLength | mm | 2100 |
| Strokes | 1/min | 22 |
| HopperCapacity | L | 550 |
| Fillingheight | mm | 1540 |
| HydraulicSystem | Open |
| Hydraulicoilcooling | Doublefans |
| High/LowPress.Switch | Manual |
| Lubricationonpump | Automatic |
| Lubricationonhopper | Automatic |
| GPSDataManage | Optional |
Placing Boom 33X-4Z
| BoomControlValve | Proportional |
| NumberofArms | 4 |
| FoldingSystem | Z-fold |
| Max.ReachVertical | m | 32.9 |
| Max.ReachHorizontal | m | 28.9 |
| Max.ReachDepth | m | 20.1 |
| Min.UnfoldingHeight | m | 7.9 |
| EndHoseLength | m | 3 |
| DeliveryLine | DN125/4 |
| SlewingRange | 365 |
| SlewingMotor | 1 |
| RemoteControlSystem | Radio |
| WaterPump | 15L/min,120bar |
| Toolkitswithbox | Standard |
