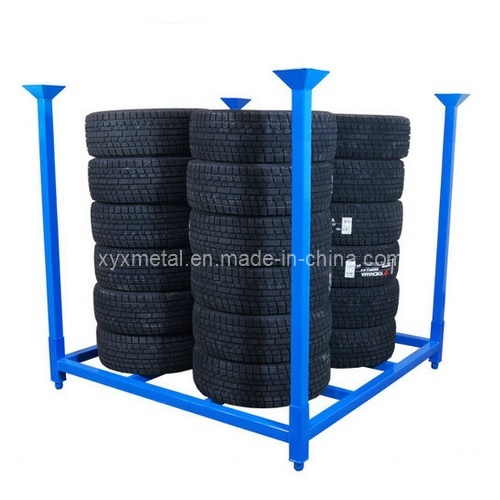

Folding 60x60 Inch Metal PCR Tire Tyre Collapsible Stacking Storage Rack

Optimal storage of tyres is about obtaining the maximum amount of tyre storage in the available space without affecting the quality of the tyre -while ensuring efficient and ergonomic handling, through all the seasons.

The TR-01 shelving system is ideal for smaller warehouses with manual handling.
The basis of the system is uprights and shelves made from highgrade powder coated steel. These can be folded and stacked to save space.

Product Advantage:
A. Welded metal structure, strong and durable
B. Demountable, easy to assemble
C. Can be stacking 4high, folded to store and save space
D. Load capacity up to 1000kg
E. Improve product visibility
F. Four removable upright to save space

Specification:
Size: W60" XD60" XH60"
W1524 XD1524 XH1524 mm
Loading Capcity: 1000KG, 2200lbs.
Loading tire numbers: 32-40 peices
Stacking Capacity: 4-5 Layers
Folding and stacking design
Powder coating finishing
Optional: Forklift pocket
Optioanl: Wire mesh bottom
Optional color: Blue, Orange, red, yellow.

The passenger and light truck stacking rack can be used for stacked storage of all types of passenger and light truck tires. The 60"X60" deck is designed to hold 4or 5stacks of 7or 8tires, depending on tires diameter. For tires measuring 16" and under, 5stacks can be stored per pallet, and for tires measuring 17" and over, 4stacks. This is one of the most economical tire storage systems, particularly in terms of initial outlay. It is also the most popular storage system in the United States. In addition, this molular rack system can be used to meet anumber of other(stack rack) warehousing requirements.

Feature of Tire racking
Meterial		High quality hot rolled steel. Q235b (equivalent to S235JR according to DIN EN10025 and Gr. D according to ASTM A283M)
Surface treatmet:		Powder coated.
Size(LxWxH)		40" x40" x40" , 60" x60" x60" , 72" x72" x72
Thickness		2.0mm
Loading capibility (per layer)		800-1000kg (2200lb)
Stacked capacity		4 layers
Packing detial:		Bundled tightenly with plastic belts.
Delivery detial:		20 workdays after received the deposits.
