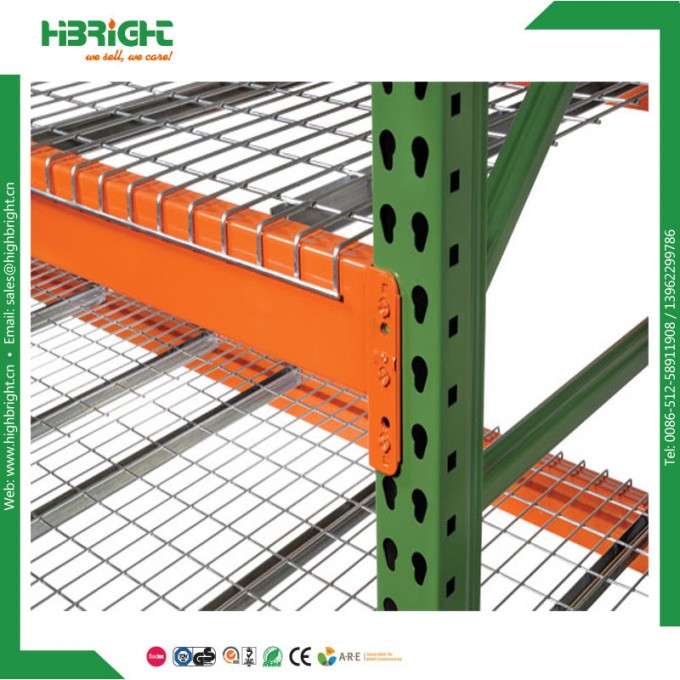

Heavy Duty American Style Teardrop Storage Warehouse Rack

Long span warehouse racking system

heavy duty wire span rack for warehouse


Product Description

1) Appropriate for picking heavy goods by pallet.
2) High strength and durability.
3) High pcision rolling components.
4) Easy for complete installation.
5) Araldite static powder coating.
6) Abundant accessories..
7) Every layer of the board can be adjusted freely;
8) Color and size can be adjusted according to your requirements.
9) The heavy-duty standing posts is good looking and anti-rust with fine powder-coating.
10) Different thickness, size, layers, and colors are available for you to choose

Beam Feature

4 holes 11"*2"*5" P shape beam,slotted connection&bolted connection. Beams can be adjusted every 2".

A, Hot rolled steel moulding, bearing evenly.
B, Various specification and load capacity to meet different storage requirements.
C, Beam hitch steel's teeth are designed to different direction; this not only makes the teeth for increased rigidity.
D, Connection between beams and pillars are performed by safety bolts and clips.
E, Optional accessory is nameplate holder.

Uprights feature

In clined beam has two type longer,one is used loosely for the upper of the rack, the shorter densely for the lower to improve the bearance and solidity.

A, Polyhedron with thirteen faces.
B, Pitch is 50 mm, beam is adjustable.
C, Triangle hole easily tightens to hitch steel and strengthens the load capacity of posts.

Bracings

the horizontal and diagonal bar on standing colunm is square tube,no C-shaped ,square tube is 30*50 ,30*30, and so on.

Support for metal box

Used for placing mesh box and metal container etc. with stacking feet, safe and reliable.

Wood shelf and support bar

The plywood, 20mm thick, is in the salience of knighthead. Each pallet has a pair of knighthead.

metal shelf

The steel material: cold rolling steel ,SPCC, DC01, ST12,Q195, the steel thickness ranges from 0.6mm to 1.2mm,

Safety locker

Locker, bolted,pin for making racks stability,more strong.

Protector/ barrier

Located at the sides or corners of shelving to be away from impact by forklift.

Pallet stopper

For pallet stop, speciully for fork lift in top oppration.

Row-spacer

Row-spcaer,to be two lines rack connected.

model	light storage rack ( mm)	middle storage rack	heavy storage rack	heavy storage rack	heavy storage rack
specification	1500*500*2000	2000*600*2000	2000*800*3000	2000*800*3000	2000*800*3000
size of upright	30*50	30*80	60*80	70*90	70*90
size of bunton	30*50	40*80	50*80	50*110	50*120
thickness(upright)	1.0	1.2	2.0	2.5	2.5
thinkness(borad)	0.5	0.5	1.0	1.0	without
thinkness bunton	1.0	1.2	2.0	2.5	2.5
capacity/level	150KG	300KG	1000KG	1500KG	2000KG
layer	4	4	3	3	3
unit price	48USD	77USD	155USD	205USD	199USD
upright price	6USD	9.5USD	29USD	37USD	37USD
cubic meter	0.21	0.39	0.62	0.71	0.51
weight	43.36KG	74.83KG	150.46KG	199.22KG	193.61KG

Benefits & Features:

· Knock-down components reduce freight costs.

· Flexibility in Design

· Easy to reconfigure or repair.

· Available in painted or galvanized finish


l 1.frame and Beam Material:Cold rolling steel SPCC DC01,ST12,Q195/Q235B

l 2,Beam adjustment:The beam levels are adjustable

l 3. Procedure: Moulding+ Acid cleaning/or Sand cleaning+ Phosphating+ Degrease+ Dryness+ Powder coat+ Polymerization

l 4.Finishing:Epoxy-Polyester Coating

l 5.racking color:many colors are available such as orange,blue and so on.
